Ruland Shaft Collar, Two Piece, Clamp, OD 54 mm OD, W 15 mm, Steel
- RS Stock No.:
- 614-388
- Mfr. Part No.:
- LVO-MSP-30-F
- Brand:
- Ruland
Subtotal (1 unit)*
£33.60
(exc. VAT)
£40.32
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £33.60 |
*price indicative
- RS Stock No.:
- 614-388
- Mfr. Part No.:
- LVO-MSP-30-F
- Brand:
- Ruland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Ruland | |
| Product Type | Shaft Collar | |
| Bore Size | 30 mm | |
| One/Two Piece | Two Piece | |
| Material | Steel | |
| Single/Double Wide | Single Wide | |
| Outside Diameter | 54 mm | |
| Fastening | Clamp | |
| Width | 15 mm | |
| Finish | Black Oxide | |
| Series | LVO-MSP | |
| Standards/Approvals | RoHs and Reach | |
| Bore Type | Clamping Lever | |
| Select all | ||
|---|---|---|
Brand Ruland | ||
Product Type Shaft Collar | ||
Bore Size 30 mm | ||
One/Two Piece Two Piece | ||
Material Steel | ||
Single/Double Wide Single Wide | ||
Outside Diameter 54 mm | ||
Fastening Clamp | ||
Width 15 mm | ||
Finish Black Oxide | ||
Series LVO-MSP | ||
Standards/Approvals RoHs and Reach | ||
Bore Type Clamping Lever | ||

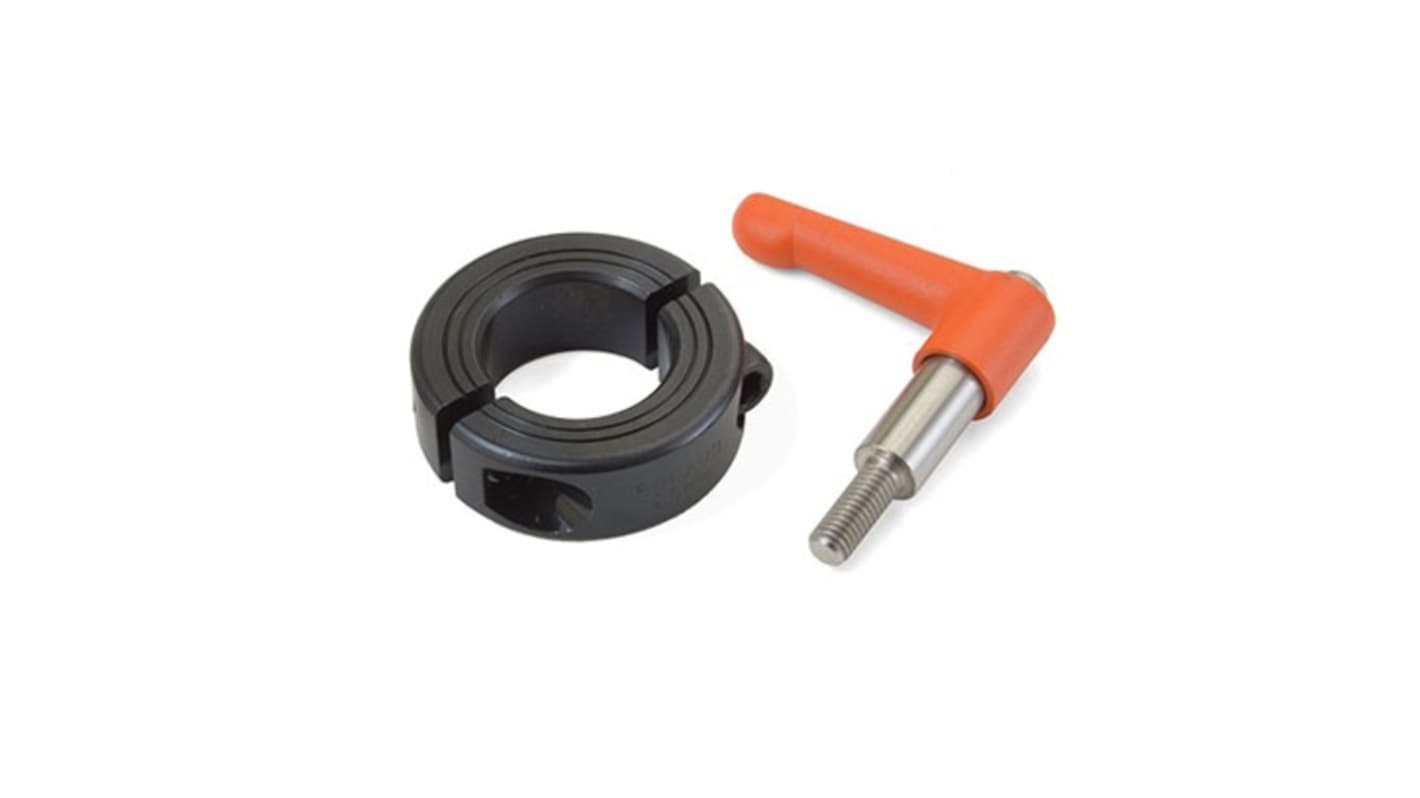

The Ruland Quick clamping shaft collar with clamping lever has a clamp style design that does not mar the shaft, is easy to remove, and is indefinitely adjustable. The threaded stud on the lever is used in place of standard collar hardware. Two-piece shafts collars can be assembled in-lace without the need to remove other components. Ruland mates halves throughout the manufacturing process for proper fit, alignment, and holding power.
Offers exceptional stiffness and stability for improved mechanical performance
Engineered for straightforward installation allowing for quicker project turnarounds
Designed to enhance system reliability under various operating conditions
Promotes efficient energy transfer contributing to lower operational costs
Compatible with numerous applications providing versatile solutions for engineers
Constructed with high quality materials to ensure long lasting durability
