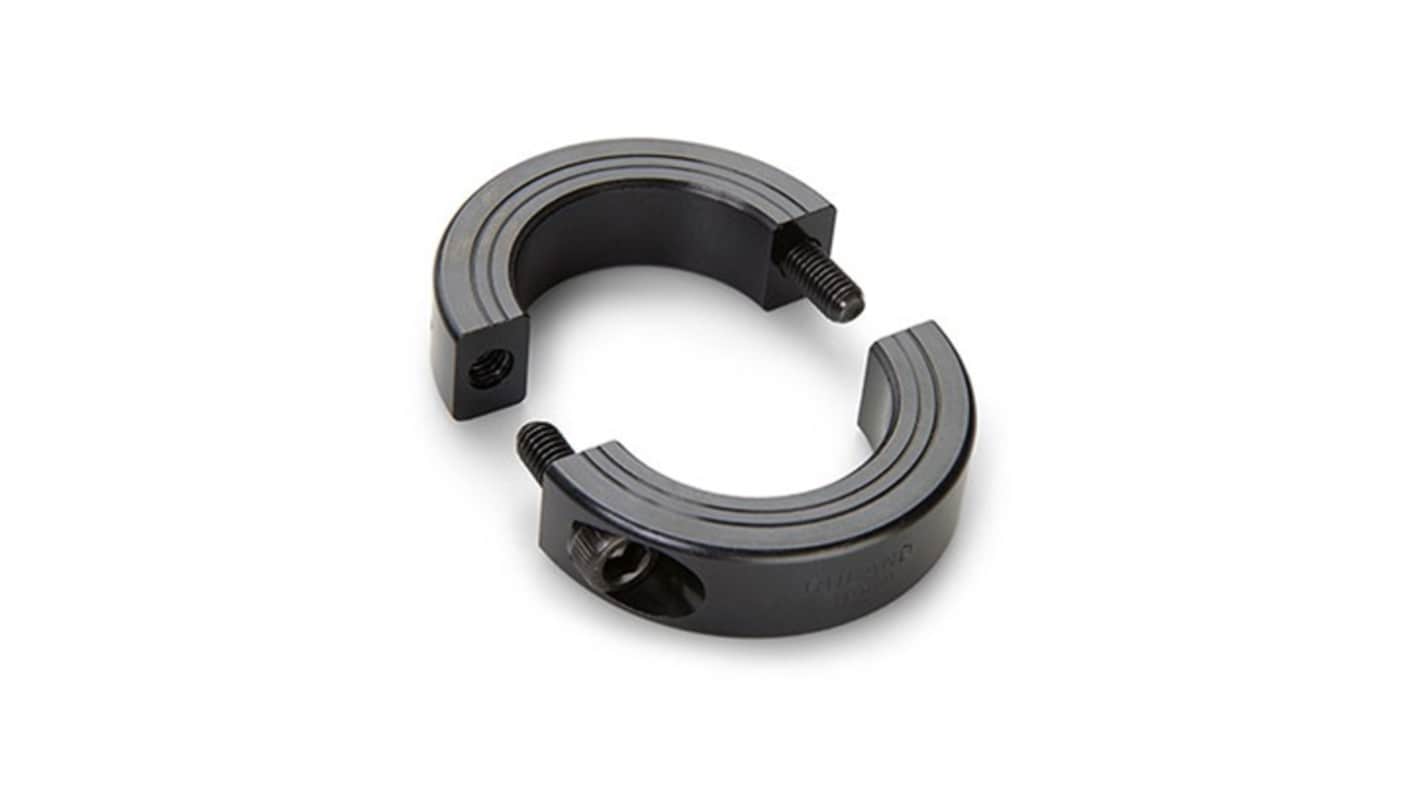

Ruland Shaft Collar, Two Piece, Clamp, OD 30 mm OD, W 11 mm, Steel
- RS Stock No.:
- 614-171
- Mfr. Part No.:
- MSPB-13-F
- Brand:
- Ruland
Subtotal (1 unit)*
£12.09
(exc. VAT)
£14.51
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 10 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £12.09 |
*price indicative
- RS Stock No.:
- 614-171
- Mfr. Part No.:
- MSPB-13-F
- Brand:
- Ruland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Ruland | |
| Product Type | Shaft Collar | |
| Bore Size | 13 mm | |
| One/Two Piece | Two Piece | |
| Material | Steel | |
| Single/Double Wide | Double Wide | |
| Outside Diameter | 30 mm | |
| Fastening | Clamp | |
| Width | 11 mm | |
| Finish | Black Oxide | |
| Series | MSPB | |
| Bore Type | Clamp Style | |
| Standards/Approvals | DIN 91 1.9, RoHs and Reach | |
| Select all | ||
|---|---|---|
Brand Ruland | ||
Product Type Shaft Collar | ||
Bore Size 13 mm | ||
One/Two Piece Two Piece | ||
Material Steel | ||
Single/Double Wide Double Wide | ||
Outside Diameter 30 mm | ||
Fastening Clamp | ||
Width 11 mm | ||
Finish Black Oxide | ||
Series MSPB | ||
Bore Type Clamp Style | ||
Standards/Approvals DIN 91 1.9, RoHs and Reach | ||
The Ruland Shaft collar has a balanced design with opposing screws for use in high RPM applications such as those found in motors and gearboxes. The clamp style design does not mar the shaft, is easy to remove, and is indefinitely adjustable. It is commonly used for guiding, spacing, stopping, mounting, and component alignment. Halves are mated throughout the manufacturing process for proper fit and alignment. Forged screws test beyond DIN 912 12.9 standards to ensure maximum holding power.
Designed to maintain precise alignment in mechanical systems
Manufactured using high grade material for enhanced lasting performance
Facilitates straightforward installation across various applications
Engineered to minimise friction thereby extending product lifespan
Offers reliable support in high demand environments
Compatible with a variety of existing systems for seamless integration
Meets rigorous quality standards for optimal safety and reliability
Aimed at improving operational efficiency and reducing downtime
