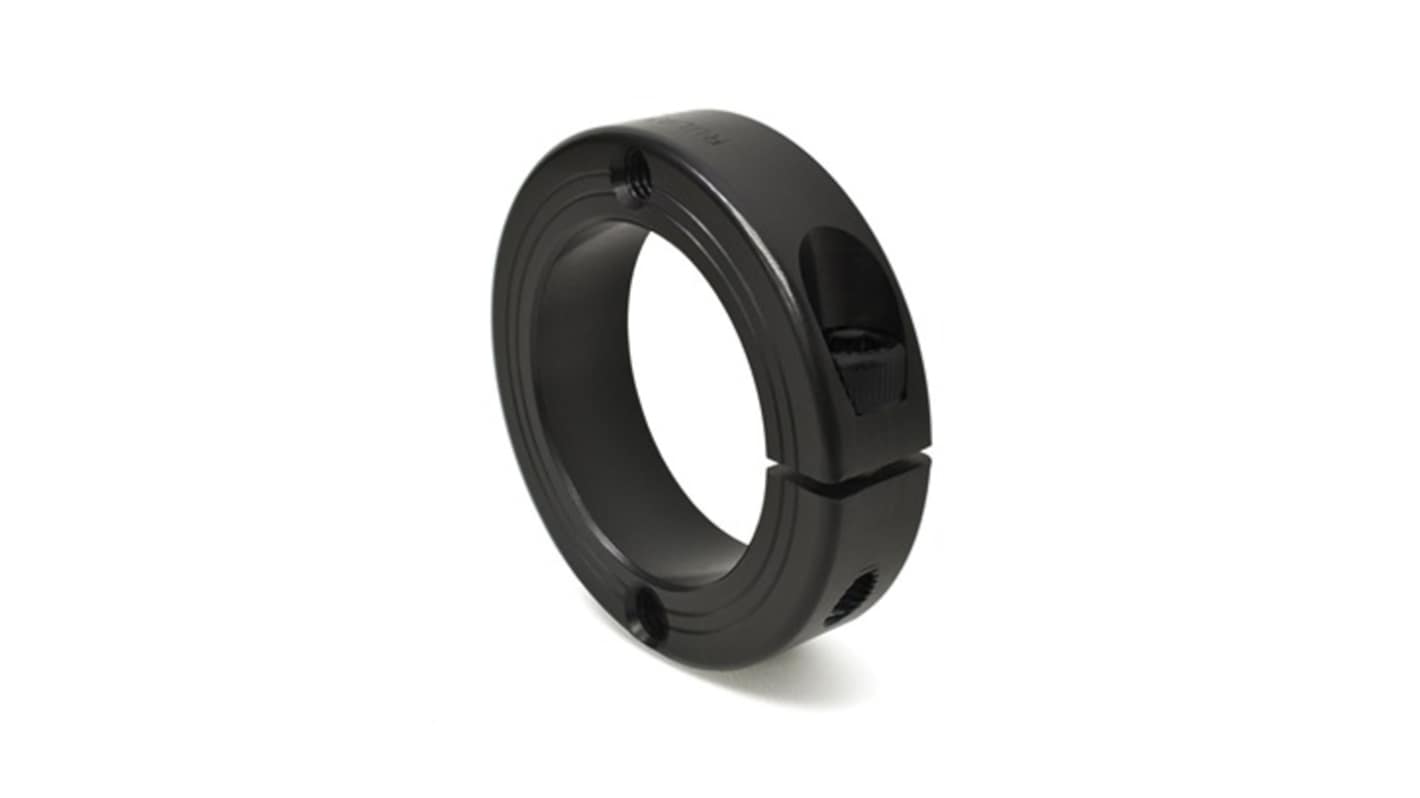

Ruland Collar, One Piece, Clamp Screw, Bore 21mm, OD 78mm, W 19mm, 1215 Lead-Free Carbon Steel

View all Shaft Collars

Subtotal (1 unit)*

£75.94

(exc. VAT)

£91.13

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 28 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£75.94

*price indicative

RS Stock No.:
604-200
Mfr. Part No.:
FHT-MCL-48-F
Brand:
Ruland
Find similar products by selecting one or more attributes.
Select all

Brand

Ruland

Shaft Diameter

21mm

One/Two Piece

One Piece

Material

1215 Lead-Free Carbon Steel

Single/Double Wide

Single

Outside Diameter

78mm

Fastening

Clamp Screw

Width

19mm

COO (Country of Origin):
US
The Ruland One piece shaft collar has tapped holes for mounting shaft collars to sprockets, pulleys, metallic plates, or other components. Tapped holes allow for a secure connection between the shaft collar and mated component. The clamp style design does not mar the shaft, is easy to remove, and is indefinitely adjustable. Equipment manufacturers benefit from the tightly controlled face to bore perpendicularity (TIR of ≤ .05mm). Perpendicularity is critical for alignment when the shaft collar is used as a load bearing face, mechanical stop, or for mounting components such as gears or bearings.

RoHS3 and REACH compliant
Forged screws test beyond DIN 912 12.9 standards
Machined from solid bar stock to a fine burr free finish
