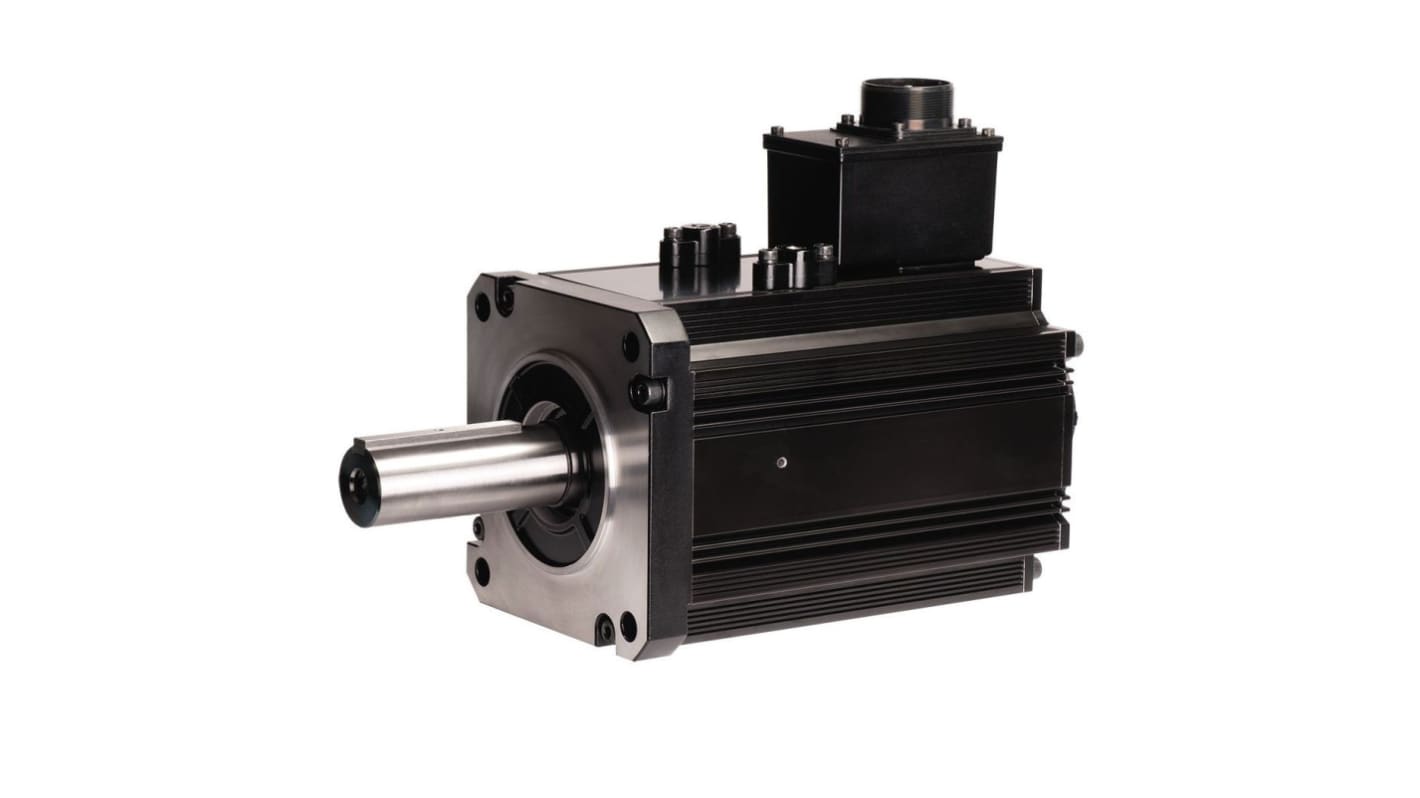

Omron 400V 7.5 kW Servo Motor, 1500rpm, 47.8 Nm Max Output Torque, 42 mm Shaft Diameter
- RS Stock No.:
- 215-7641
- Mfr. Part No.:
- R88M-K7K515C-BOS2
- Brand:
- Omron
Subtotal (1 unit)*
£6,085.25
(exc. VAT)
£7,302.30
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 10 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £6,085.25 |
*price indicative
- RS Stock No.:
- 215-7641
- Mfr. Part No.:
- R88M-K7K515C-BOS2
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Product Type | Servo Motor | |
| Maximum Output Torque | 47.8Nm | |
| Supply Voltage | 400V | |
| Sub Type | AC Servo Motor | |
| Output Speed | 1500rpm | |
| Power Rating | 7.5kW | |
| Stall Torque | 119Nm | |
| Shaft Diameter | 42mm | |
| Mount Type | Flange | |
| Length | 450mm | |
| Shaft Length | 109.8mm | |
| Width | 176mm | |
| Depth | 272mm | |
| Current Rating | 22A | |
| Series | Accurax G5 | |
| Standards/Approvals | No | |
| Rotor Inertia | 107kg.m² | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Product Type Servo Motor | ||
Maximum Output Torque 47.8Nm | ||
Supply Voltage 400V | ||
Sub Type AC Servo Motor | ||
Output Speed 1500rpm | ||
Power Rating 7.5kW | ||
Stall Torque 119Nm | ||
Shaft Diameter 42mm | ||
Mount Type Flange | ||
Length 450mm | ||
Shaft Length 109.8mm | ||
Width 176mm | ||
Depth 272mm | ||
Current Rating 22A | ||
Series Accurax G5 | ||
Standards/Approvals No | ||
Rotor Inertia 107kg.m² | ||
The Omron G5 series AC servo motor ultra-light and compact size motor has standard and high inertia. It has low speed ripple and low torque ripple due to low torque cogging. It has high resolution serial encoder provided by 20 bits encoder with IP67 protection. It has rated output of 7.5 kW and rated speed 1500 rpm.
Rated torque 47.8 Nm
Rated speed 1500 Rpm
