MOXA Device server, 16 Ethernet Port, 16 Serial Port, RS232, RS422, RS485 Interface, 921.6kbps Baud Rate
- RS Stock No.:
- 255-2638
- Distrelec Article No.:
- 125-73-583
- Mfr. Part No.:
- NPort 6650-16
- Brand:
- MOXA
Subtotal (1 unit)*
£1,409.74
(exc. VAT)
£1,691.69
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 5 unit(s) shipping from 06 October 2025
- Plus 4 unit(s) shipping from 20 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £1,409.74 |
*price indicative
- RS Stock No.:
- 255-2638
- Distrelec Article No.:
- 125-73-583
- Mfr. Part No.:
- NPort 6650-16
- Brand:
- MOXA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | MOXA | |
Series | NPort | |
Interface | RS232, RS422, RS485 | |
Number of Serial Ports | 16 | |
Number of Ethernet Ports | 16 | |
Maximum Baud Rate | 921.6kbps | |
Select all | ||
---|---|---|
Brand MOXA | ||
Series NPort | ||
Interface RS232, RS422, RS485 | ||
Number of Serial Ports 16 | ||
Number of Ethernet Ports 16 | ||
Maximum Baud Rate 921.6kbps | ||
- COO (Country of Origin):
- TW

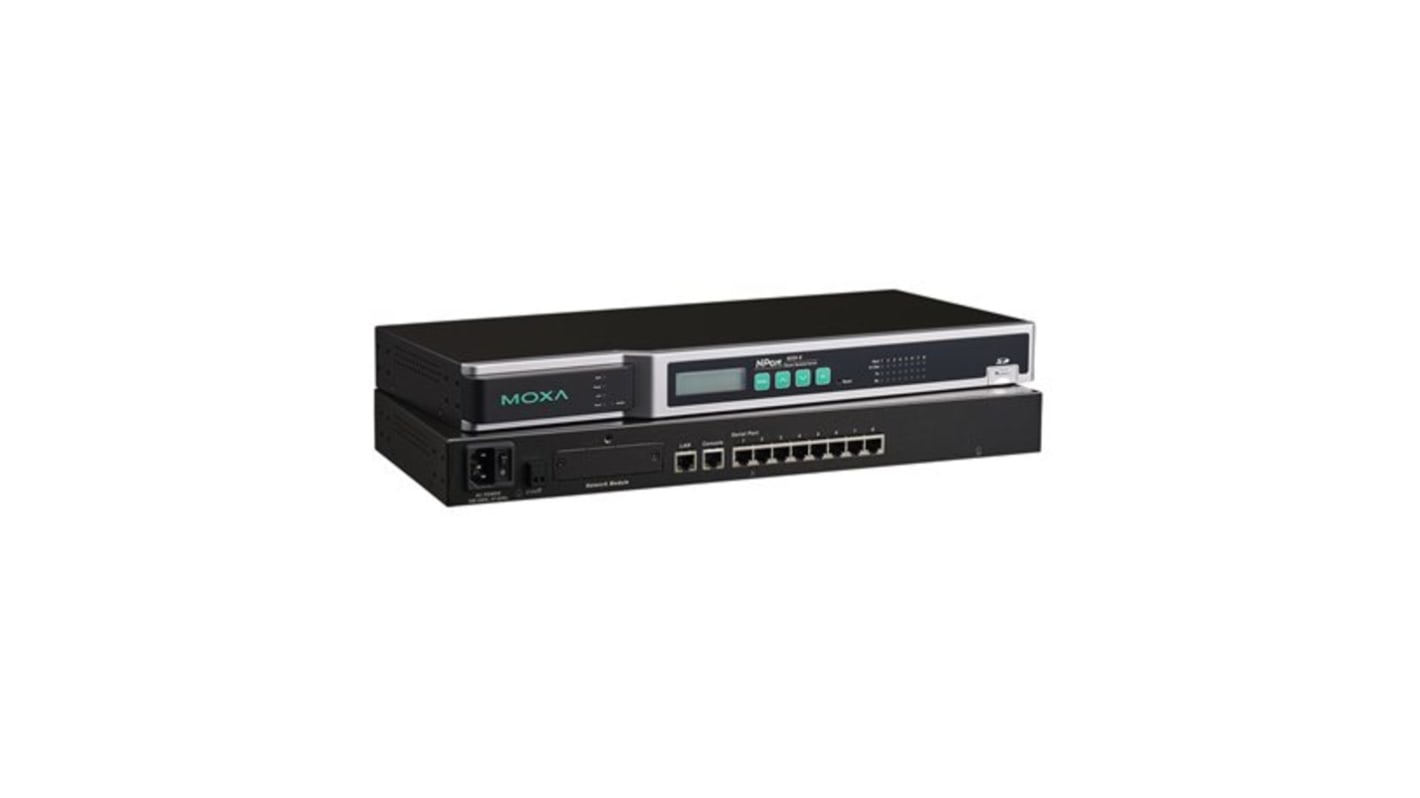

The Moxa NPort 6000 is a terminal server that uses the SSL and SSH protocols to transmit encrypted serial data over Ethernet. Up to 32 serial devices of any type can be connected to the NPort 6000, using the same IP address. The Ethernet port can be configured for a normal or secure TCP/IP connection. The NPort 6000 secure device servers are the right choice for applications that use large numbers of serial devices packed into a small space.
LCD panel for easy IP address configuration
Nonstandard baudrates supported with high precision
Port buffers for storing serial data when the Ethernet is offline
Nonstandard baudrates supported with high precision
Port buffers for storing serial data when the Ethernet is offline
