MOXA Serial Device Server 8, 921.6 kbps Baud Rate

View all Serial Device Servers

Subtotal (1 unit)*

£880.67

(exc. VAT)

£1,056.80

(inc. VAT)

Add to Basket
Select or type quantity
Orders below £50.00 (exc. VAT) cost £6.95.
In Stock
  • 5 unit(s) ready to ship
  • Plus 86 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£880.67

*price indicative

RS Stock No.:
255-2013
Distrelec Article No.:
125-74-271
Mfr. Part No.:
NPort 5610-8-DT
Brand:
MOXA
Find similar products by selecting one or more attributes.
Select all

Brand

MOXA

Product Type

Serial Device Server

Accessory Type

Server

Nominal Supply Voltage

12 to 48 V dc

Operating System

Linux, Android 3.1, Windows XP, Windows 2008 R2/2012/2012 R2/2016/2019-x64, Windows, Windows 95/98/ME/NT/2000

Number of Ports

8

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

75°C

Connection Port

Serial Interface Connector 8 Pin RJ45, Ethernet 10/100 Base T(X), DB9 Male

Standards/Approvals

Green Product RoHS, EMI CISPR 32, UL 60950-1, Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000-4-11, EMS IEC 61000-4-2 ESD: Contact: 6 kV, Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV, IEC 62368-1 Declaration, FCC Part 15B Class A, Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 2 kV, WEEE, Signal: 0.5 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m, CRoHS, EMC EN 55032/35

Maximum Baud Rate

921.6kbps

COO (Country of Origin):
TW

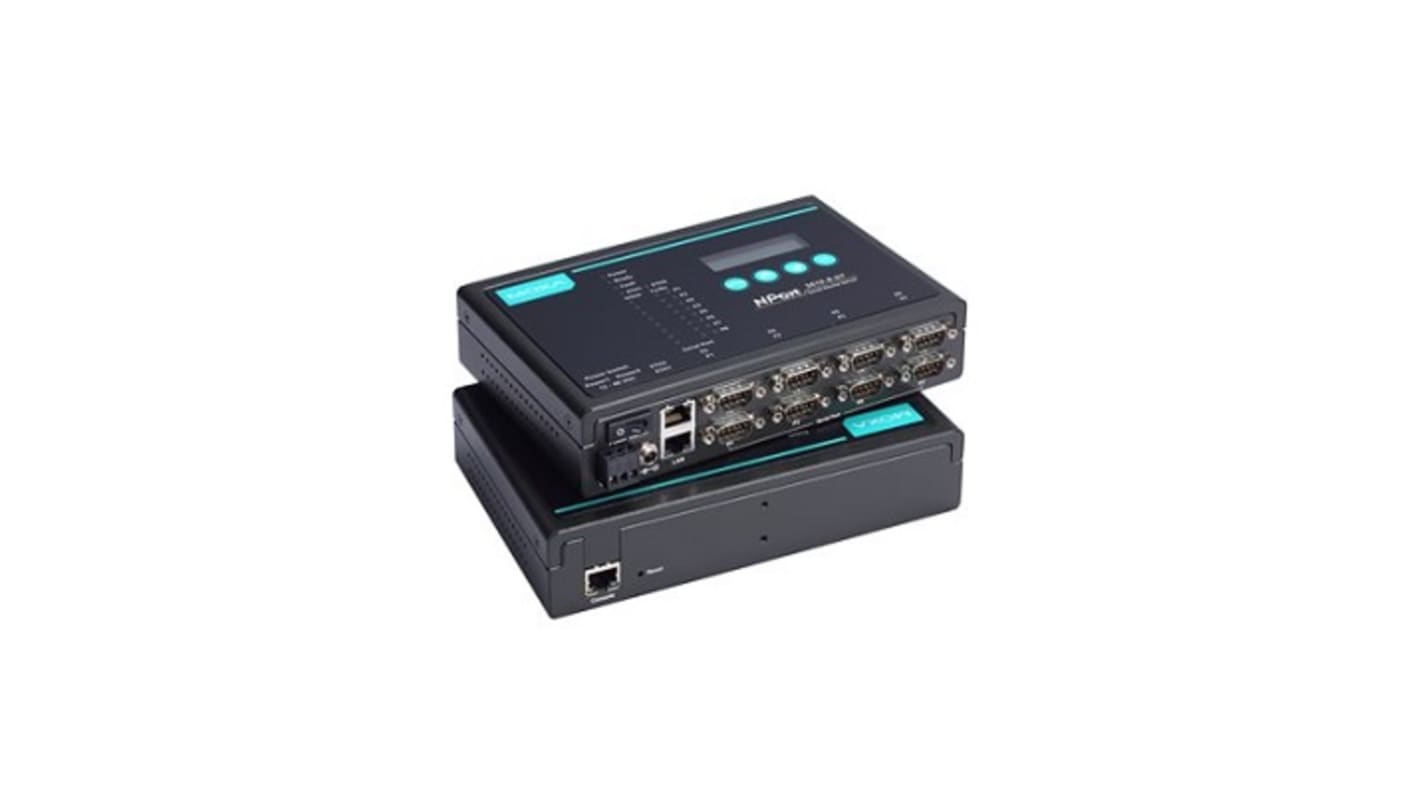

The Moxa Europe NPort device servers can conveniently and transparently connect 8 serial devices to an Ethernet network, allowing you to network your existing serial devices with only basic configuration. You can both centralize management of your serial devices and distribute management hosts over the network. Since the NPort 5600-8-DT device servers have a smaller form factor compared to our 19-inch models, they are a great choice for applications that need additional serial ports, but for which mounting rails are not available.

8 serial ports supporting RS-232/422/485

Compact desktop design

Easy IP address configuration with LCD panel

Configure by Telnet, web browser, or Windows utility

Socket modes: TCP server, TCP client, UDP, Real COM

SNMP MIB-II for network management

10/100M auto-sensing Ethernet
