MOXA 4 Port PC, 104 bus 40 Pin Box Header RS232 Serial Board
- RS Stock No.:
- 634-970
- Mfr. Part No.:
- CA-104-T
- Brand:
- MOXA
Subtotal (1 unit)*
£170.14
(exc. VAT)
£204.17
(inc. VAT)
Add 1 unit to get free delivery
Stock information currently inaccessible
Units | Per unit |
|---|---|
| 1 + | £170.14 |
*price indicative
- RS Stock No.:
- 634-970
- Mfr. Part No.:
- CA-104-T
- Brand:
- MOXA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MOXA | |
| Bus Type | PC, 104 bus | |
| Product Type | Serial Board | |
| Communication Interface | RS232 | |
| Number of Ports | 4 | |
| Operating System | Windows XP, Linux, Windows 95/98/ME/NT/2000, Windows 2008 R2/2012/2012 R2/2016/2019, FreeBSD 4, DOS, QNX 4, Windows | |
| Connection Port | 40 Pin Box Header | |
| Maximum Baud Rate | 921.6kbps | |
| FIFO Size | 64bit | |
| Standards/Approvals | CRoHS, IEC 61000-4-4, IEC 61000-4-8, IEC 61000-4-6, Telcordia (Bellcore), IEC 60068-2-6, RoHS, GB, FCC Part 15B Class A, IEC 61000-4-2, IEC 60068-2-3, CISPR 32, IEC 60068-2-2, IEC 61000-4-5, EN 55032/24, WEEE, IEC 60068-2-14, IEC 60068-2-1, IEC 61000-4-3 | |
| Select all | ||
|---|---|---|
Brand MOXA | ||
Bus Type PC, 104 bus | ||
Product Type Serial Board | ||
Communication Interface RS232 | ||
Number of Ports 4 | ||
Operating System Windows XP, Linux, Windows 95/98/ME/NT/2000, Windows 2008 R2/2012/2012 R2/2016/2019, FreeBSD 4, DOS, QNX 4, Windows | ||
Connection Port 40 Pin Box Header | ||
Maximum Baud Rate 921.6kbps | ||
FIFO Size 64bit | ||
Standards/Approvals CRoHS, IEC 61000-4-4, IEC 61000-4-8, IEC 61000-4-6, Telcordia (Bellcore), IEC 60068-2-6, RoHS, GB, FCC Part 15B Class A, IEC 61000-4-2, IEC 60068-2-3, CISPR 32, IEC 60068-2-2, IEC 61000-4-5, EN 55032/24, WEEE, IEC 60068-2-14, IEC 60068-2-1, IEC 61000-4-3 | ||
- COO (Country of Origin):
- TW

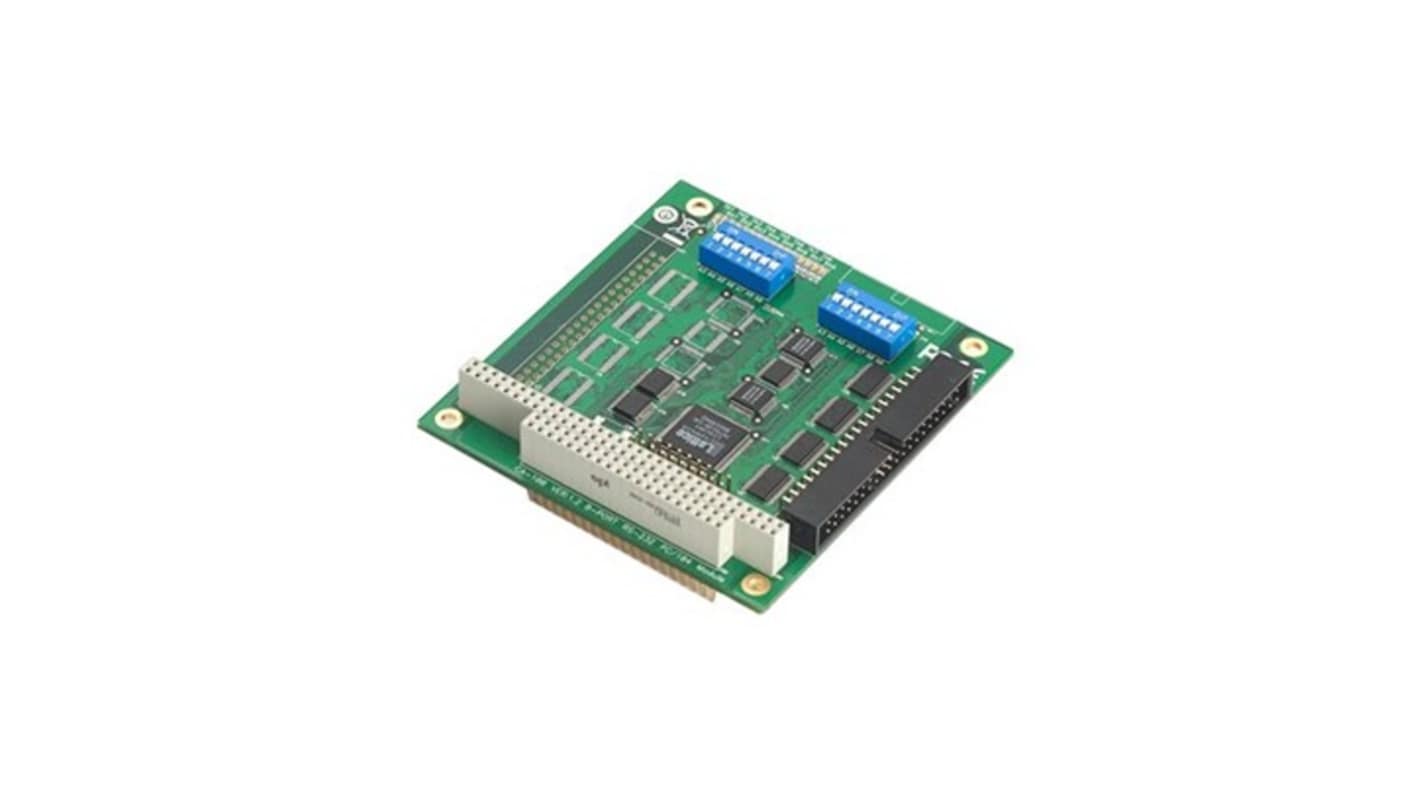

The Moxa Europe Modules are reliable high-performance multiport serial communication solutions featuring 4 RS-232 ports, designed for use with PC/104 CPU boards that support the PC/104 expansion interface. Optional DB9 and DB25 connection cables are available for easy integration with serial devices. With versatile driver support, these modules are suitable for a wide range of industrial and embedded applications.
921.6 kbps maximum baud rate for fast data transmission
On-chip software flow control
IRQ and I/O settings are jumper and DIP switch selectable
Onboard Tx and Rx LED indicators for each port
Supports Windows CE 5.0/6.0 and Windows XP Embedded operating systems
