Infineon 3D Magnetic Sensor 2 Go Evaluation Kit 3D Magnetic Sensor Evaluation Board for Magnetic Sensor Adapter
- RS Stock No.:
- 273-2091
- Mfr. Part No.:
- TLV493DA1B6MS2GOTOBO1
- Brand:
- Infineon
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 273-2091
- Mfr. Part No.:
- TLV493DA1B6MS2GOTOBO1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Infineon | |
Sensor Technology | 3D Magnetic Sensor | |
Featured Device | Magnetic Sensor | |
For Use With | Adapter | |
Kit Classification | Evaluation Board | |
Kit Name | 3D Magnetic Sensor 2 Go Evaluation Kit | |
Select all | ||
---|---|---|
Brand Infineon | ||
Sensor Technology 3D Magnetic Sensor | ||
Featured Device Magnetic Sensor | ||
For Use With Adapter | ||
Kit Classification Evaluation Board | ||
Kit Name 3D Magnetic Sensor 2 Go Evaluation Kit | ||
XENSIV™ - TLV493D-A1B6 2GO kit for 3D magnetic field sensing with 3D magnetic Hall sensors – plug and play

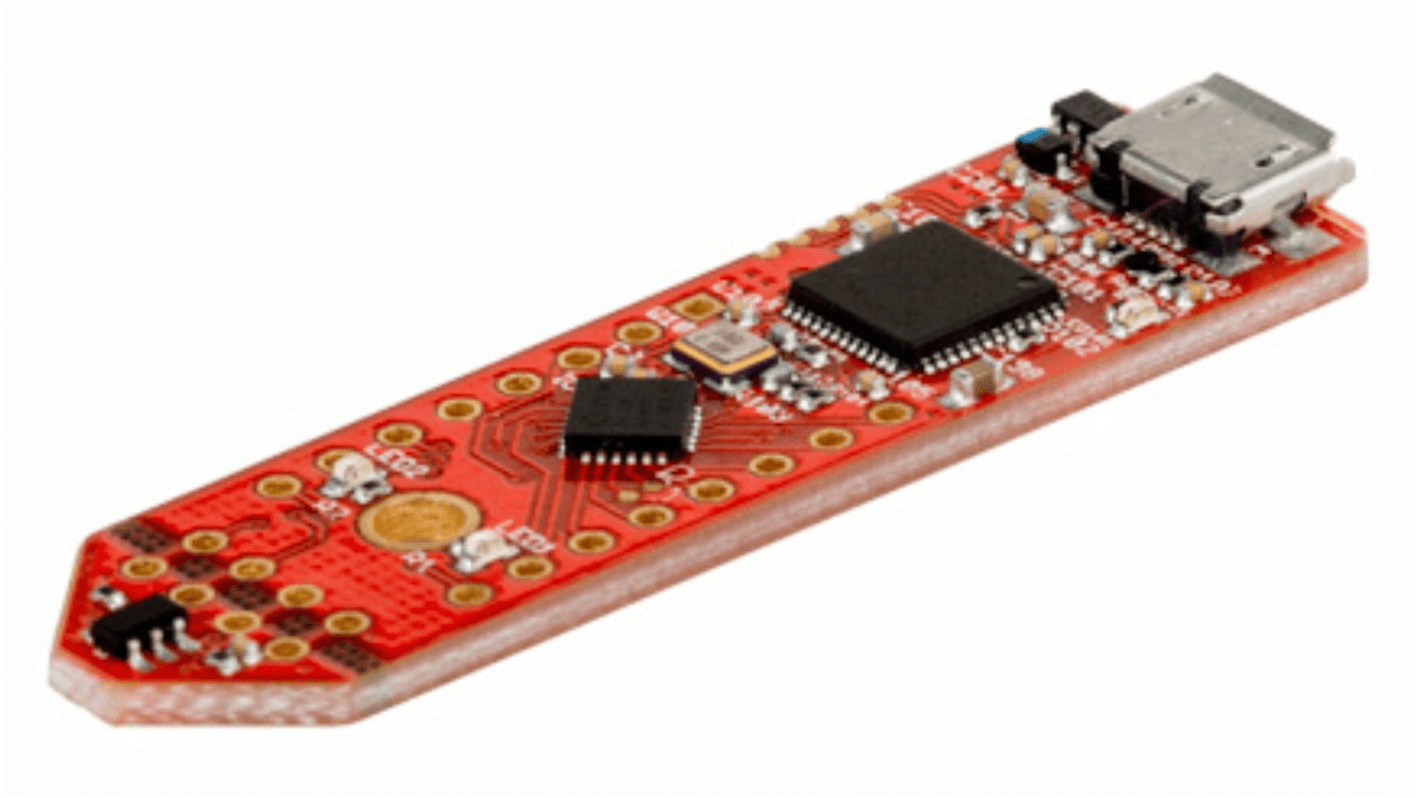

The Infineon TLV493D-A1B6 3D magnetic sensor 2GO kit is a budget-priced evaluation board equipped with a magnetic sensor for three dimensional measurement combined with an ARM® Cortex™-M0 CPU. It has a complete set of on-board devices, including an on-board debugger. In addition Infineon is offering so called add-on components which are adapters for the 3D Magnetic Sensor 2GO kits. Theses add ons (e.g. joysticks, rotation knobs, linear slider etc.) comprise a magnet and can be directly mounted onto the 2GO kits. Together with a dedicated GUI its the perfect tool for fast and easy plug-and-play systems. Build and evaluate your own application and gadget with the 3D magnetic sensor 2GO kit.
We offer three different derivatives of 3D Magnetic Sensor 2GO kits:
•TLE493D-P2B6: automotive predefined variant
•TLE493D-W2B6: automotive predefined variant with wake up functionality (supports up to ASIL B)
•TLV493D-A1B6: consumer predefined variant
•TLE493D-W2B6: automotive predefined variant with wake up functionality (supports up to ASIL B)
•TLV493D-A1B6: consumer predefined variant
The feature set of all variants comprises a small 6-pin package, low power consumption (ultra-low power mode) as well as a standard 2-wire digital I²C interface. The TLx493D family can be used in applications, replacing potentiometer and optical solutions. The sensor family is offering high temperature stability of the magnetic threshold leading to smaller, more accurate and more robust system designs.
Summary of Features
•TLV493D-A1B6 (three dimensional magnetic sensor)
•XMC1100 (ARM® Cortex™-M0 based)
•On-board J-Link Lite Debugger (realized with XMC4200 microcontroller)
•Power over USB (micro USB), ESD and reverse current protection
•XMC1100 (ARM® Cortex™-M0 based)
•On-board J-Link Lite Debugger (realized with XMC4200 microcontroller)
•Power over USB (micro USB), ESD and reverse current protection
Potential Applications
•industrial
•consumer
•consumer
