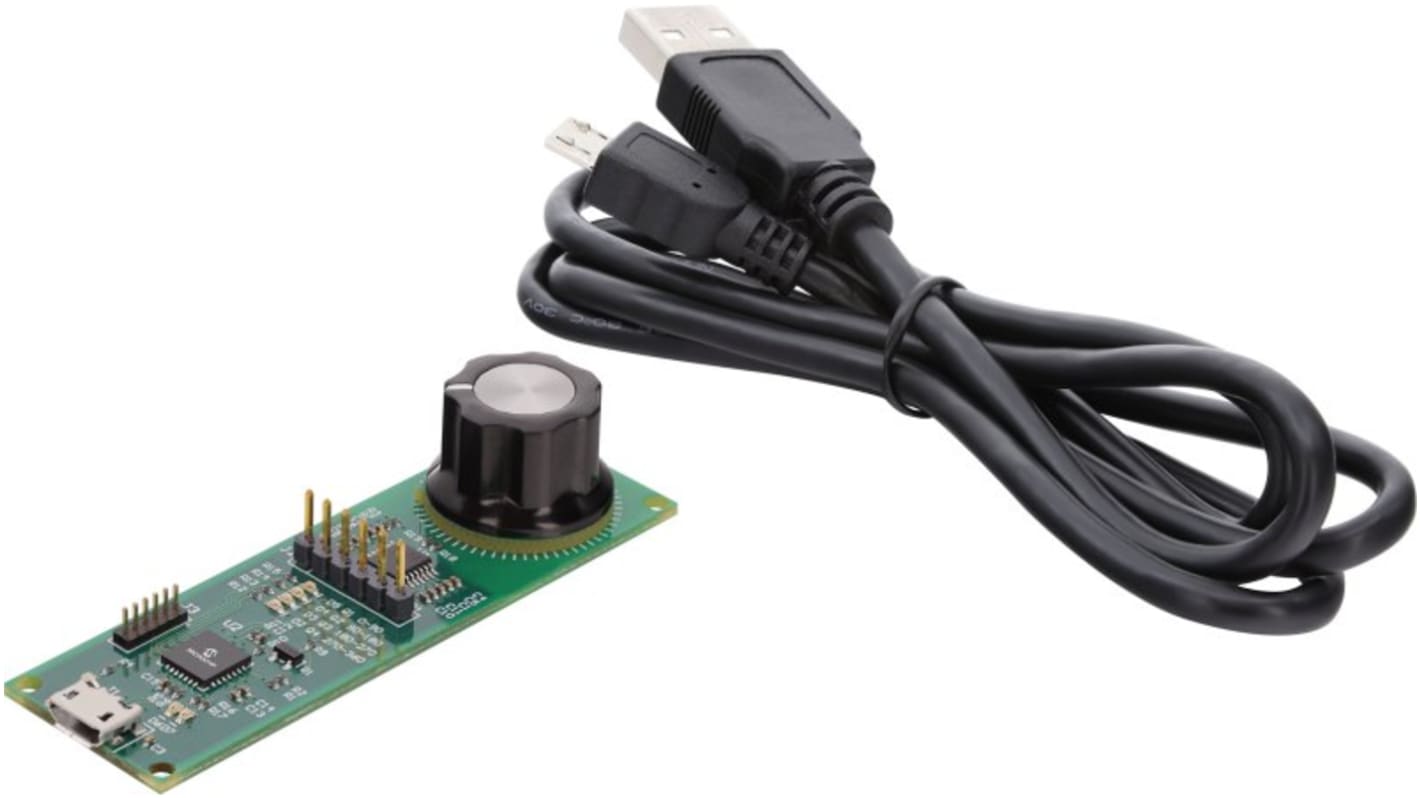

The Microchip rotary Nano evaluation kit accelerates your sensor development by combining a 180 degree rotary position sensor with an PIC18F microcontroller. This kit has many of the features of our PRO kits but in a smaller footprint. The rotary Nano kit along with our free IPCE softwares allow you to evaluate, auto-calibrate, and customize this sensor to your application needs. You can then repurpose the PIC18F to be used in your end application, further accelerating your product development. To get started, plug the LX3302A rotary Nano kit into your computer, and the IPCE software will auto recognize your device. If you go to the demo tab in the IPCE software, you can see and interact directly with the Nano sensor. Watch our family of videos below for detailed instructions on how to measure, calibrate, and verify the sensor.

180 Degree Measurement Range Rotary Inductive Sensor
Complete Plug and Play Kit with Sensor and Programmer Combined
Fully IPCE Software Compatible
MPLAB Customizable with PICkit
