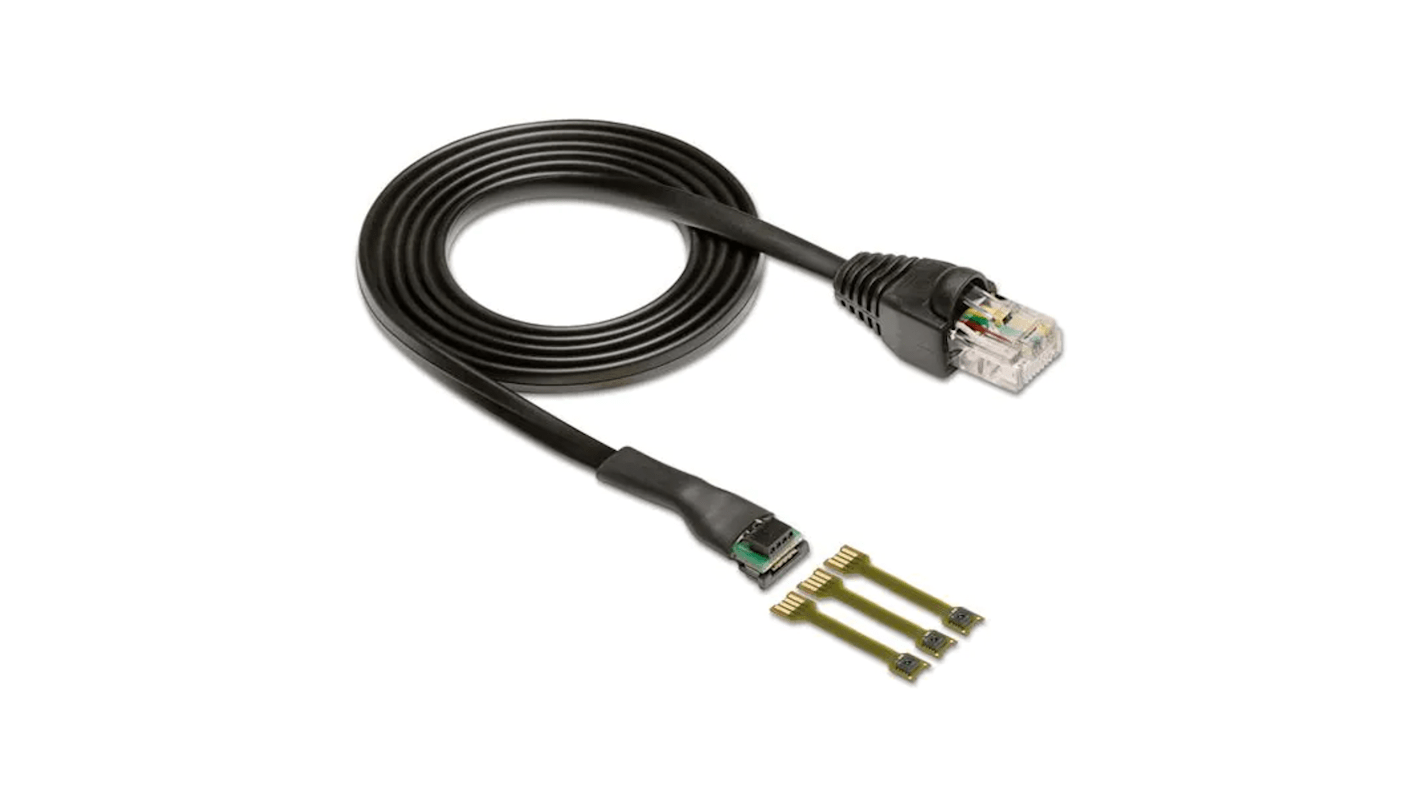

Sensirion Eval Kit for SHT40I-AD1B Humidity & Temperature Temperature & Humidity Sensor Evaluation Kit for
- RS Stock No.:
- 236-5203
- Mfr. Part No.:
- SEK-SHT40I-AD1B-Sensors
- Brand:
- Sensirion
8 In stock - FREE next working day delivery available
Added
Price Each
£32.89
(exc. VAT)
£39.47
(inc. VAT)
| Units | Per unit |
| 1 - 1 | £32.89 |
| 2 - 4 | £32.00 |
| 5 - 9 | £31.16 |
| 10 - 24 | £30.36 |
| 25 + | £29.60 |
- RS Stock No.:
- 236-5203
- Mfr. Part No.:
- SEK-SHT40I-AD1B-Sensors
- Brand:
- Sensirion
Legislation and Compliance
Product Details
The Sensirion SHT4xI series is an industrial-grade digital sensor platform for measuring relative humidity and temperature with different accuracy classes. It meets demanding ESD and robustness requirements of industrial applications. The sensors can be interfaced via several preconfigured I2C addresses with I2C fast mode plus and CRC checksum.
Relative humidity accuracy of up to ±2 %RH
Temperature accuracy of up to ±0.2 °C
Supply voltage of 2.3 V to 5.5 V
Average current of 21 μA
I2C fast mode plus, CRC checksum
Operating range of 0 to 100 %RH, -40to125 °C
Fully functional in condensing environment
Temperature accuracy of up to ±0.2 °C
Supply voltage of 2.3 V to 5.5 V
Average current of 21 μA
I2C fast mode plus, CRC checksum
Operating range of 0 to 100 %RH, -40to125 °C
Fully functional in condensing environment
Specifications
Attribute | Value |
|---|---|
| Sensor Technology | Temperature & Humidity Sensor |
| Featured Device | SEK-SHT40I-AD1B-Sensors |
| For Use With | SHT40I-AD1B |
| Kit Classification | Evaluation Kit |
| Kit Name | Eval Kit for SHT40I-AD1B Humidity & Temperature |
| Communication Protocol | I2C |
