Vishay VCNL Sensor Board VCNL4020 Sensors
- RS Stock No.:
- 174-2517
- Mfr. Part No.:
- VCNL4020-SB
- Brand:
- Vishay
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 174-2517
- Mfr. Part No.:
- VCNL4020-SB
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| For Use With | VCNL4020 Sensors | |
| Kit Classification | Sensor Board | |
| Kit Name | VCNL | |
Select all | ||
|---|---|---|
Brand Vishay | ||
For Use With VCNL4020 Sensors | ||
Kit Classification Sensor Board | ||
Kit Name VCNL | ||
- COO (Country of Origin):
- DE

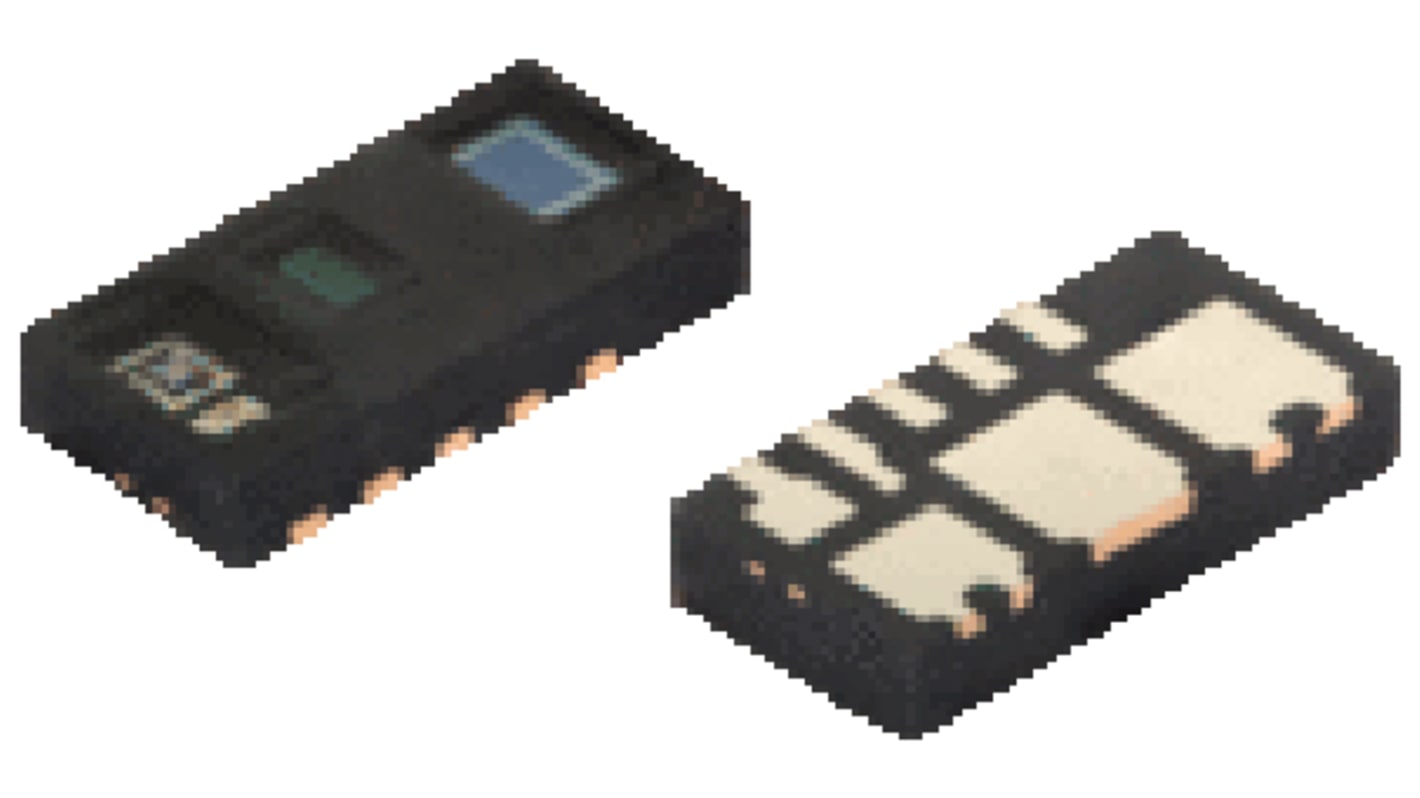

The VCNL4020 is a fully integrated proximity and ambient light sensor. Fully integrated means that the infrared emitter is included in the package. It has 16 bit resolution. It includes a signal processing IC and features standard I2C communication interface. It features an interrupt function.
Package type: surface-mount
Dimensions (L x W x H in mm): 4.90 x 2.40 x 0.83
Integrated modules: infrared emitter (IRED), ambient light sensor (ALS-PD), proximity sensor (PD), and signal conditioning IC
Interrupt function
Supply voltage range VDD: 2.5 V to 3.6 V
Supply voltage range IR anode: 2.5 V to 5 V
Communication via I2C interface I2C bus H-level range: 1.7 V to 5 V
Dimensions (L x W x H in mm): 4.90 x 2.40 x 0.83
Integrated modules: infrared emitter (IRED), ambient light sensor (ALS-PD), proximity sensor (PD), and signal conditioning IC
Interrupt function
Supply voltage range VDD: 2.5 V to 3.6 V
Supply voltage range IR anode: 2.5 V to 5 V
Communication via I2C interface I2C bus H-level range: 1.7 V to 5 V
