MikroElektronika Accel2 Click Accelerometer Sensor mikroBus Click Board for LIS3DSH

View all Sensor Development Tools
Bulk discount available

Subtotal (1 unit)*

£16.57

(exc. VAT)

£19.88

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 5 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£16.57
5 - 9£16.15
10 +£15.75

*price indicative

RS Stock No.:
136-0742
Mfr. Part No.:
MIKROE-1905
Brand:
MikroElektronika
Find similar products by selecting one or more attributes.
Select all

Brand

MikroElektronika

Sensor Technology

Accelerometer Sensor

Featured Device

LIS3DSH

Kit Classification

mikroBus Click Board

Kit Name

Accel2 Click

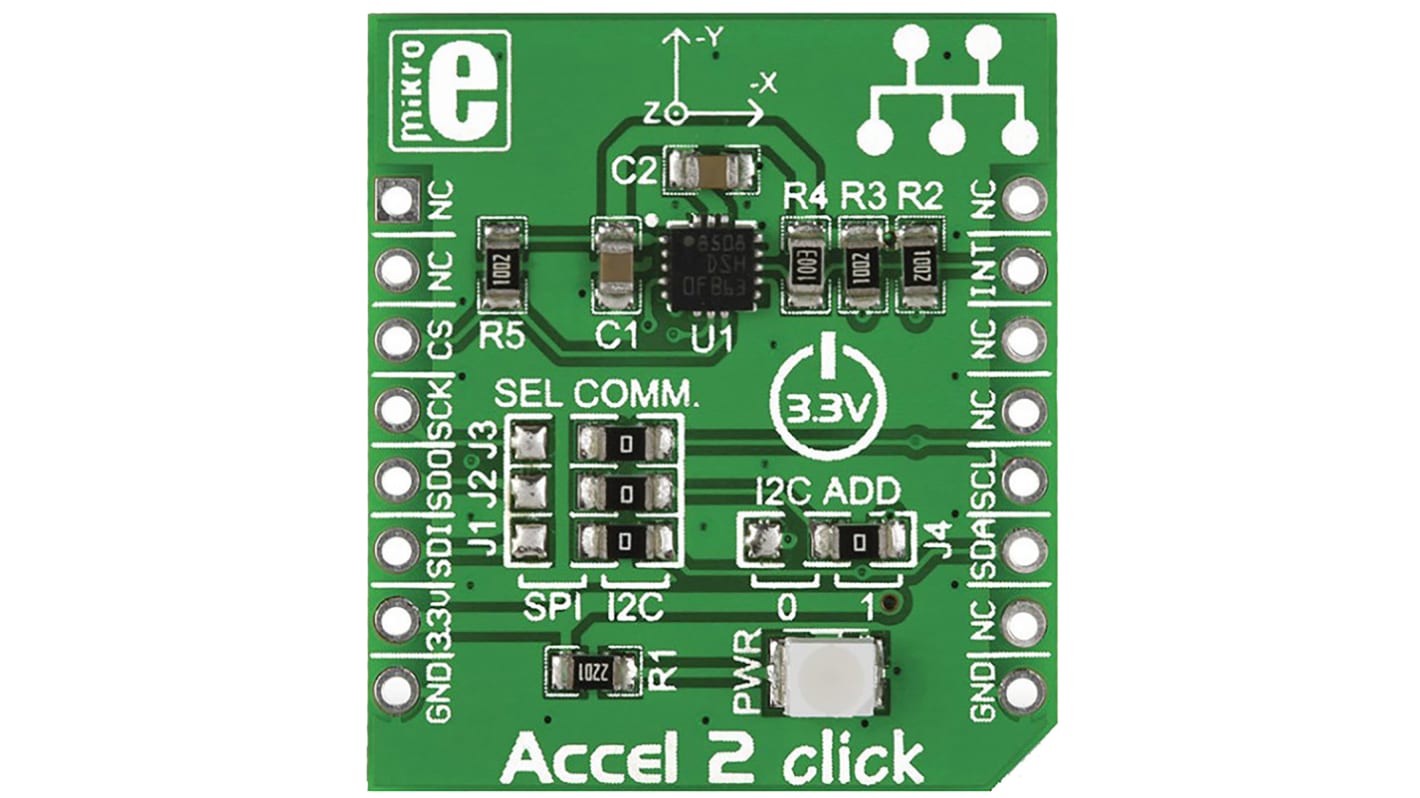

Accel 2 click mikroBUS™


Accel 2 click mikroBUS™ is a mikroBUS add-on board with LIS3DSH IC module by ST. The module is a calibrated three-axis accelerometer that embeds a FIFO buffer and two programmable state machines. The click board communicates with the target board MCU through the mikroBUS™ over SPI or I2C interface.

Areas of application include motion control user interfaces and display orientation detectors.

Features


FIFO buffer and an embedded state machines
Can be programmed to recognise user-defined motion patterns. Low power consumption
Interface I2C or SPI
Power Supply 3.3 V
Compatibility mikroBUS
Click board size 28.6 x 25.4 mm

Note

Click board comes with the header strips soldered.


Click mikroBUS™ Sensor Boards


MikroElektronika has designed a range of boards to add new functions and enhance the development of your applications using the mikroBUS™ pinout standard socket. All in one click!
Click™ boards can add a range of sensing, Bluetooth, Wi-Fi, extra memory, UART communications, audio and much more functionality to your designs. Some boards also act as extensions for development platforms such as the Beaglebone, Arduino Uno and Raspberry Pi.
