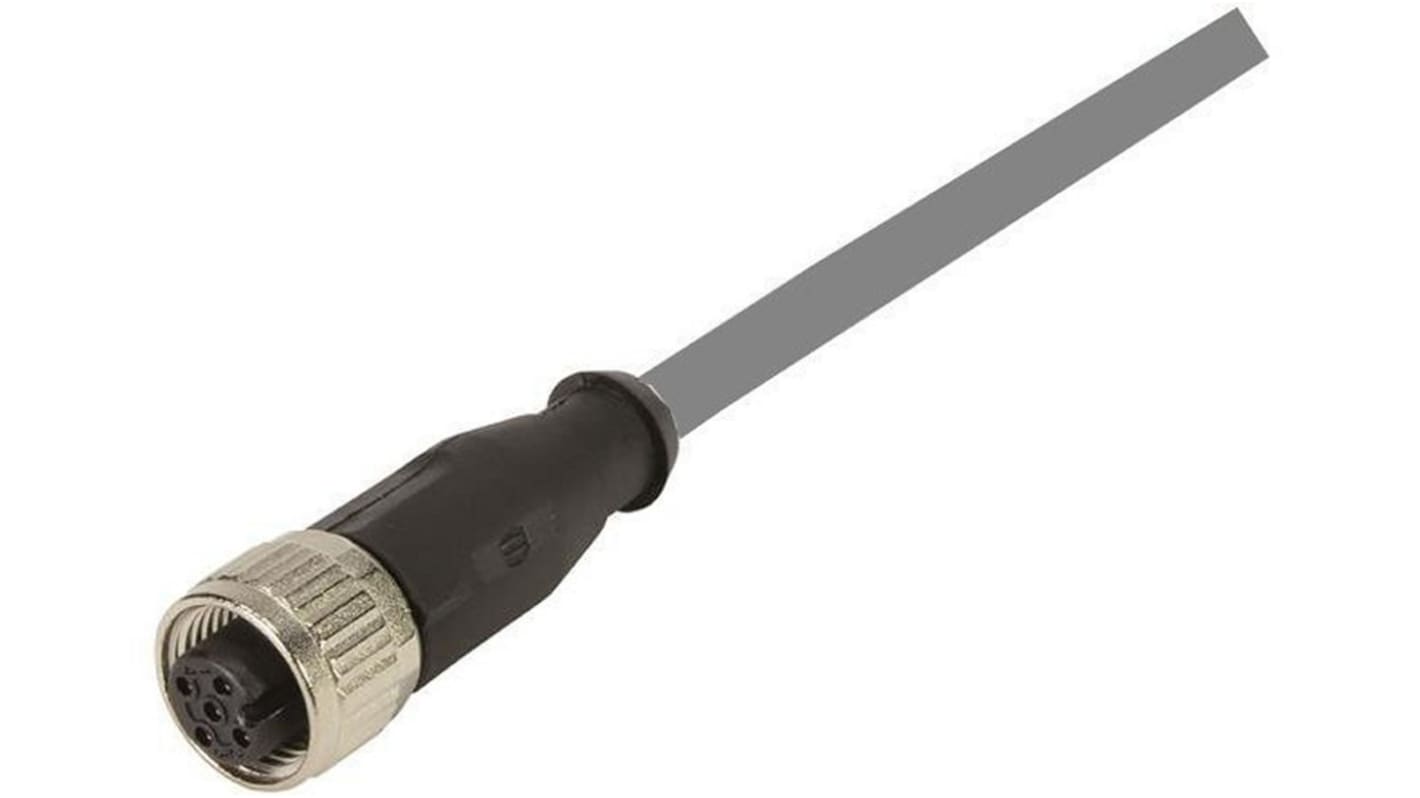

HARTING Straight Female 12 way M12 to Straight Male 12 way M12 Sensor Actuator Cable, 1m
- RS Stock No.:
- 877-5213
- Mfr. Part No.:
- 21348485C79010
- Brand:
- HARTING
Save 3% when you buy 5 units
Subtotal (1 unit)*
£51.14
(exc. VAT)
£61.37
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 34 unit(s) ready to ship
- Plus 14 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £51.14 |
| 5 + | £49.45 |
*price indicative
- RS Stock No.:
- 877-5213
- Mfr. Part No.:
- 21348485C79010
- Brand:
- HARTING
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HARTING | |
| Series | 2134 | |
| Cross Sectional Area | 0.14 mm² | |
| Number of Cores | 12 | |
| Length | 1m | |
| Sheath Colour | Grey | |
| Sheath Material | Polyurethane PUR | |
| Connector 1 Gender | Female | |
| Connector 1 Number of Contacts | 12 | |
| Connector 1 | M12 | |
| Connector 1 Orientation | Straight | |
| Connector 2 Gender | Male | |
| Connector 2 | M12 | |
| Connector 2 Housing Gender | Male | |
| Connector 2 Number of Contacts | 12 | |
| Connector 2 Orientation | Straight | |
| Coding | A | |
| Shielded/Unshielded | Unshielded | |
| IP Rating | IP67 | |
| Standards Met | IEC 61076-2-101, ISO/IEC 11 801, ISO/IEC 24 702, RoHS Compliant | |
| Minimum Operating Temperature | -30°C | |
| Connector 1 Housing Gender | Female | |
| Cable Shape | Multicore | |
| Maximum Operating Temperature | +80°C | |
| Operating Temperature Range | -30 → +80 °C | |
| American Wire Gauge | 26 AWG | |
Select all | ||
|---|---|---|
Brand HARTING | ||
Series 2134 | ||
Cross Sectional Area 0.14 mm² | ||
Number of Cores 12 | ||
Length 1m | ||
Sheath Colour Grey | ||
Sheath Material Polyurethane PUR | ||
Connector 1 Gender Female | ||
Connector 1 Number of Contacts 12 | ||
Connector 1 M12 | ||
Connector 1 Orientation Straight | ||
Connector 2 Gender Male | ||
Connector 2 M12 | ||
Connector 2 Housing Gender Male | ||
Connector 2 Number of Contacts 12 | ||
Connector 2 Orientation Straight | ||
Coding A | ||
Shielded/Unshielded Unshielded | ||
IP Rating IP67 | ||
Standards Met IEC 61076-2-101, ISO/IEC 11 801, ISO/IEC 24 702, RoHS Compliant | ||
Minimum Operating Temperature -30°C | ||
Connector 1 Housing Gender Female | ||
Cable Shape Multicore | ||
Maximum Operating Temperature +80°C | ||
Operating Temperature Range -30 → +80 °C | ||
American Wire Gauge 26 AWG | ||
