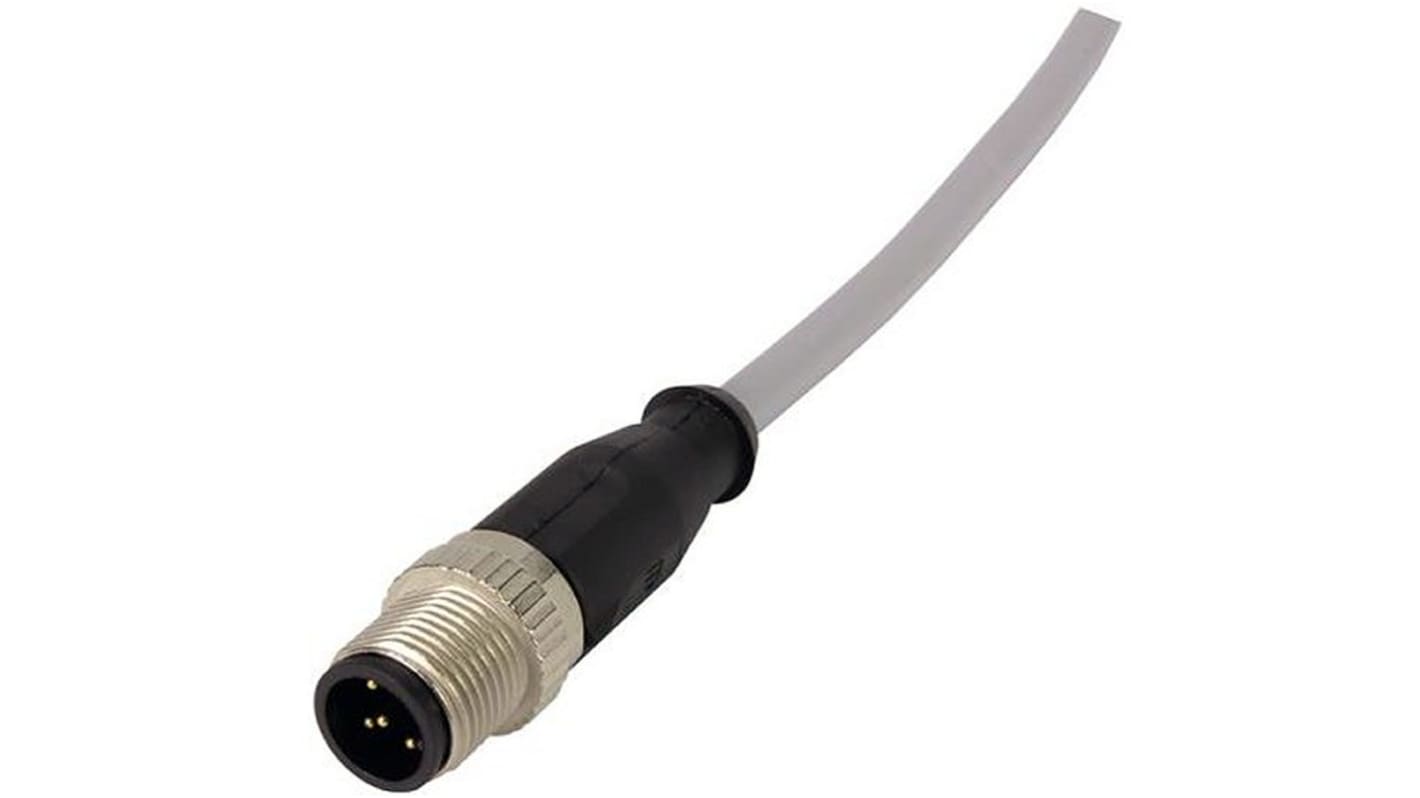

HARTING Straight Female 5 way M12 to Straight Male 5 way M12 Sensor Actuator Cable, 5m
- RS Stock No.:
- 877-4897
- Mfr. Part No.:
- 21348485585050
- Brand:
- HARTING
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 877-4897
- Mfr. Part No.:
- 21348485585050
- Brand:
- HARTING
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HARTING | |
| Series | 2134 | |
| Cross Sectional Area | 0.34 mm² | |
| Number of Cores | 5 | |
| Sheath Material | Polyurethane PUR | |
| Sheath Colour | Grey | |
| Length | 5m | |
| Connector 1 Number of Contacts | 5 | |
| Connector 1 Orientation | Straight | |
| Connector 1 | M12 | |
| Connector 1 Gender | Female | |
| Connector 2 Orientation | Straight | |
| Connector 2 Number of Contacts | 5 | |
| Connector 2 | M12 | |
| Connector 2 Gender | Male | |
| Connector 2 Housing Gender | Male | |
| Coding | A | |
| Shielded/Unshielded | Unshielded | |
| IP Rating | IP67 | |
| American Wire Gauge | 22 AWG | |
| Standards Met | IEC 61076-2-101, ISO/IEC 11 801, ISO/IEC 24 702, RoHS Compliant | |
| Maximum Operating Temperature | +80°C | |
| Minimum Operating Temperature | -25°C | |
| Connector 1 Housing Gender | Female | |
| Operating Temperature Range | -25 → +80 °C | |
| Cable Shape | Multicore | |
Select all | ||
|---|---|---|
Brand HARTING | ||
Series 2134 | ||
Cross Sectional Area 0.34 mm² | ||
Number of Cores 5 | ||
Sheath Material Polyurethane PUR | ||
Sheath Colour Grey | ||
Length 5m | ||
Connector 1 Number of Contacts 5 | ||
Connector 1 Orientation Straight | ||
Connector 1 M12 | ||
Connector 1 Gender Female | ||
Connector 2 Orientation Straight | ||
Connector 2 Number of Contacts 5 | ||
Connector 2 M12 | ||
Connector 2 Gender Male | ||
Connector 2 Housing Gender Male | ||
Coding A | ||
Shielded/Unshielded Unshielded | ||
IP Rating IP67 | ||
American Wire Gauge 22 AWG | ||
Standards Met IEC 61076-2-101, ISO/IEC 11 801, ISO/IEC 24 702, RoHS Compliant | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -25°C | ||
Connector 1 Housing Gender Female | ||
Operating Temperature Range -25 → +80 °C | ||
Cable Shape Multicore | ||
- COO (Country of Origin):
- CZ
M12 A-Coded Male to Female Connector Cordsets
A comprehensive offering of Harting straight male to straight or angled female cable connector cordsets, in M12 format with A coding in 3, 4, 5, 8 and 12 ways. These durable connector cordsets are suitable for data networking applications, Fast Ethernet, and Gigabit Ethernet (dependant upon number of ways) found in many industries. Connector cordsets are supplied with 1, 5 and 10 metres of either grey PVC or black PUR cable as stated and are terminated with a straight M12 male cable connector at one end and a straight or angled female M12 connector at the other.
Features
• Available in Fast Ethernet and Gigabit Ethernet variants
• Cordsets lengths 1, 5 and 10 metres
• Unshielded
• IP67 Rated
• Cordsets lengths 1, 5 and 10 metres
• Unshielded
• IP67 Rated
Standards
IEC 61076-2-101
Harting M12 Cordsets
