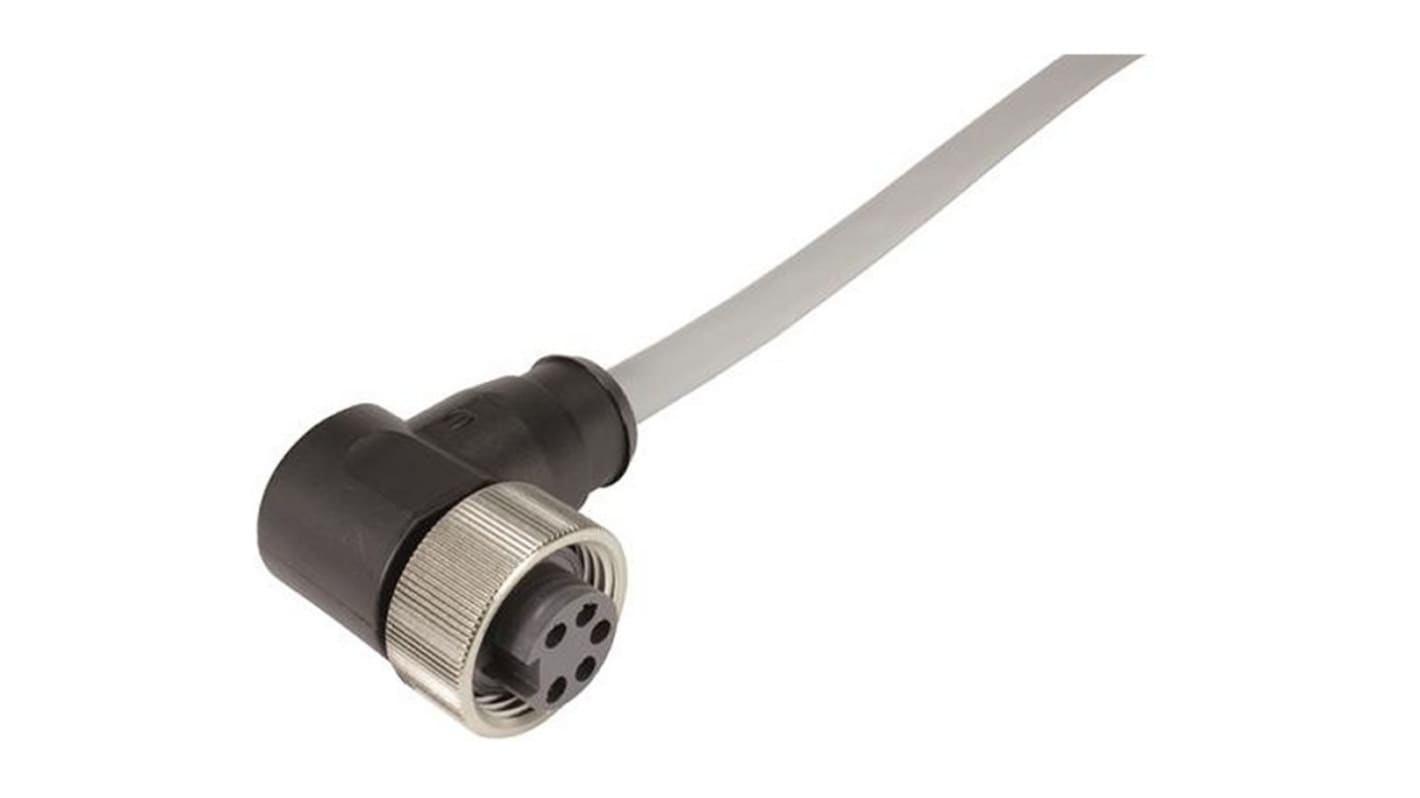

HARTING Right Angle Female 3 way M8 to Unterminated Sensor Actuator Cable, 10m
- RS Stock No.:
- 877-4352
- Mfr. Part No.:
- 21348300380100
- Brand:
- HARTING
Save 5% when you buy 25 units
Subtotal (1 unit)*
£18.26
(exc. VAT)
£21.91
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 9 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £18.26 |
| 5 - 24 | £17.73 |
| 25 + | £17.20 |
*price indicative
- RS Stock No.:
- 877-4352
- Mfr. Part No.:
- 21348300380100
- Brand:
- HARTING
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HARTING | |
| Series | 2134 | |
| Number of Cores | 3 | |
| Cross Sectional Area | 0.25 mm² | |
| Length | 10m | |
| Sheath Material | PUR | |
| Sheath Colour | Grey | |
| Connector 1 Orientation | Right Angle | |
| Connector 1 | M8 | |
| Connector 1 Gender | Female | |
| Connector 1 Number of Contacts | 3 | |
| Connector 2 | Unterminated | |
| Coding | A | |
| Shielded/Unshielded | Unshielded | |
| IP Rating | IP67 | |
| Standards Met | IEC 61076-2-101, ISO/IEC 11 801, ISO/IEC 24 702, RoHS Compliant | |
| Operating Temperature Range | -25 → +80 °C | |
| American Wire Gauge | 24 AWG | |
| Connector 1 Housing Gender | Female | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +80°C | |
| Cable Shape | Multicore | |
Select all | ||
|---|---|---|
Brand HARTING | ||
Series 2134 | ||
Number of Cores 3 | ||
Cross Sectional Area 0.25 mm² | ||
Length 10m | ||
Sheath Material PUR | ||
Sheath Colour Grey | ||
Connector 1 Orientation Right Angle | ||
Connector 1 M8 | ||
Connector 1 Gender Female | ||
Connector 1 Number of Contacts 3 | ||
Connector 2 Unterminated | ||
Coding A | ||
Shielded/Unshielded Unshielded | ||
IP Rating IP67 | ||
Standards Met IEC 61076-2-101, ISO/IEC 11 801, ISO/IEC 24 702, RoHS Compliant | ||
Operating Temperature Range -25 → +80 °C | ||
American Wire Gauge 24 AWG | ||
Connector 1 Housing Gender Female | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +80°C | ||
Cable Shape Multicore | ||
