RS PRO Right Angle Female 8 way M12 to Straight Male 8 way M12 Sensor Actuator Cable, 2m
- RS Stock No.:
- 877-1208
- Distrelec Article No.:
- 304-19-907
- Brand:
- RS PRO
Subtotal (1 unit)*
£31.03
(exc. VAT)
£37.24
(inc. VAT)
FREE delivery for orders over £50.00
- 28 unit(s) ready to ship
- Plus 8 unit(s) ready to ship from another location
- Plus 30 unit(s) shipping from 04 December 2025
Units | Per unit |
|---|---|
| 1 - 4 | £31.03 |
| 5 - 9 | £29.48 |
| 10 - 49 | £27.93 |
| 50 + | £24.85 |
*price indicative
- RS Stock No.:
- 877-1208
- Distrelec Article No.:
- 304-19-907
- Brand:
- RS PRO
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Number of Cores | 8 | |
| Cross Sectional Area | 0.25 mm² | |
| Sheath Colour | Black | |
| Sheath Material | Polyurethane PUR | |
| Length | 2m | |
| Connector 1 Orientation | Right Angle | |
| Connector 1 | M12 | |
| Connector 1 Gender | Female | |
| Connector 1 Number of Contacts | 8 | |
| Connector 2 Number of Contacts | 8 | |
| Connector 2 Housing Gender | Male | |
| Connector 2 Gender | Male | |
| Connector 2 | M12 | |
| Connector 2 Orientation | Straight | |
| Shielded/Unshielded | Unshielded | |
| Current Rating | 2 A | |
| Voltage Rating | 30 V | |
| IP Rating | IP67 | |
| American Wire Gauge | 24 AWG | |
| Outer Diameter | 6.4mm | |
| Maximum Operating Temperature | +75°C | |
| Cable Shape | Multicore | |
| Minimum Operating Temperature | -25°C | |
| Operating Temperature Range | -25 → +75 °C | |
| Connector 1 Housing Gender | Female | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Number of Cores 8 | ||
Cross Sectional Area 0.25 mm² | ||
Sheath Colour Black | ||
Sheath Material Polyurethane PUR | ||
Length 2m | ||
Connector 1 Orientation Right Angle | ||
Connector 1 M12 | ||
Connector 1 Gender Female | ||
Connector 1 Number of Contacts 8 | ||
Connector 2 Number of Contacts 8 | ||
Connector 2 Housing Gender Male | ||
Connector 2 Gender Male | ||
Connector 2 M12 | ||
Connector 2 Orientation Straight | ||
Shielded/Unshielded Unshielded | ||
Current Rating 2 A | ||
Voltage Rating 30 V | ||
IP Rating IP67 | ||
American Wire Gauge 24 AWG | ||
Outer Diameter 6.4mm | ||
Maximum Operating Temperature +75°C | ||
Cable Shape Multicore | ||
Minimum Operating Temperature -25°C | ||
Operating Temperature Range -25 → +75 °C | ||
Connector 1 Housing Gender Female | ||
- COO (Country of Origin):
- IN

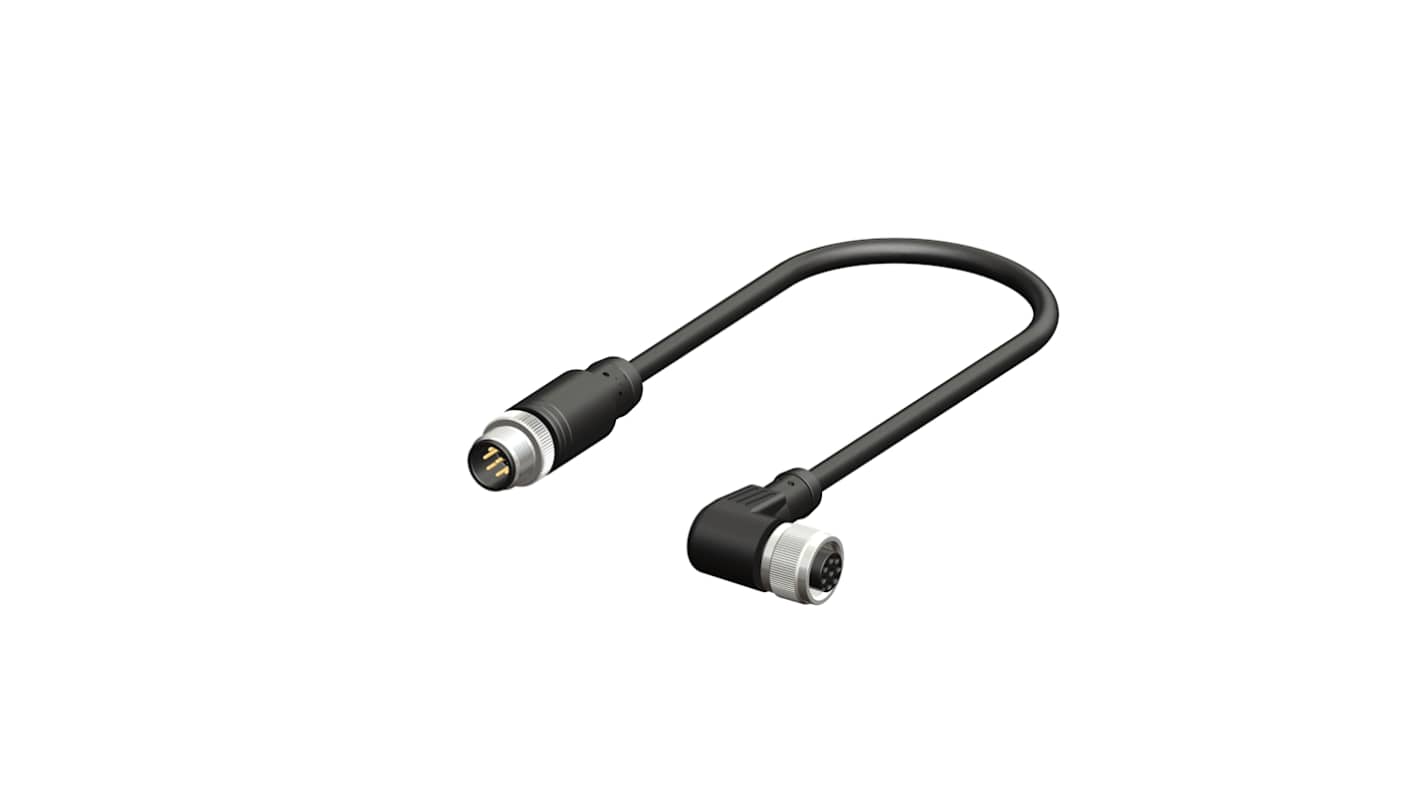

RS PRO M12 Right-Angle to Straight Cable Assembly, 8 Cores, 2 m
To protect the cable and ensure a long product life, it has a durable polyvinyl chloride (PVC) sheath. This helps prevent mechanical and chemical damage and keeps out moisture.
The cable has a straight M12 male connector on one end with a female socket at the other end at a right angle. This makes the component suitable for connecting small or portable components to large or wall-mounted equipment.
Features and Benefits
• Multicore cable shape
• Connector A is an M12 right-angle female socket
• Connector B is an M12 straight male plug
• Eight contacts
• Cross-sectional area of 0.25 mm²
• Current rating of 2 A
• Ingress Protection (IP) rating of IP67 (dust-tight and sealed against medium water jets)
• Length of 2 m
• Operating temperature range of -25°C to +75°C
• Eight cores
• Outer diameter of 6.4 mm
• Polyvinyl chloride (PVC) outer sheath material
• Black sheath colour
• Polyurethane (PUR) sheath material
• Unshielded
• Voltage rating of 30 V
