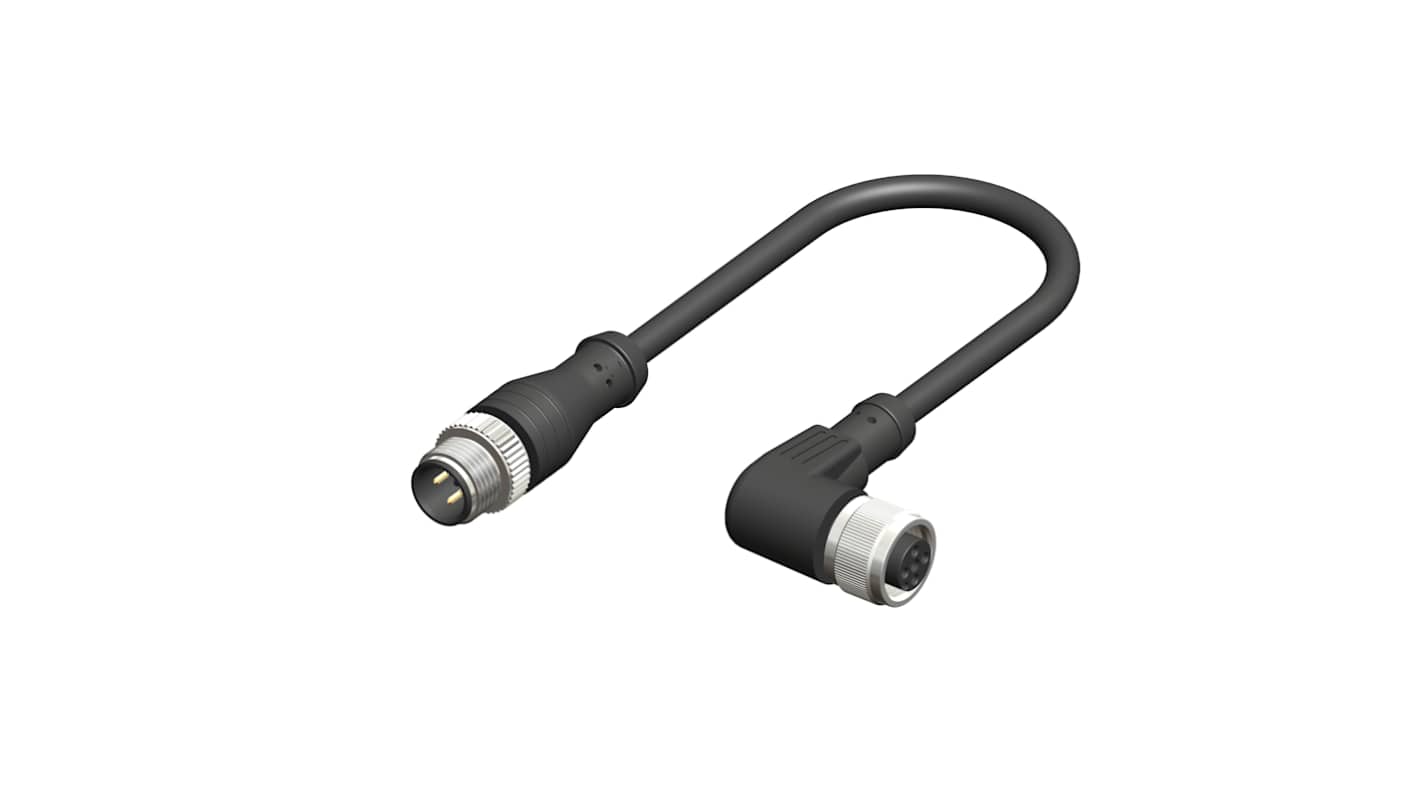

RS PRO Right Angle Female 4 way M12 to Straight Male 4 way M12 Sensor Actuator Cable, 2m

View all Sensor & Actuator Cables
Bulk discount available

Subtotal (1 unit)*

£16.64

(exc. VAT)

£19.97

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 3 unit(s) shipping from 24 October 2025
  • Plus 30 unit(s) shipping from 02 December 2025
  • Plus 122 unit(s) shipping from 04 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£16.64
5 - 9£15.82
10 - 49£15.00
50 +£13.31

*price indicative

Sensor & Actuator cables to Sensor Accessories
Complete Your Connection with the Right Accessories
Sensor & actuator cables are essential for reliable connectivity—but to get the most out of your setup, don’t overlook the accessories. From mounting hardware to protective covers and connectors, our sensor accessories help you install, secure, and optimise your system. If you're browsing cables, explore our accessories range to ensure a clean, efficient, and long-lasting installation.
Shop Now
RS Stock No.:
877-1205
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Cross Sectional Area

0.34 mm²

Number of Cores

4

Sheath Colour

Black

Length

2m

Sheath Material

PUR

Connector 1

M12

Connector 1 Number of Contacts

4

Connector 1 Orientation

Right Angle

Connector 1 Gender

Female

Connector 2 Orientation

Straight

Connector 2 Housing Gender

Male

Connector 2 Number of Contacts

4

Connector 2

M12

Connector 2 Gender

Male

Shielded/Unshielded

Unshielded

Current Rating

4 A

Voltage Rating

250 V

IP Rating

IP67

Cable Shape

Multicore

Minimum Operating Temperature

-25°C

Connector 1 Housing Gender

Female

Maximum Operating Temperature

+75°C

Conductor Material

CuZn

Operating Temperature Range

-25 → +75 °C

American Wire Gauge

22 AWG

Outer Diameter

4.9mm

COO (Country of Origin):
IN

RS PRO 4 Core M12 to M12 Sensor Actuator Cable (2m)


An M12 sensor cable with a right angled female connection commonly used in sensor and automation equipment, process control and consumer electronics. Boasting a high degree of environmental protection, they are ideal for industrial use.
The M12 actuator cable is fitted with a PUR sheath and is rated to IP67 for protection from dust and water. Featuring Gold plated contacts for excellent conductivity, secured with a Nickel plated Brass coupling ring and suitable for temperatures ranging from -25 to +75°C.
A hardwearing cable suitable for industrial use and ideal for when secure and reliable data transfer is needed.

Features and Benefits


M12 sensor cable
4 core cable
Right angle female connection
250V rated
1.3mm Core diameter
Partially stripped ends
Insulation Resistance 100 MΩ
Wide operating temperature range of -25 to 75°C
PUR sheath
Neoprene O-Ring
Nickel plated Brass coupling nut
IP67 rated
2m in length
