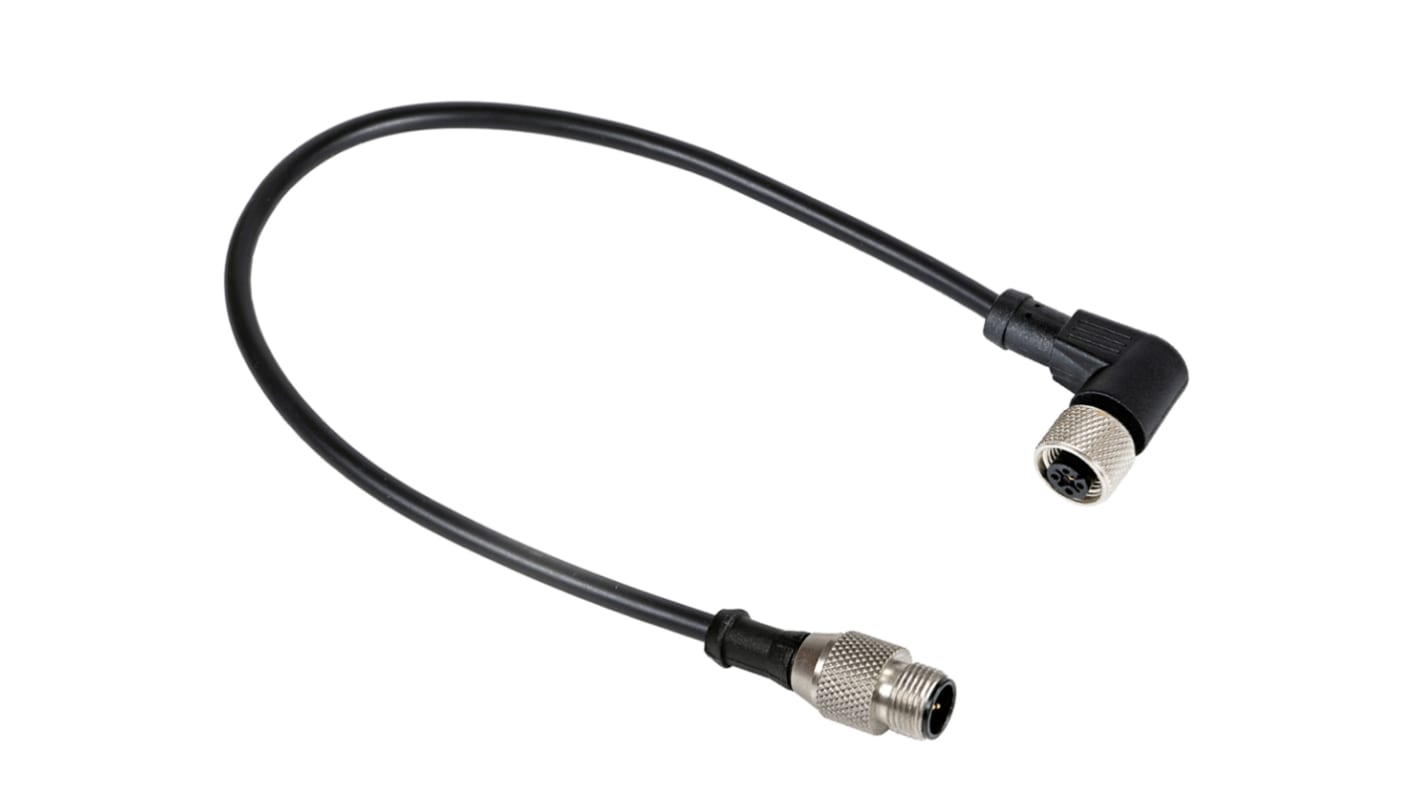

RS PRO Right Angle Female 3 way M12 to Straight Male 3 way M12 Sensor Actuator Cable, 2m
- RS Stock No.:
- 877-1195
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£17.70
(exc. VAT)
£21.24
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 15 unit(s) shipping from 08 September 2025
- Plus 1 unit(s) shipping from 08 September 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £17.70 |
| 5 - 9 | £16.83 |
| 10 - 49 | £15.94 |
| 50 + | £14.17 |
*price indicative
- RS Stock No.:
- 877-1195
- Brand:
- RS PRO
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Cross Sectional Area | 0.34 mm² | |
| Number of Cores | 3 | |
| Sheath Colour | Black | |
| Sheath Material | PUR | |
| Length | 2m | |
| Connector 1 Orientation | Right Angle | |
| Connector 1 | M12 | |
| Connector 1 Number of Contacts | 3 | |
| Connector 1 Gender | Female | |
| Connector 2 Orientation | Straight | |
| Connector 2 Number of Contacts | 3 | |
| Connector 2 | M12 | |
| Connector 2 Gender | Male | |
| Connector 2 Housing Gender | Male | |
| Shielded/Unshielded | Unshielded | |
| Current Rating | 4 A | |
| Voltage Rating | 250 V | |
| IP Rating | IP67 | |
| American Wire Gauge | 22 AWG | |
| Outer Diameter | 4.5mm | |
| Connector 1 Housing Gender | Female | |
| Maximum Operating Temperature | +75°C | |
| Minimum Operating Temperature | -25°C | |
| Cable Shape | Multicore | |
| Operating Temperature Range | -25 → +75 °C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Cross Sectional Area 0.34 mm² | ||
Number of Cores 3 | ||
Sheath Colour Black | ||
Sheath Material PUR | ||
Length 2m | ||
Connector 1 Orientation Right Angle | ||
Connector 1 M12 | ||
Connector 1 Number of Contacts 3 | ||
Connector 1 Gender Female | ||
Connector 2 Orientation Straight | ||
Connector 2 Number of Contacts 3 | ||
Connector 2 M12 | ||
Connector 2 Gender Male | ||
Connector 2 Housing Gender Male | ||
Shielded/Unshielded Unshielded | ||
Current Rating 4 A | ||
Voltage Rating 250 V | ||
IP Rating IP67 | ||
American Wire Gauge 22 AWG | ||
Outer Diameter 4.5mm | ||
Connector 1 Housing Gender Female | ||
Maximum Operating Temperature +75°C | ||
Minimum Operating Temperature -25°C | ||
Cable Shape Multicore | ||
Operating Temperature Range -25 → +75 °C | ||
