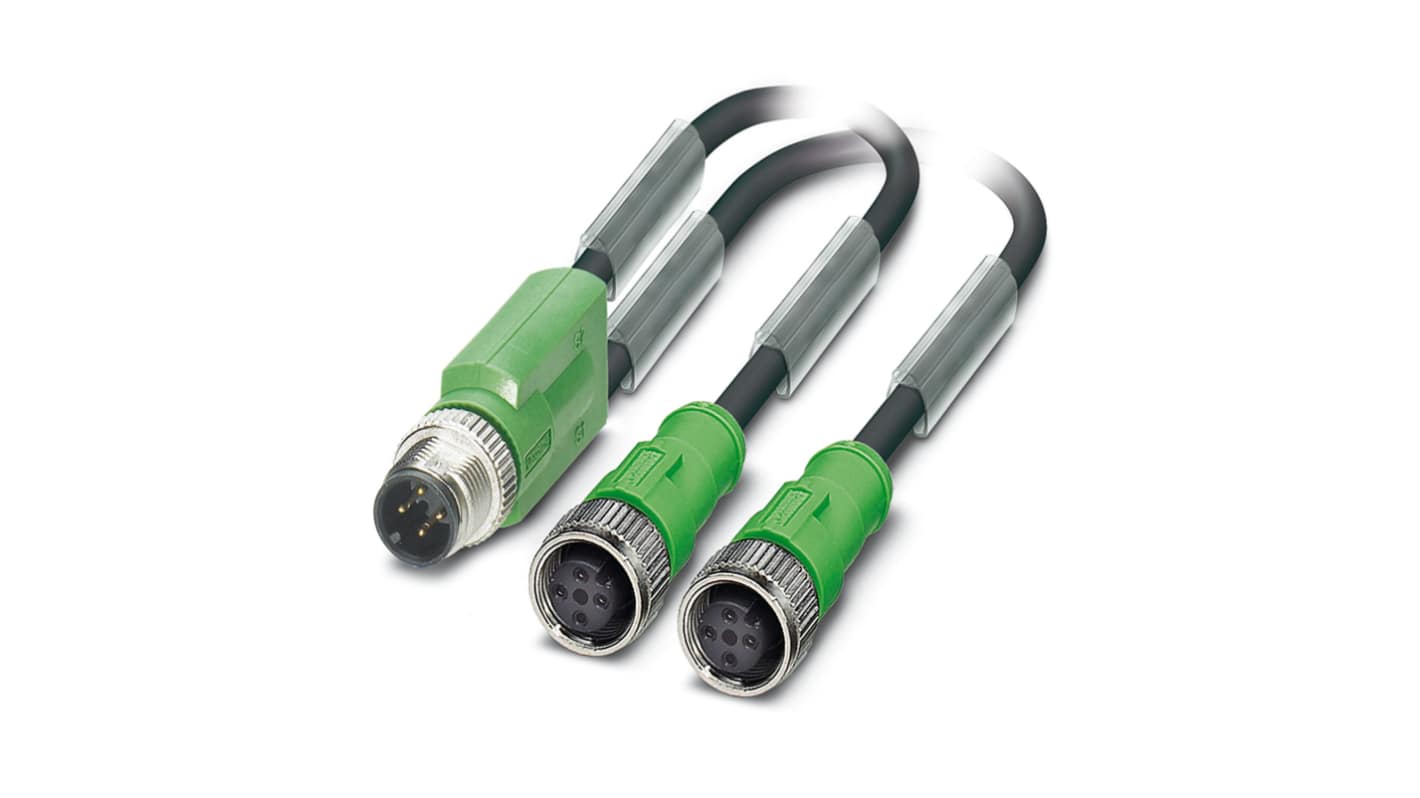

Phoenix Contact Male 3 way M12 to Female 3 way M12 x 2 Sensor Actuator Cable, 600mm
- RS Stock No.:
- 861-1055
- Mfr. Part No.:
- 1668962
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£25.55
(exc. VAT)
£30.66
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 10 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £25.55 |
*price indicative
- RS Stock No.:
- 861-1055
- Mfr. Part No.:
- 1668962
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Number of Cores | 3 | |
| Length | 600mm | |
| Sheath Material | PUR | |
| Sheath Colour | Black/Grey | |
| Connector 1 Gender | Male | |
| Connector 1 Number of Contacts | 3 | |
| Connector 1 | M12 | |
| Connector 2 Gender | Female | |
| Connector 2 | M12 x 2 | |
| Connector 2 Number of Contacts | 3 | |
| Coding | A | |
| Voltage Rating | 250 V | |
| Current Rating | 4 A | |
| IP Rating | IP65, IP67 | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Number of Cores 3 | ||
Length 600mm | ||
Sheath Material PUR | ||
Sheath Colour Black/Grey | ||
Connector 1 Gender Male | ||
Connector 1 Number of Contacts 3 | ||
Connector 1 M12 | ||
Connector 2 Gender Female | ||
Connector 2 M12 x 2 | ||
Connector 2 Number of Contacts 3 | ||
Coding A | ||
Voltage Rating 250 V | ||
Current Rating 4 A | ||
IP Rating IP65, IP67 | ||
- COO (Country of Origin):
- IN
Sensor/actuator cable, 3-position, PUR halogen-free, black-gray RAL 7021, Plug straight M12, coding: A, on Socket straight M12, coding: A, PIN 2+4 bridged and Socket straight M12, coding: A, PIN 2+4 bridged, cable length: 0.6 m
