Phoenix Contact Right Angle Female 5 way M12 to Sensor Actuator Cable, 10m
- RS Stock No.:
- 859-5180
- Mfr. Part No.:
- 1404056
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£27.97
(exc. VAT)
£33.56
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 26 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £27.97 |
*price indicative
- RS Stock No.:
- 859-5180
- Mfr. Part No.:
- 1404056
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | SAC-5P | |
| Cross Sectional Area | 0.34 mm² | |
| Number of Cores | 5 | |
| Sheath Material | PP | |
| Sheath Colour | Grey | |
| Length | 10m | |
| Connector 1 Number of Contacts | 5 | |
| Connector 1 Gender | Female | |
| Connector 1 | M12 | |
| Connector 1 Orientation | Right Angle | |
| Coding | A | |
| Current Rating | 4 A | |
| Voltage Rating | 60 V | |
| IP Rating | IP65, IP67, IP68, IP69K | |
| Fire Behaviour | Halogen Free | |
| Outer Diameter | 5mm | |
| Cable Shape | Twisted Pair | |
| Minimum Bend Radius | 5 x D (Fixed), 10 x D (Flexible) | |
| Conductor Material | Bare Cu litz wires | |
| Connector 1 Housing Gender | Female | |
| Insulation Material | PP | |
| American Wire Gauge | 22 AWG | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series SAC-5P | ||
Cross Sectional Area 0.34 mm² | ||
Number of Cores 5 | ||
Sheath Material PP | ||
Sheath Colour Grey | ||
Length 10m | ||
Connector 1 Number of Contacts 5 | ||
Connector 1 Gender Female | ||
Connector 1 M12 | ||
Connector 1 Orientation Right Angle | ||
Coding A | ||
Current Rating 4 A | ||
Voltage Rating 60 V | ||
IP Rating IP65, IP67, IP68, IP69K | ||
Fire Behaviour Halogen Free | ||
Outer Diameter 5mm | ||
Cable Shape Twisted Pair | ||
Minimum Bend Radius 5 x D (Fixed), 10 x D (Flexible) | ||
Conductor Material Bare Cu litz wires | ||
Connector 1 Housing Gender Female | ||
Insulation Material PP | ||
American Wire Gauge 22 AWG | ||
- COO (Country of Origin):
- PL

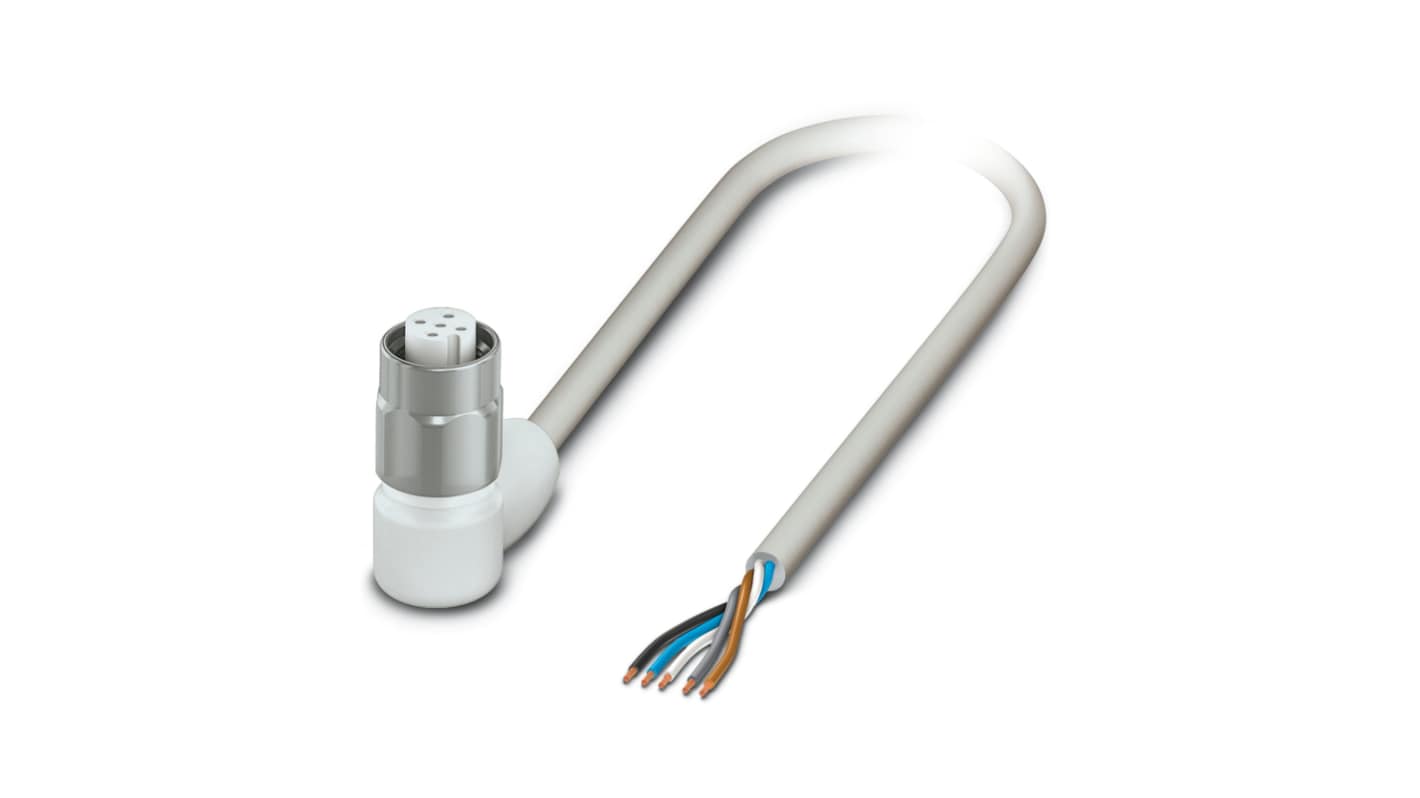

Sensor/actuator cable, 5-position, PP-EPDM halogen-free, gray RAL 7035, free cable end, on Socket angled M12, coding: A, cable length: 10 m, Hygienic design, with high-grade steel knurl
Easy and safe: 100% electrically tested plug-in components
Contamination can be detected quickly – thanks to the light color
Corrosion protection for all exposed metal parts, thanks to the use of stainless steel type 1.4404
Easy to clean, thanks to the special hygienic design
