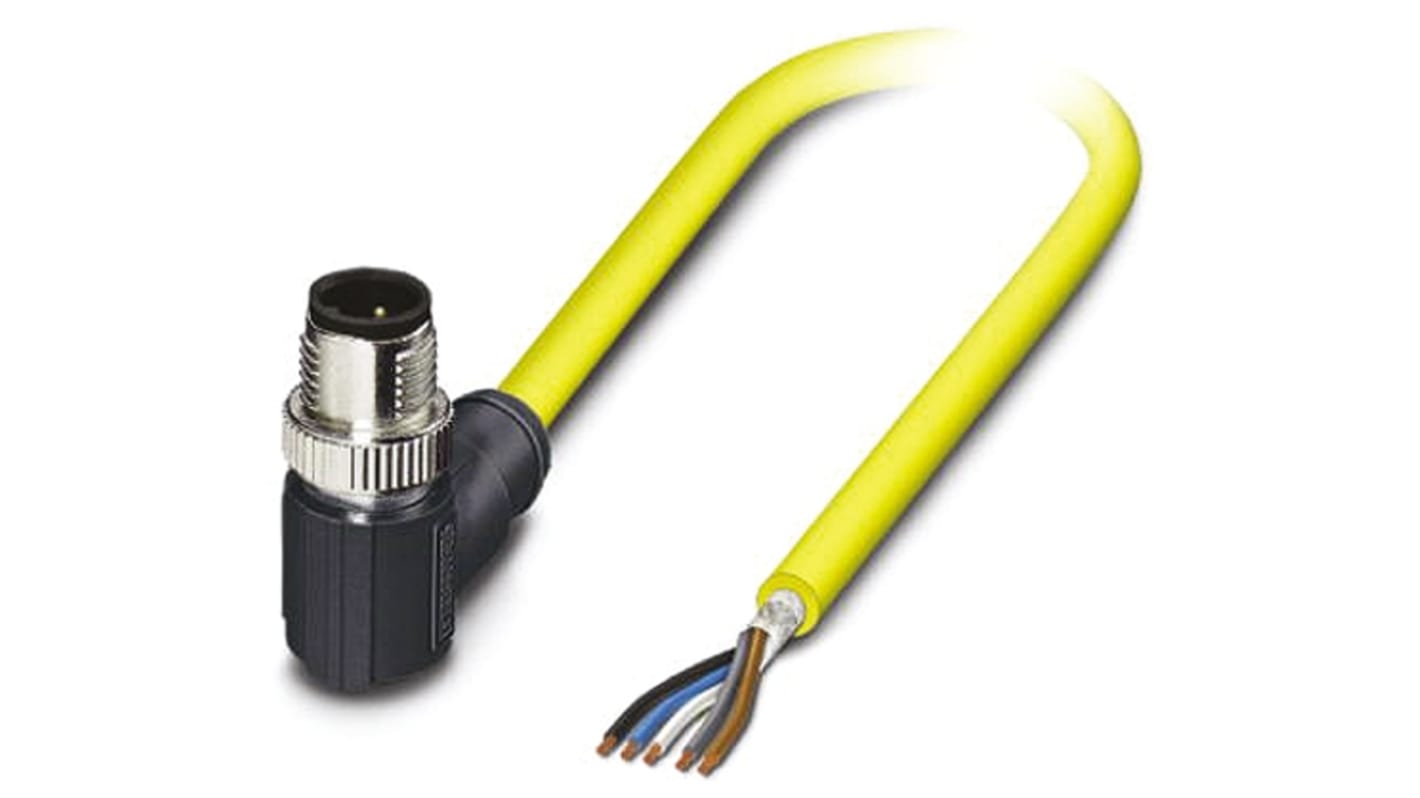

Phoenix Contact Right Angle Male 5 way M12 to Unterminated Sensor Actuator Cable, 10m
- RS Stock No.:
- 802-9226
- Mfr. Part No.:
- 1406144
- Brand:
- Phoenix Contact
Available to back order for despatch 16/09/2024
Price 1 Pack of 50
£1,723.13
(exc. VAT)
£2,067.76
(inc. VAT)
Pack(s) | Per Pack | Per unit* |
---|---|---|
1 - 4 | £1,723.13 | £34.463 |
5 + | £1,654.20 | £33.084 |
*price indicative
- RS Stock No.:
- 802-9226
- Mfr. Part No.:
- 1406144
- Brand:
- Phoenix Contact
Technical Reference
Legislation and Compliance
Product Details
Sensor/Actuator 5 Way Cable Assemblies, M12 Speedcon to Free End, Shielded
M12 to free end shielded Speedcon connector cable assemblies, 5 way in a variety of cable lengths, with angled or straight connector versions with PVC shielded yellow cable. A-coded connectors with a rating of 4A 60V and IP67 rated once mated.
100 mating cycles
Operating temperature range -25 to +90 °C
Surge voltage category II
Operating temperature range -25 to +90 °C
Surge voltage category II
Approvals
UL Listed, cUL Listed, cULus Listed
Specifications
Attribute | Value |
---|---|
Series | SAC-5P-MR/10.0-542 SH SCO BK |
Cross Sectional Area | 0.34 mm² |
Number of Cores | 5 |
Sheath Colour | Yellow |
Sheath Material | PVC |
Length | 10m |
Connector 1 Orientation | Right Angle |
Connector 1 | M12 |
Connector 1 Gender | Male |
Connector 1 Number of Contacts | 5 |
Connector 2 | Unterminated |
Coding | A |
Shielded/Unshielded | Shielded |
American Wire Gauge | 22 AWG |
Connector 1 Housing Gender | Male |
