Phoenix Contact Male 4 way M12 to Female 4 way M12 Sensor Actuator Cable, 3m
- RS Stock No.:
- 859-2210
- Mfr. Part No.:
- 1668548
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£23.06
(exc. VAT)
£27.67
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
- Plus 2 unit(s) ready to ship from another location
- Plus 999,999,998 unit(s) shipping from 18 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £23.06 |
*price indicative
- RS Stock No.:
- 859-2210
- Mfr. Part No.:
- 1668548
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | SAC | |
| Number of Cores | 4 | |
| Length | 3m | |
| Sheath Material | PUR | |
| Sheath Colour | Black/Grey | |
| Connector 1 Number of Contacts | 4 | |
| Connector 1 Gender | Male | |
| Connector 1 | M12 | |
| Connector 2 Gender | Female | |
| Connector 2 Housing Gender | Female | |
| Connector 2 | M12 | |
| Connector 2 Number of Contacts | 4 | |
| Coding | A | |
| Voltage Rating | 24 V | |
| Current Rating | 4 A | |
| IP Rating | IP65, IP67, IP68 | |
| Minimum Bend Radius | 10 x D (Flexible) 5 x D (Fixed) | |
| Connector 1 Housing Gender | Male | |
| Conductor Material | Bare Cu litz wires | |
| Oil Resistant | Yes | |
| American Wire Gauge | 22 AWG | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series SAC | ||
Number of Cores 4 | ||
Length 3m | ||
Sheath Material PUR | ||
Sheath Colour Black/Grey | ||
Connector 1 Number of Contacts 4 | ||
Connector 1 Gender Male | ||
Connector 1 M12 | ||
Connector 2 Gender Female | ||
Connector 2 Housing Gender Female | ||
Connector 2 M12 | ||
Connector 2 Number of Contacts 4 | ||
Coding A | ||
Voltage Rating 24 V | ||
Current Rating 4 A | ||
IP Rating IP65, IP67, IP68 | ||
Minimum Bend Radius 10 x D (Flexible) 5 x D (Fixed) | ||
Connector 1 Housing Gender Male | ||
Conductor Material Bare Cu litz wires | ||
Oil Resistant Yes | ||
American Wire Gauge 22 AWG | ||
- COO (Country of Origin):
- PL

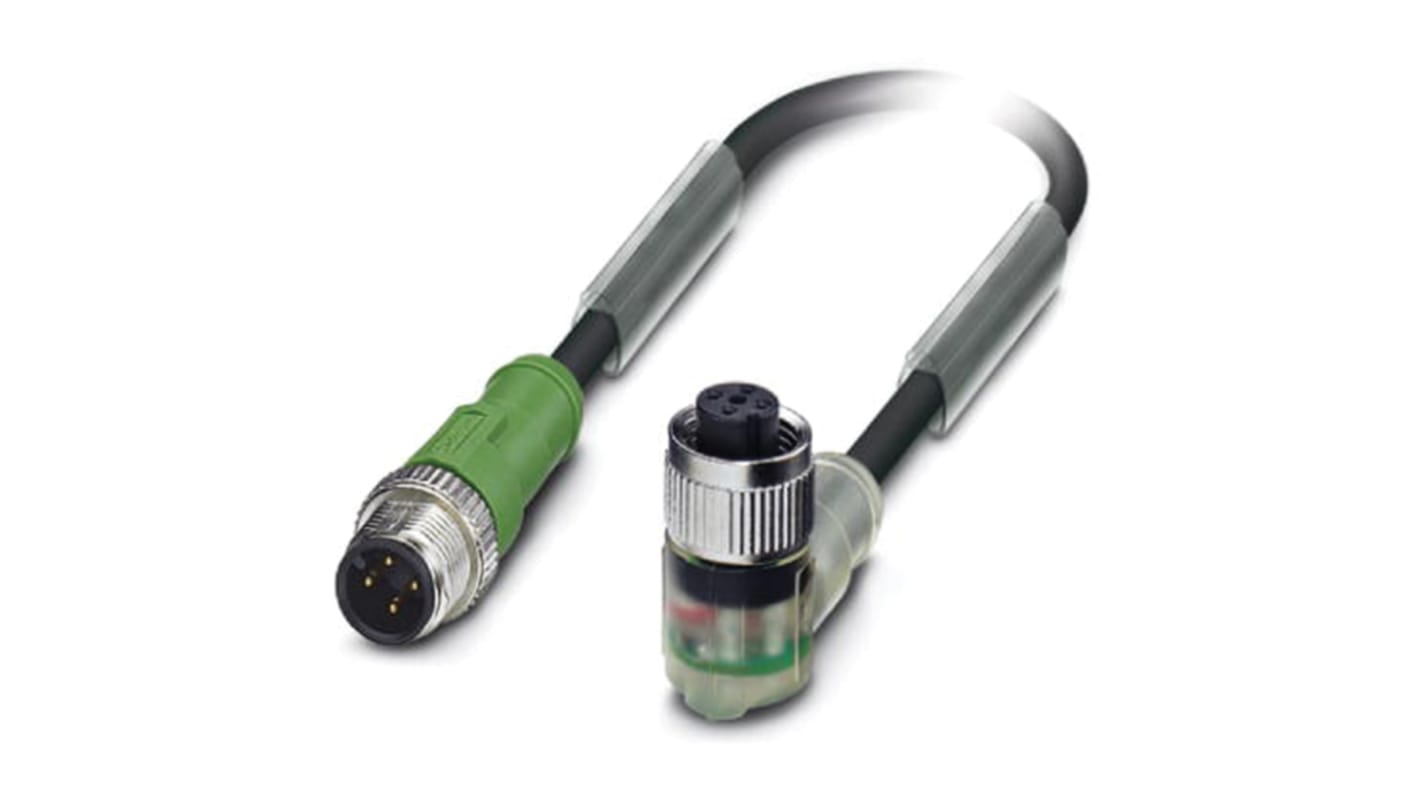

Sensor/actuator cable, 4-position, PUR halogen-free, black-gray RAL 7021, Plug straight M12, coding: A, on Socket angled M12, coding: A, with 3 LEDs, cable length: 3 m
Our standard: robust halogen-free PUR cable
Easy and safe: 100% electrically tested plug-in components
Convenient: increased machine availability thanks to quick and easy diagnostics
