Phoenix Contact Male 4 way M12 to 4 way M12 Sensor Actuator Cable, 3m
- RS Stock No.:
- 861-1447
- Mfr. Part No.:
- 1404003
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£11.86
(exc. VAT)
£14.23
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 11 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £11.86 |
*price indicative
- RS Stock No.:
- 861-1447
- Mfr. Part No.:
- 1404003
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Number of Cores | 4 | |
| Sheath Colour | Grey | |
| Sheath Material | PP | |
| Length | 3m | |
| Connector 1 | M12 | |
| Connector 1 Gender | Male | |
| Connector 1 Number of Contacts | 4 | |
| Connector 2 | M12 | |
| Connector 2 Number of Contacts | 4 | |
| Coding | A | |
| Current Rating | 4 A | |
| Voltage Rating | 250 V | |
| IP Rating | IP65, IP67, IP68, IP69K | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Number of Cores 4 | ||
Sheath Colour Grey | ||
Sheath Material PP | ||
Length 3m | ||
Connector 1 M12 | ||
Connector 1 Gender Male | ||
Connector 1 Number of Contacts 4 | ||
Connector 2 M12 | ||
Connector 2 Number of Contacts 4 | ||
Coding A | ||
Current Rating 4 A | ||
Voltage Rating 250 V | ||
IP Rating IP65, IP67, IP68, IP69K | ||
- COO (Country of Origin):
- PL

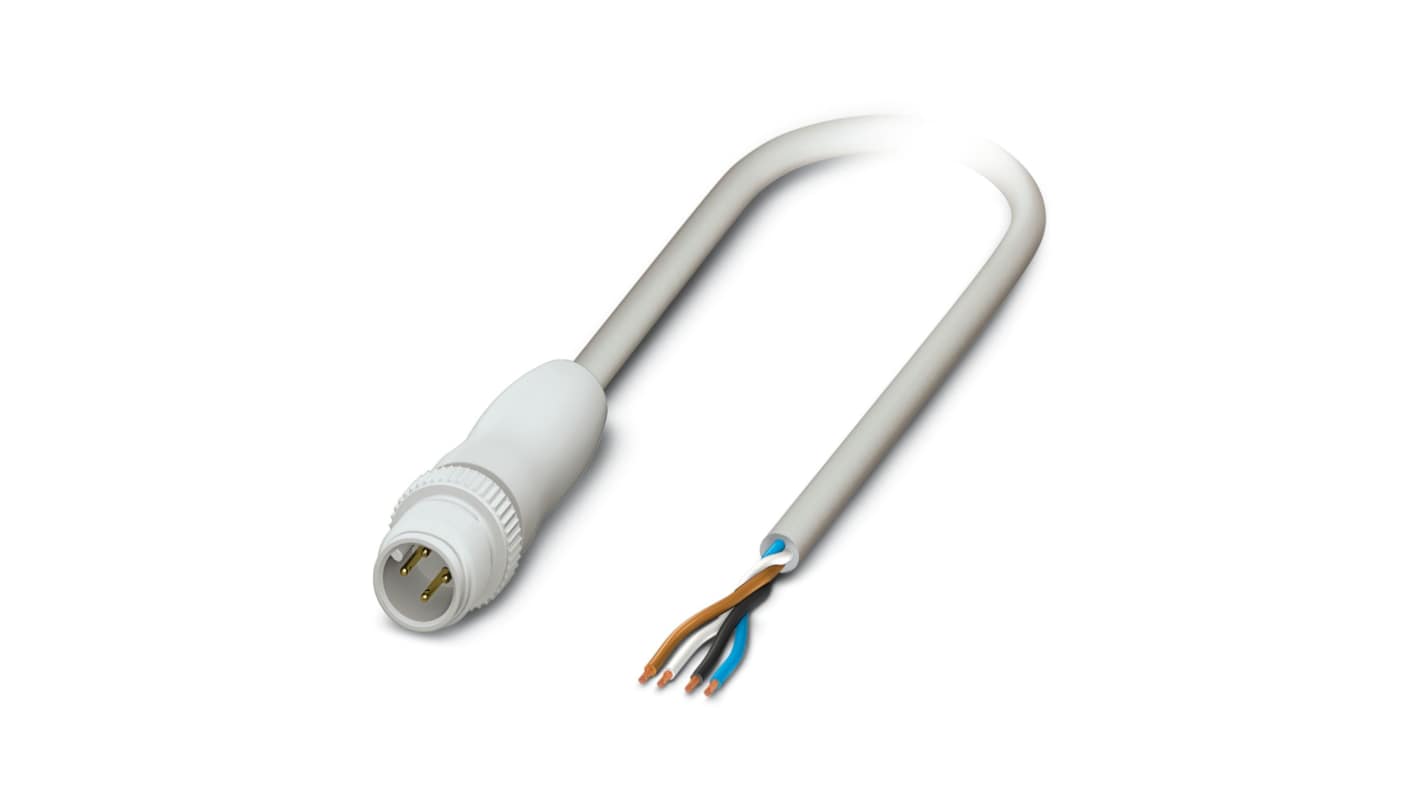

Sensor/actuator cable, 4-position, PP-EPDM halogen-free, gray RAL 7035, Plug straight M12, coding: A, on free cable end, cable length: 3 m, Hygienic design, with plastic knurl
Easy and safe: 100% electrically tested plug-in components
Contamination can be detected quickly – thanks to the light color
Easy to clean, thanks to the special hygienic design
