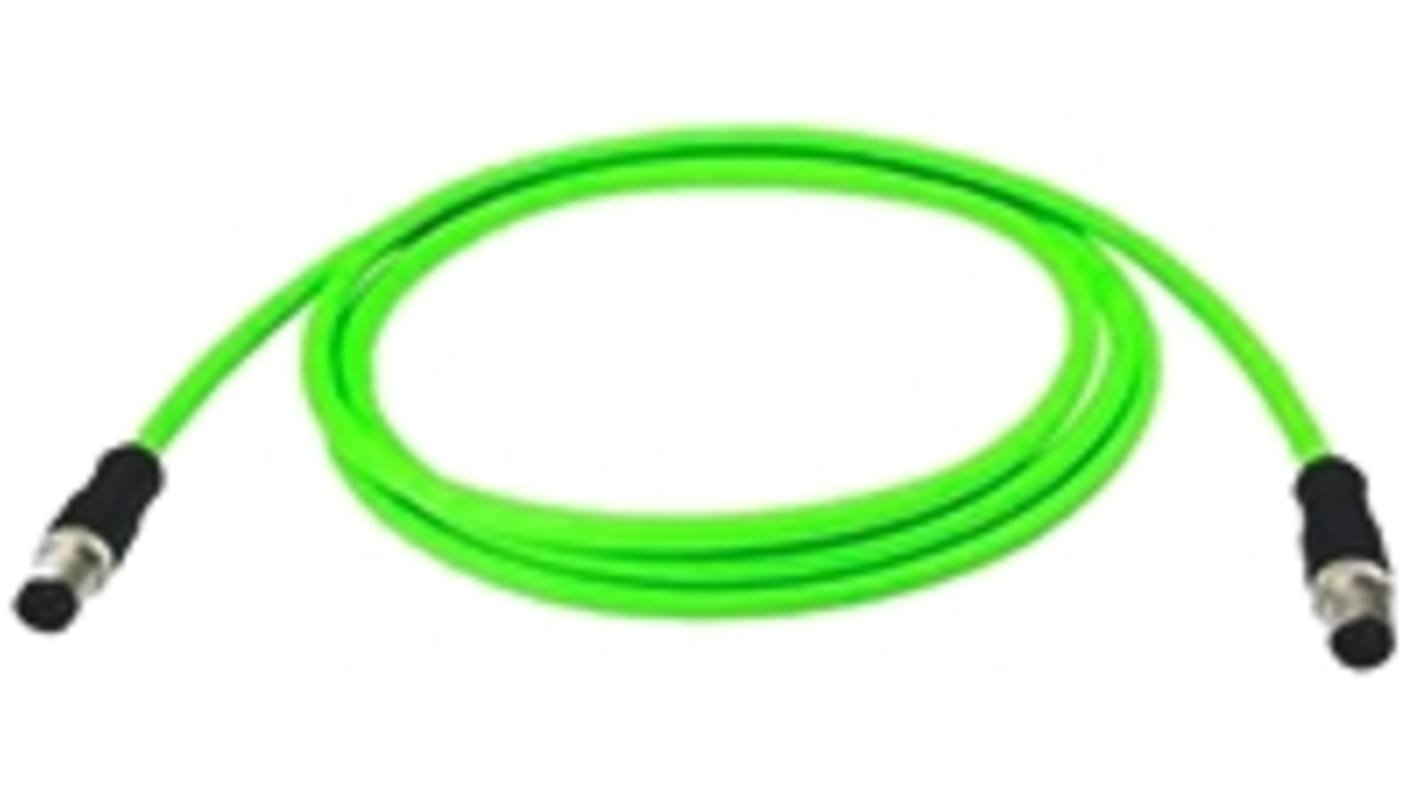

Telegartner Straight Male 4 way M12 to Straight Male 4 way M12 Sensor Actuator Cable, 1m

RS Stock No.:: 827-4473
Mfr. Part No.:: L80210A0001
Brand:: Telegartner

Telegartner Straight Male 4 way M12 to Straight Male 4 way M12 Sensor Actuator Cable, 1m

Price Each

£85.66

(exc. VAT)

£102.79

(inc. VAT)

Available to back order for despatch 22/08/2024

Units	Per unit
1 - 4	£85.66
5 +	£81.38

RS Stock No.:: 827-4473
Mfr. Part No.:: L80210A0001
Brand:: Telegartner

Technical Reference

STX M12x1 Series Connectors

Legislation and Compliance

COO (Country of Origin):: DE

Product Details

Patch Cords, STX M12x1 Series, 4 Way, D Coded

Telegartner STX M12x1, 4-pole, D-coded CAT.5E patch cables, ideal for ethernet applications. These M12 circular screw lock connector cable assemblies can transmit data rates of up to 100 Mbit/s in the PROFINET environment. Offered in M12 to M12 and M12 to RJ45 versions in a variety of lengths.The STX M12x1 series of 4 way patch cables can be used for many applications, such as security and video surveillance systems, production and manufacturing, renewable energy and for use with railway vehicles data systems.

Dustrpoof and watertight, IP67 rated (RJ45 IP20 rated)
Robust die cast housing
360 degree shielding
Vibration protection

Telegartner M12 Connectors and Cable Assemblies

Specifications

Attribute	Value
Number of Cores	4
Cross Sectional Area	0.34 mm²
Length	1m
Sheath Material	PUR
Sheath Colour	Green
Connector 1 Gender	Male
Connector 1 Orientation	Straight
Connector 1 Number of Contacts	4
Connector 1	M12
Connector 2	M12
Connector 2 Gender	Male
Connector 2 Number of Contacts	4
Connector 2 Housing Gender	Male
Connector 2 Orientation	Straight
Coding	D
Shielded/Unshielded	Unshielded
Connector 1 Housing Gender	Male
American Wire Gauge	22 AWG
