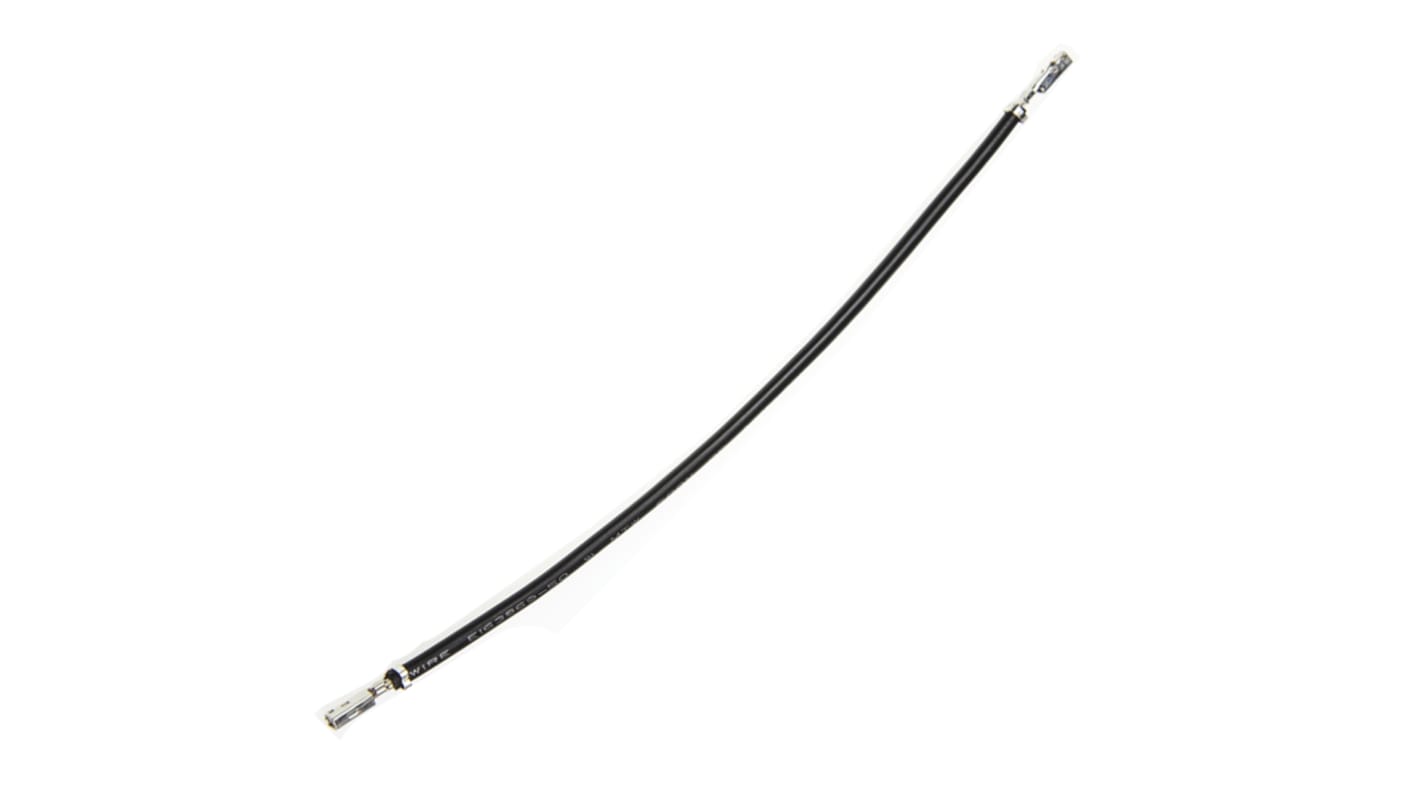

JST Pre-Crimped Lead, Black
- RS Stock No.:
- 820-1043
- Mfr. Part No.:
- 01SVTSVT-16L150
- Brand:
- JST
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 820-1043
- Mfr. Part No.:
- 01SVTSVT-16L150
- Brand:
- JST
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | JST | |
| Sheath Colour | Black | |
Select all | ||
|---|---|---|
Brand JST | ||
Sheath Colour Black | ||
- COO (Country of Origin):
- GB
JST VT 11.88mm Housing, Header and Contact
The VT range of 11.88mm pitch Wire-to- Board 12A connectors from JST have arm locking and mis-insertion features.
The Headers of the VT range have board locks for 1.6 mm thick PCBs for increased board retention.
Cable size for the VT Contact is 20-16 AWG with an insulation diameter of 2.7 ∼ 3.9 mm.
For a suitable Hand Crimp tool for the VT Contact see stock number 819-2700 .
The Headers of the VT range have board locks for 1.6 mm thick PCBs for increased board retention.
Cable size for the VT Contact is 20-16 AWG with an insulation diameter of 2.7 ∼ 3.9 mm.
For a suitable Hand Crimp tool for the VT Contact see stock number 819-2700 .
JST VT 11.88 mm Pitch Range
The JST VT Series is a disconnectable crimp style connector series which features: PC board locking device, misinsertion prevention and an arm-lock mechanism. The VT Series from JST is applicable to reinforced PC Boards with eyelets 1.6 mm thick.
