Molex Male 4 way Female 4 way DIN Connector
- RS Stock No.:
- 759-4993
- Mfr. Part No.:
- 1300130956
- Brand:
- Molex
Bulk discount available
Subtotal (1 unit)*
£27.92
(exc. VAT)
£33.50
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 08 February 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 14 | £27.92 |
| 15 + | £27.06 |
*price indicative
- RS Stock No.:
- 759-4993
- Mfr. Part No.:
- 1300130956
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Product Type | DIN Connector | |
| Series | 1R | |
| Number of Contacts A | 4 | |
| Connector Gender A | Male | |
| Connector Gender B | Female | |
| Number of Contacts B | 4 | |
| Standards/Approvals | Rohs vompliance | |
| IP Rating | IP68 | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Product Type DIN Connector | ||
Series 1R | ||
Number of Contacts A 4 | ||
Connector Gender A Male | ||
Connector Gender B Female | ||
Number of Contacts B 4 | ||
Standards/Approvals Rohs vompliance | ||
IP Rating IP68 | ||

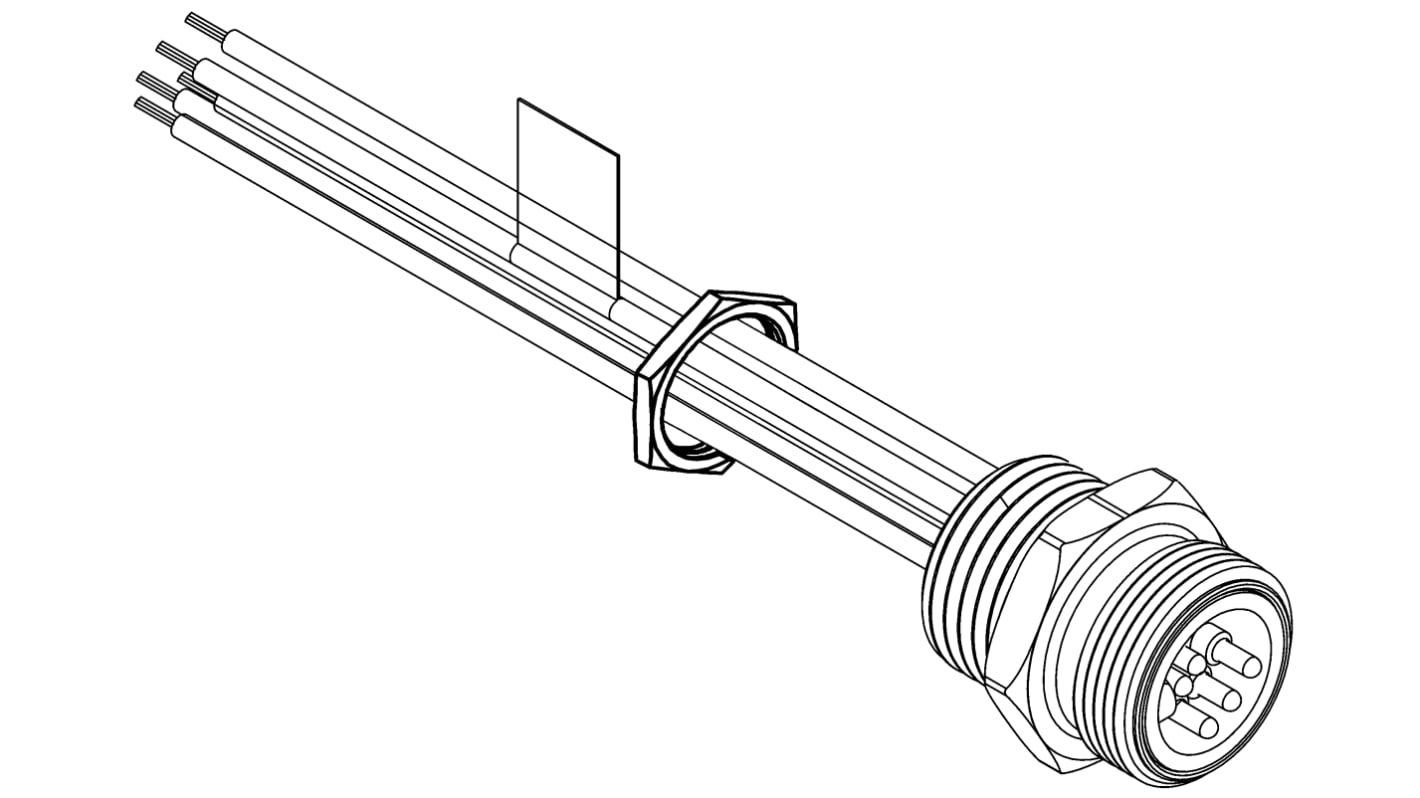

Brad® Mini-Change® A-Size Male Panel Mount Receptacles with Leads PG13.5
These Brad® Mini-Change® A-Size, male, straight, external thread Receptacles with Leads are front panel mount type.
Male Contacts have a low resistance design
PG13.5 mounting thread
BRAD Mini-Change
The Molex Brad Mini-Change Connector was the first quick-connect alternative to hardwiring and are noted for their quality and durability. The Brad Mini-Change Connector uses a Quad Beam design female contact to ensure conductivity. Rated at IP67 the Brad Mini-Change connectors can provide reliable solutions in a wide range of applications. The design of these Brad Mini-Change Connectors incorporates anti-vibration features, integral Strain Relief and Key Indicator.
