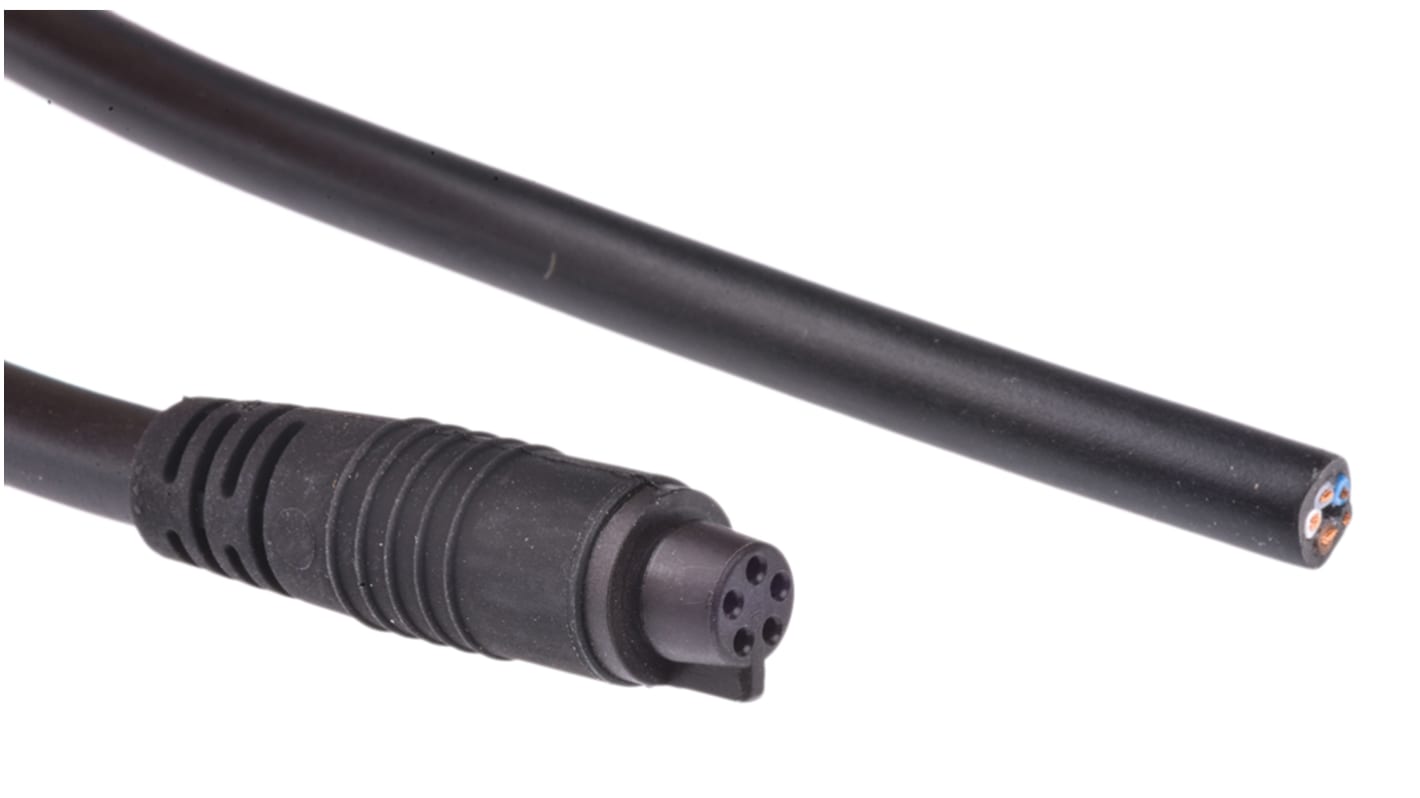

binder Female 5 way Snap-in 9mm Circular to Unterminated Sensor Actuator Cable, 2m
- RS Stock No.:
- 734-5307
- Distrelec Article No.:
- 303-90-143
- Mfr. Part No.:
- 77-7096-0000-10005-0200
- Brand:
- binder
Save 15% when you buy 500 units
Subtotal (1 unit)*
£18.36
(exc. VAT)
£22.03
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 41 unit(s) ready to ship
- Plus 67 unit(s) shipping from 09 October 2025
- Plus 20 unit(s) shipping from 11 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 49 | £18.36 |
50 - 99 | £17.61 |
100 - 249 | £16.88 |
250 - 499 | £16.20 |
500 + | £15.43 |
*price indicative
- RS Stock No.:
- 734-5307
- Distrelec Article No.:
- 303-90-143
- Mfr. Part No.:
- 77-7096-0000-10005-0200
- Brand:
- binder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | binder | |
Number of Cores | 5 | |
Cross Sectional Area | 0.25 mm² | |
Length | 2m | |
Connector 1 | Snap-in 9mm Circular | |
Connector 1 Gender | Female | |
Connector 1 Number of Contacts | 5 | |
Connector 2 | Unterminated | |
Voltage Rating | 60 V | |
Current Rating | 3 A | |
IP Rating | IP40 | |
American Wire Gauge | 24 AWG | |
Outer Diameter | 5mm | |
Select all | ||
---|---|---|
Brand binder | ||
Number of Cores 5 | ||
Cross Sectional Area 0.25 mm² | ||
Length 2m | ||
Connector 1 Snap-in 9mm Circular | ||
Connector 1 Gender Female | ||
Connector 1 Number of Contacts 5 | ||
Connector 2 Unterminated | ||
Voltage Rating 60 V | ||
Current Rating 3 A | ||
IP Rating IP40 | ||
American Wire Gauge 24 AWG | ||
Outer Diameter 5mm | ||
- COO (Country of Origin):
- DE
Binder Series 709 Subminiature Connectors, Over-moulded, Snap-in
Binder Series 709 connectors are single-ended cordsets with a PUR overmolded version of the Series 719 connectors. These connectors are environmentally protected to IP40 when mated. The Series 709 connectors are compact in size with only 9mm O.D. and the cordsets have standard cable lengths of 2 and 5 meters and the connectors are mating compatible with Binder Series 719.
Snap locking
Plastic connector shell
IP40 rated when mated
Rated at 3A
Gold contact plating
Plastic connector shell
IP40 rated when mated
Rated at 3A
Gold contact plating
Binder 709 Series Connectors
