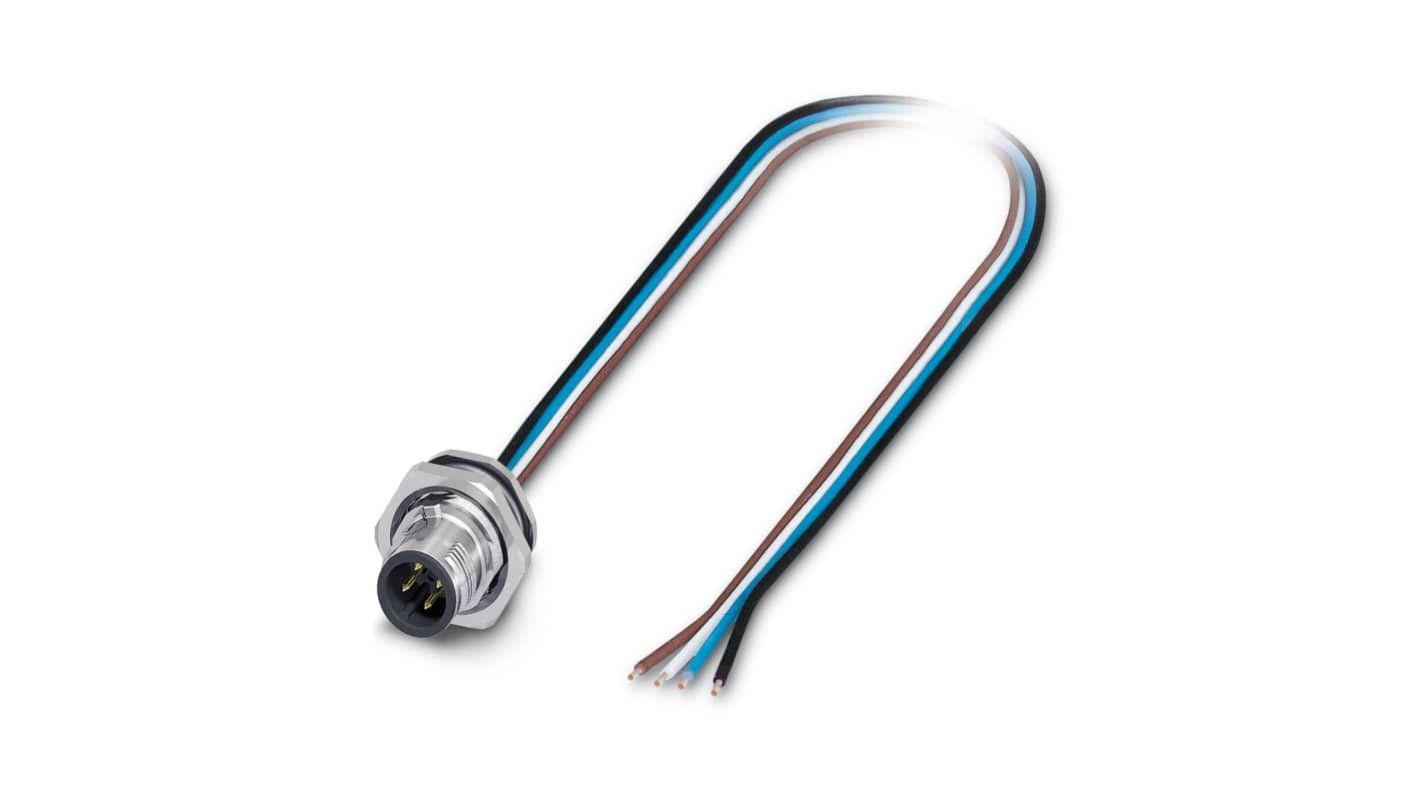

Phoenix Contact Male 4 way M12 to Unterminated Sensor Actuator Cable, 500mm

View all Sensor & Actuator Cables
Bulk discount available

Subtotal (1 unit)*

£17.42

(exc. VAT)

£20.90

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 57 unit(s) ready to ship
  • Plus 14 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£17.42
5 - 24£16.59
25 - 49£15.70
50 +£14.83

*price indicative

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
Phoenix Contact Straight Male 4 way M12 to Unterminated Sensor Actuator Cable, 500mm
RS Stock No.
721-1226

Each

£18.70

(exc. VAT)

£22.44

(inc. VAT)

RS Stock No.:
721-1272
Mfr. Part No.:
1419629
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Number of Cores

4

Cross Sectional Area

0.34 mm²

Length

500mm

Connector 1 Gender

Male

Connector 1 Number of Contacts

4

Connector 1

M12

Connector 2

Unterminated

Coding

A

Mounting Type

Panel Mount

Current Rating

4 A

Voltage Rating

250 V

IP Rating

IP67

Maximum Operating Temperature

+85°C

Conductor Material

Tinned Copper

American Wire Gauge

22 AWG

Minimum Operating Temperature

-25°C

Standards Met

cUL, cULus, EAC, UL

Conductor Resistance

= 57.6 mΩ/m

Operating Temperature Range

-25 → +85 °C

COO (Country of Origin):
DE

M12 Flush-type connector with individual litz wires, rear mounting


Sensor/ actuator flush-type connector
M12 SPEEDCON
Rear/ screw mounting with M16 thread
With 0.5 m TPE litz wire

Phoenix Contact Sensor Actuator Cable, 4A Current Rating, 500mm Length - SACC-DSI-M12MS-4CON-M16/0.5 - 1419629


Looking for a dependable and long-lasting data transmission option for your sensors and industrial equipment? Choose this sensor-actuator cable from Phoenix Contact. Its 4-core design means that you can transmit data to four circuits at the same time, reducing cabling requirements.
At one end, there's an M12 connector with tinned copper conductors that have a low electrical resistance of around 57.6 mΩ/m, providing a stable connection. Gold plating makes the connector resistant to corrosion, so you can depend on it for long-term performance. Die-cast zinc knurls lock the adapter and prevent it from loosening in vibrating systems. A short cable length of 500mm reduces clutter on your equipment and makes for a tidy setup.
An IP67 (ingress protection) rating indicates the cable is dust-tight and can withstand immersion in up to 1m of water for 30 minutes, so it's a good fit for marine applications.

• Light weight of 23g for easy handling and minimal strain on equipment
• Low-rated current of 4A for energy efficiency and reduced heat dissipation
• Nitrile rubber seals to protect against dust and support optimal performance
