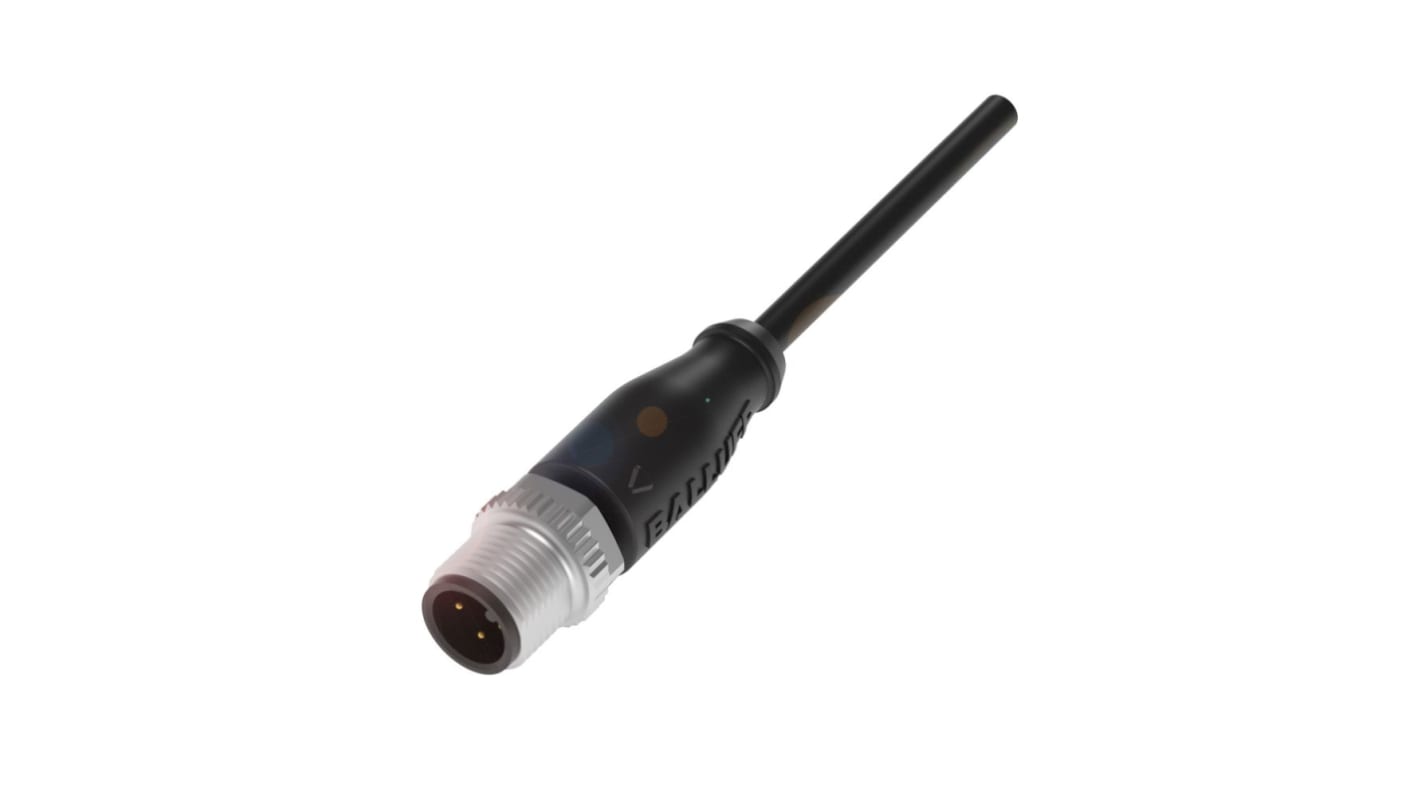

BALLUFF Straight Male M12 to Unterminated Sensor Actuator Cable, 2m
- RS Stock No.:
- 241-9994
- Mfr. Part No.:
- BCC031N
- Brand:
- BALLUFF
15 In stock - FREE next working day delivery available
Price Each
£10.27
(exc. VAT)
£12.32
(inc. VAT)
Units | Per unit |
|---|---|
| 1 + | £10.27 |
- RS Stock No.:
- 241-9994
- Mfr. Part No.:
- BCC031N
- Brand:
- BALLUFF
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
The Balluff single-ended cordset is used for signals, data and power transmission. It is a PUR black, 2m, drag chain compatible cable having M12x1-male, straight, 4-pin, A-coded connection with 4 conductors and 4.0 A rated current (at 40 °C).
Complementary switching output
0.34 mm² Conductor cross-section
-50 °C to 90 °C cable temperature at fixed routing
-25 °C to 90 °C cable temperature at flexible routing
250 VDC/ 250 VAC Operating voltage Ub
IP67, IP68, IP69K protection rating
CE, cULus, E
0.34 mm² Conductor cross-section
-50 °C to 90 °C cable temperature at fixed routing
-25 °C to 90 °C cable temperature at flexible routing
250 VDC/ 250 VAC Operating voltage Ub
IP67, IP68, IP69K protection rating
CE, cULus, E
Specifications
Attribute | Value |
|---|---|
| Series | BCC03 |
| Number of Cores | 4 |
| Sheath Colour | Black |
| Length | 2m |
| Sheath Material | PUR |
| Connector 1 Gender | Male |
| Connector 1 | M12 |
| Connector 1 Orientation | Straight |
| Connector 2 | Unterminated |
| Coding | A |
| IP Rating | IP67, IP68, IP69K |
