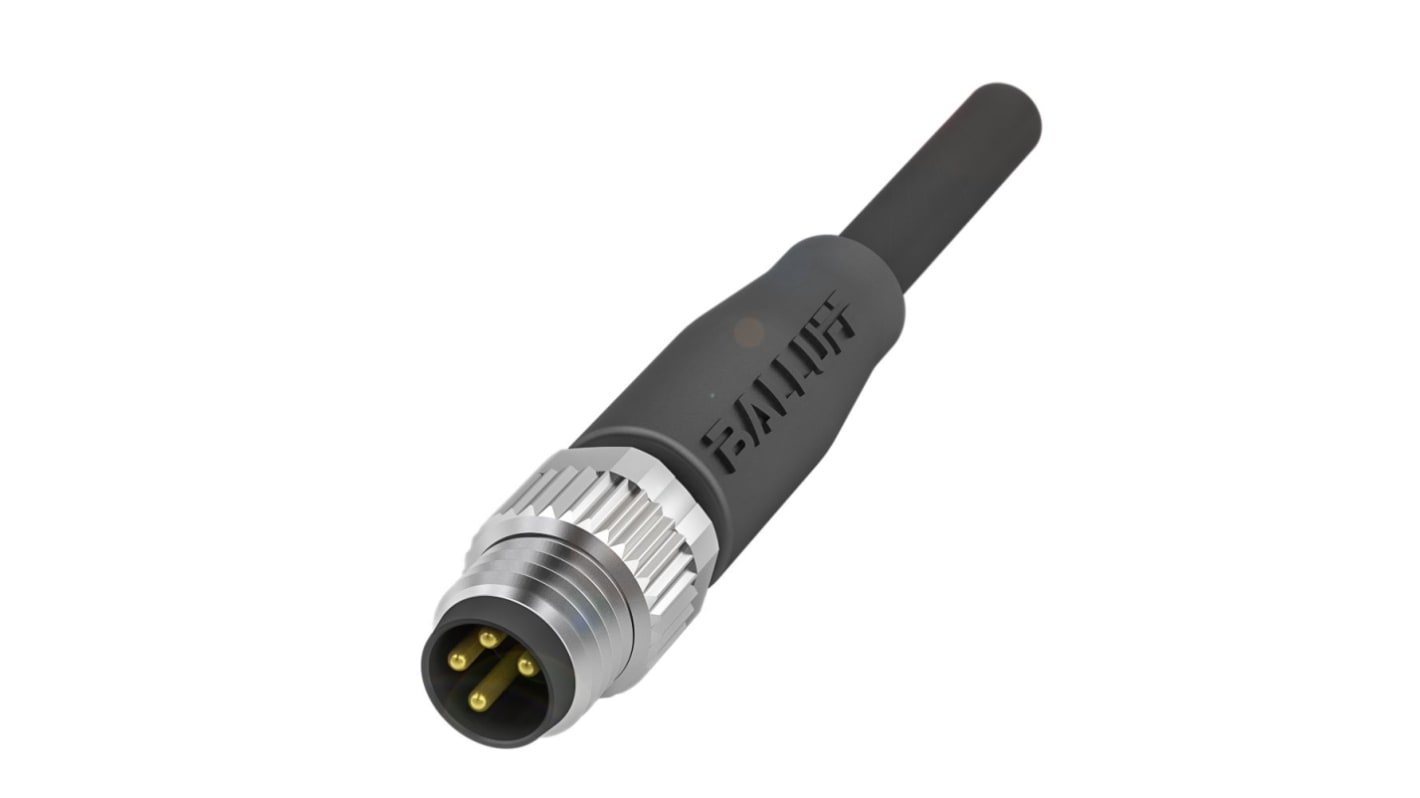

BALLUFF Straight Male M8 to Unterminated Sensor Actuator Cable, 5m

View all Sensor & Actuator Cables

Subtotal (1 unit)*

£15.57

(exc. VAT)

£18.68

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 24 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£15.57

*price indicative

RS Stock No.:
241-9983
Mfr. Part No.:
BCC02MW
Brand:
BALLUFF
Find similar products by selecting one or more attributes.
Select all

Brand

BALLUFF

Series

BCC02

Number of Cores

4

Length

5m

Sheath Colour

Black

Sheath Material

PUR

Connector 1

M8

Connector 1 Gender

Male

Connector 1 Orientation

Straight

Connector 2

Unterminated

Coding

A

Current Rating

4.0 A

Voltage Rating

60 V ac/dc

IP Rating

IP67, IP69K

COO (Country of Origin):
HU
The Balluff single-ended cordset is used for signals, data and power transmission. It is a PUR black, 5m, drag chain compatible cable having M8x1-male, straight, 4-pin, A-coded connection with 4 conductors and 4.0 A rated current (at 40 °C).

Complementary switching output
0.34 mm² Conductor cross-section
-50 °C to 90 °C cable temperature at fixed routing
-25 °C to 90 °C cable temperature at flexible routing
60 VDC / 60 VAC Operating voltage Ub
IP67, IP69K protection rating
CE, cULus, EAC, WEE
