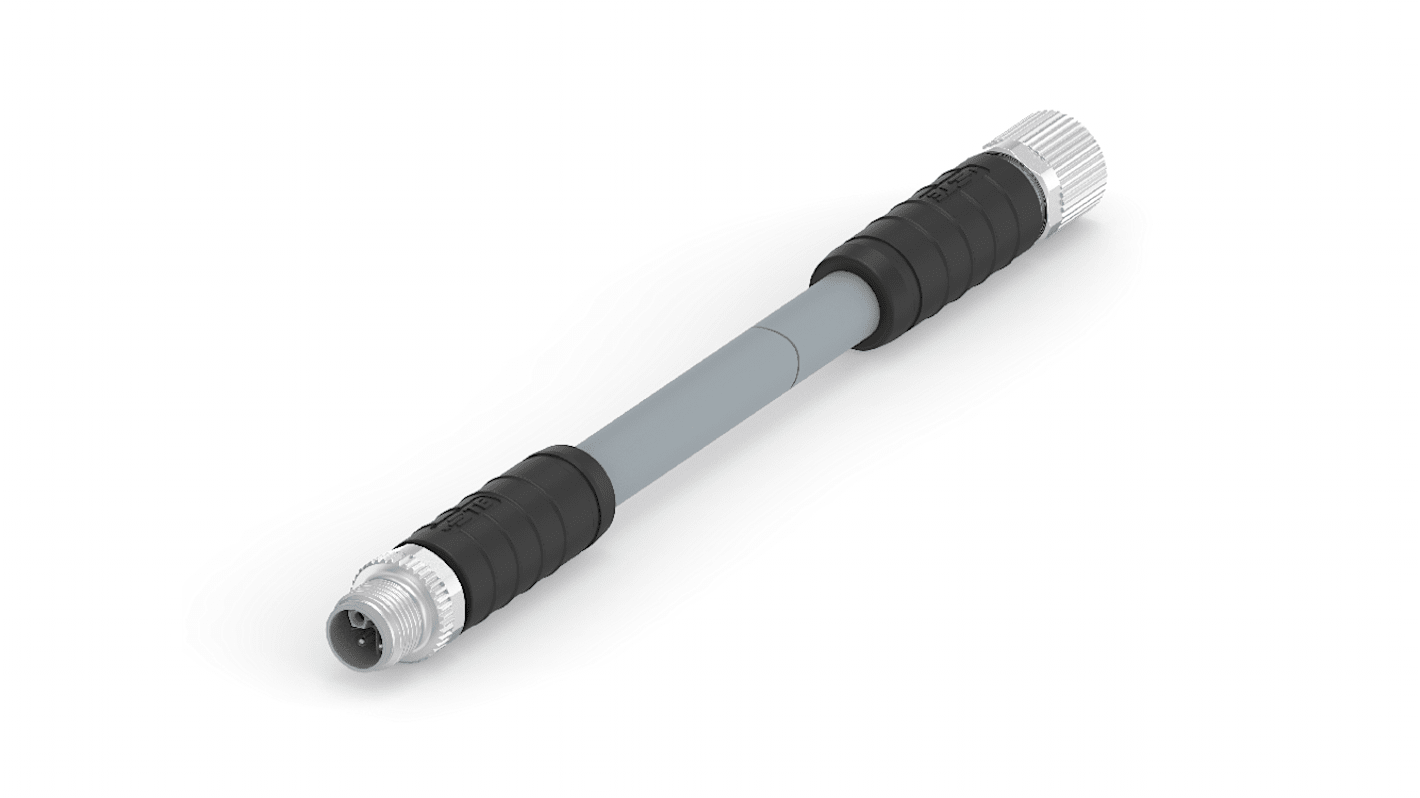

TE Connectivity Straight Male 5 way M12 to Straight Female 5 way M12 Sensor Actuator Cable, 5m
- RS Stock No.:
- 238-4567
- Mfr. Part No.:
- T41525C9L25-005
- Brand:
- TE Connectivity
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 238-4567
- Mfr. Part No.:
- T41525C9L25-005
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | M12 L-Code | |
| Cross Sectional Area | 1.5 mm² | |
| Sheath Colour | Grey | |
| Sheath Material | Nylon | |
| Length | 5m | |
| Connector 1 | M12 | |
| Connector 1 Orientation | Straight | |
| Connector 1 Number of Contacts | 5 | |
| Connector 1 Gender | Male | |
| Connector 2 Housing Gender | Female | |
| Connector 2 Gender | Female | |
| Connector 2 Orientation | Straight | |
| Connector 2 Number of Contacts | 5 | |
| Connector 2 | M12 | |
| Coding | L | |
| Current Rating | 12 A | |
| Voltage Rating | 63 V | |
| IP Rating | IP67 | |
| Number of Strands | 75 | |
| Standards Met | UL | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +85°C | |
| Outer Diameter | 9.1mm | |
| Conductor Material | Copper | |
| Insulation Material | PP | |
| Connector 1 Housing Gender | Male | |
| American Wire Gauge | 16 AWG | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series M12 L-Code | ||
Cross Sectional Area 1.5 mm² | ||
Sheath Colour Grey | ||
Sheath Material Nylon | ||
Length 5m | ||
Connector 1 M12 | ||
Connector 1 Orientation Straight | ||
Connector 1 Number of Contacts 5 | ||
Connector 1 Gender Male | ||
Connector 2 Housing Gender Female | ||
Connector 2 Gender Female | ||
Connector 2 Orientation Straight | ||
Connector 2 Number of Contacts 5 | ||
Connector 2 M12 | ||
Coding L | ||
Current Rating 12 A | ||
Voltage Rating 63 V | ||
IP Rating IP67 | ||
Number of Strands 75 | ||
Standards Met UL | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +85°C | ||
Outer Diameter 9.1mm | ||
Conductor Material Copper | ||
Insulation Material PP | ||
Connector 1 Housing Gender Male | ||
American Wire Gauge 16 AWG | ||
- COO (Country of Origin):
- CN
The TE Connectivity M12 Power L-code cable assembly are an extension of the current M12 IEC standard and have been selected by PROFIBUS and PROFINET International as the standard for 24-volt power supply systems used in PROFINET devices. The M12 power cable assembly are available in both male and female connectors and suitable for every purpose with its conductor size from 1.5 mm² up to 2.5 mm² allowing for a more compact build of a high-power solutions for automation devices. The L-coding version is designed for DC power supplies with 63 V DC / 16 A, where a high current and low voltage is required making ideal for fieldbus Ethernet I/O boxes, Ethernet systems, network Devices, motors and drives and valve applications.
Unit remains protected and fully operational in most industrial applications
Secured signal connections and data transmission
Protection against mismatching with coded pin connector patterns
PNO approved for immediate implementation into PROFINET standard and embracing miniaturization of distribution boxes
One stop shop solution with broad product portfolio with cable jacket colours and material options
Secured signal connections and data transmission
Protection against mismatching with coded pin connector patterns
PNO approved for immediate implementation into PROFINET standard and embracing miniaturization of distribution boxes
One stop shop solution with broad product portfolio with cable jacket colours and material options
