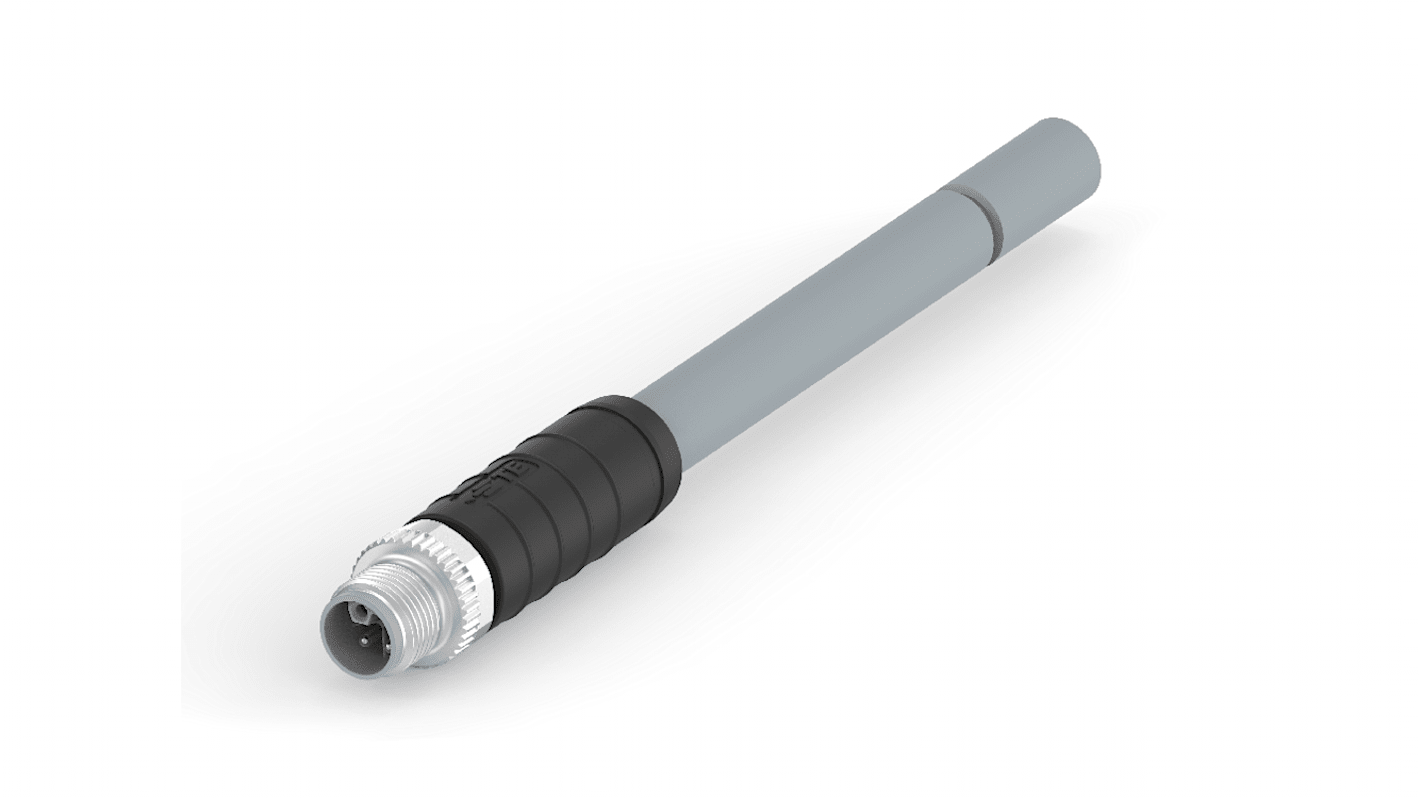

TE Connectivity Straight Male 5 way M12 to Unterminated Sensor Actuator Cable, 2m
- RS Stock No.:
- 238-4496
- Mfr. Part No.:
- T41511B9L25-020
- Brand:
- TE Connectivity
Subtotal (1 bag of 25 units)*
£678.50
(exc. VAT)
£814.25
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 25 + | £27.14 | £678.50 |
*price indicative
- RS Stock No.:
- 238-4496
- Mfr. Part No.:
- T41511B9L25-020
- Brand:
- TE Connectivity
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | M12 L-Code | |
| Cross Sectional Area | 2.5 mm² | |
| Sheath Colour | Grey | |
| Length | 2m | |
| Sheath Material | Nylon | |
| Connector 1 Number of Contacts | 5 | |
| Connector 1 | M12 | |
| Connector 1 Orientation | Straight | |
| Connector 1 Gender | Male | |
| Connector 2 | Unterminated | |
| Coding | L | |
| Voltage Rating | 63 V | |
| Current Rating | 16 A | |
| IP Rating | IP67 | |
| Conductor Material | Copper | |
| Maximum Operating Temperature | +85°C | |
| Standards Met | UL | |
| Minimum Operating Temperature | -25°C | |
| Connector 1 Housing Gender | Male | |
| Number of Strands | 124 | |
| Insulation Material | PP | |
| Outer Diameter | 9.65mm | |
| American Wire Gauge | 14 AWG | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series M12 L-Code | ||
Cross Sectional Area 2.5 mm² | ||
Sheath Colour Grey | ||
Length 2m | ||
Sheath Material Nylon | ||
Connector 1 Number of Contacts 5 | ||
Connector 1 M12 | ||
Connector 1 Orientation Straight | ||
Connector 1 Gender Male | ||
Connector 2 Unterminated | ||
Coding L | ||
Voltage Rating 63 V | ||
Current Rating 16 A | ||
IP Rating IP67 | ||
Conductor Material Copper | ||
Maximum Operating Temperature +85°C | ||
Standards Met UL | ||
Minimum Operating Temperature -25°C | ||
Connector 1 Housing Gender Male | ||
Number of Strands 124 | ||
Insulation Material PP | ||
Outer Diameter 9.65mm | ||
American Wire Gauge 14 AWG | ||
