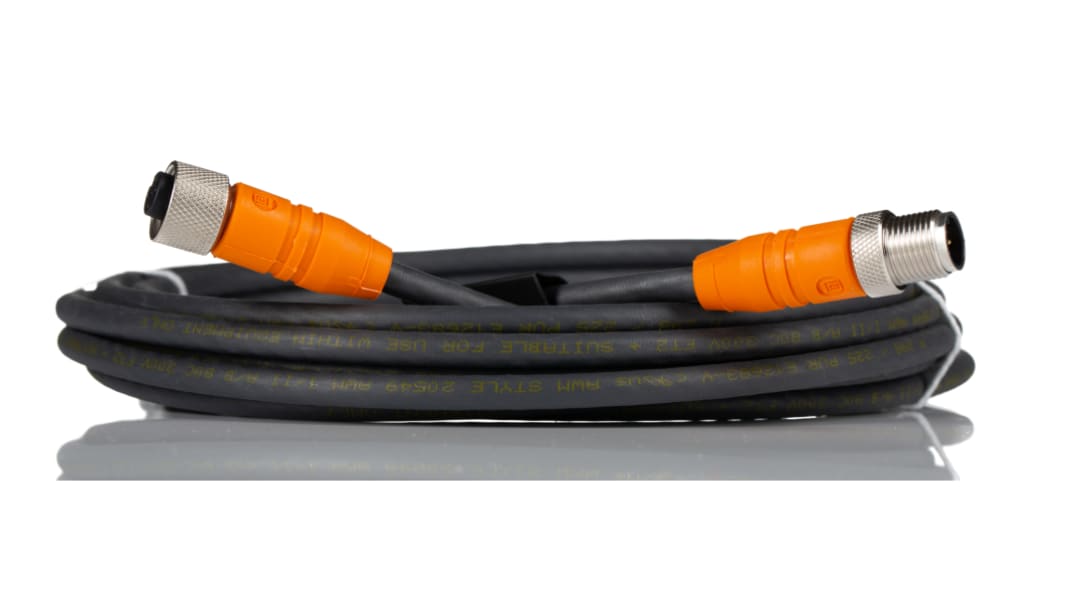

Lumberg Automation Straight Male 5 way M12 to Straight Female 5 way M12 Sensor Actuator Cable, 5m

RS Stock No.:: 197-2706
Distrelec Article No.:: 304-09-400
Mfr. Part No.:: 61630 RSTS 5-RKTS 5-298/5 M
Brand:: Lumberg Automation

Lumberg Automation Straight Male 5 way M12 to Straight Female 5 way M12 Sensor Actuator Cable, 5m

Subtotal (1 unit)*

£46.57

(exc. VAT)

£55.88

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

2 unit(s) ready to ship
Plus 1 unit(s) ready to ship from another location
Plus 16 unit(s) shipping from 13 November 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£46.57

*price indicative

Sensor & Actuator cables to Sensor Accessories

Complete Your Connection with the Right Accessories

Sensor & actuator cables are essential for reliable connectivity—but to get the most out of your setup, don’t overlook the accessories. From mounting hardware to protective covers and connectors, our sensor accessories help you install, secure, and optimise your system. If you're browsing cables, explore our accessories range to ensure a clean, efficient, and long-lasting installation.

Shop Now

RS Stock No.:: 197-2706
Distrelec Article No.:: 304-09-400
Mfr. Part No.:: 61630 RSTS 5-RKTS 5-298/5 M
Brand:: Lumberg Automation

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Lumberg Automation
	Series	RSTS
	Number of Cores	5
	Cross Sectional Area	0.34 mm²
	Sheath Colour	Black
	Length	5m
	Sheath Material	Polyurethane PUR
	Connector 1 Gender	Male
	Connector 1 Number of Contacts	5
	Connector 1 Orientation	Straight
	Connector 1	M12
	Connector 2	M12
	Connector 2 Number of Contacts	5
	Connector 2 Orientation	Straight
	Connector 2 Gender	Female
	Connector 2 Housing Gender	Female
	Coding	A
	Shielded/Unshielded	Shielded
	Current Rating	4 A
	Voltage Rating	60 V
	IP Rating	IP65, IP67, IP69K
	Insulation Material	PP
	Standards Met	RoHS Compliant
	Minimum Operating Temperature	-40°C
	Cable Shape	Round
	Conductor Material	Copper
	Maximum Operating Temperature	+90°C
	Connector 1 Housing Gender	Male
	Outer Diameter	5.85mm
	Operating Temperature Range	-40 → +90 °C

	Select all
	Brand Lumberg Automation
	Series RSTS
	Number of Cores 5
	Cross Sectional Area 0.34 mm²
	Sheath Colour Black
	Length 5m
	Sheath Material Polyurethane PUR
	Connector 1 Gender Male
	Connector 1 Number of Contacts 5
	Connector 1 Orientation Straight
	Connector 1 M12
	Connector 2 M12
	Connector 2 Number of Contacts 5
	Connector 2 Orientation Straight
	Connector 2 Gender Female
	Connector 2 Housing Gender Female
	Coding A
	Shielded/Unshielded Shielded
	Current Rating 4 A
	Voltage Rating 60 V
	IP Rating IP65, IP67, IP69K
	Insulation Material PP
	Standards Met RoHS Compliant
	Minimum Operating Temperature -40°C
	Cable Shape Round
	Conductor Material Copper
	Maximum Operating Temperature +90°C
	Connector 1 Housing Gender Male
	Outer Diameter 5.85mm
	Operating Temperature Range -40 → +90 °C

COO (Country of Origin):: CZ

Belden Lumberg Automation Sensor Actuator Cable, Multicore, ø1.30mm Insulation Wire Diameter - RSTS Series - 61630 RSTS 5-RKTS 5-298/5 M

Turn to this sensor actuator cable from Belden Lumberg Automation for stable data transfer in your automated industrial system. An integrated mesh wire shield protects the cable from EMI so you can trust it to deliver clear signals. It comes with robust PP insulation that helps to protect it from overheating and electric hazards. Thanks to an operating temperature range of -40°C to +90°C, you can safely use this cable in challenging environments.

Features & Benefits

• PUR outer sheath is chemical-resistant, so withstands demanding conditions
• Straight connectors for easy front-facing plug-in
• Length of 5m delivers enough stock for a long-range connection

Applications

• Safety systems
• Hydraulic equipment
• Bottling plants
• Aviation engineering

Where should I use a multicore cable?

Thanks to the five wires it contains, you can use this multicore cable in applications where you need to send multiple signal transmissions simultaneously from a single unit.
