Lumberg Automation Straight Male 4 way M12 to Straight Female 4 way M12 Sensor Actuator Cable, 1m

View all Sensor & Actuator Cables

Subtotal (1 unit)*

£26.92

(exc. VAT)

£32.30

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 11 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£26.92

*price indicative

RS Stock No.:
197-2557
Mfr. Part No.:
46416 RSTS 4-RKTS 4-288/1 M
Brand:
Lumberg Automation
Find similar products by selecting one or more attributes.
Select all

Brand

Lumberg Automation

Series

RSTS

Cross Sectional Area

0.34 mm²

Number of Cores

4

Length

1m

Sheath Colour

Black

Sheath Material

PUR

Connector 1 Number of Contacts

4

Connector 1 Orientation

Straight

Connector 1 Gender

Male

Connector 1

M12

Connector 2 Number of Contacts

4

Connector 2 Orientation

Straight

Connector 2 Gender

Female

Connector 2

M12

Current Rating

4 A

Voltage Rating

60 V

IP Rating

IP65, IP67, IP69K

Outer Diameter

5.50mm

Oil Resistant

Yes

Conductor Material

Copper

Fire Behaviour

Halogen Free

Insulation Material

PP

Minimum Bend Radius

5 x D

COO (Country of Origin):
CZ

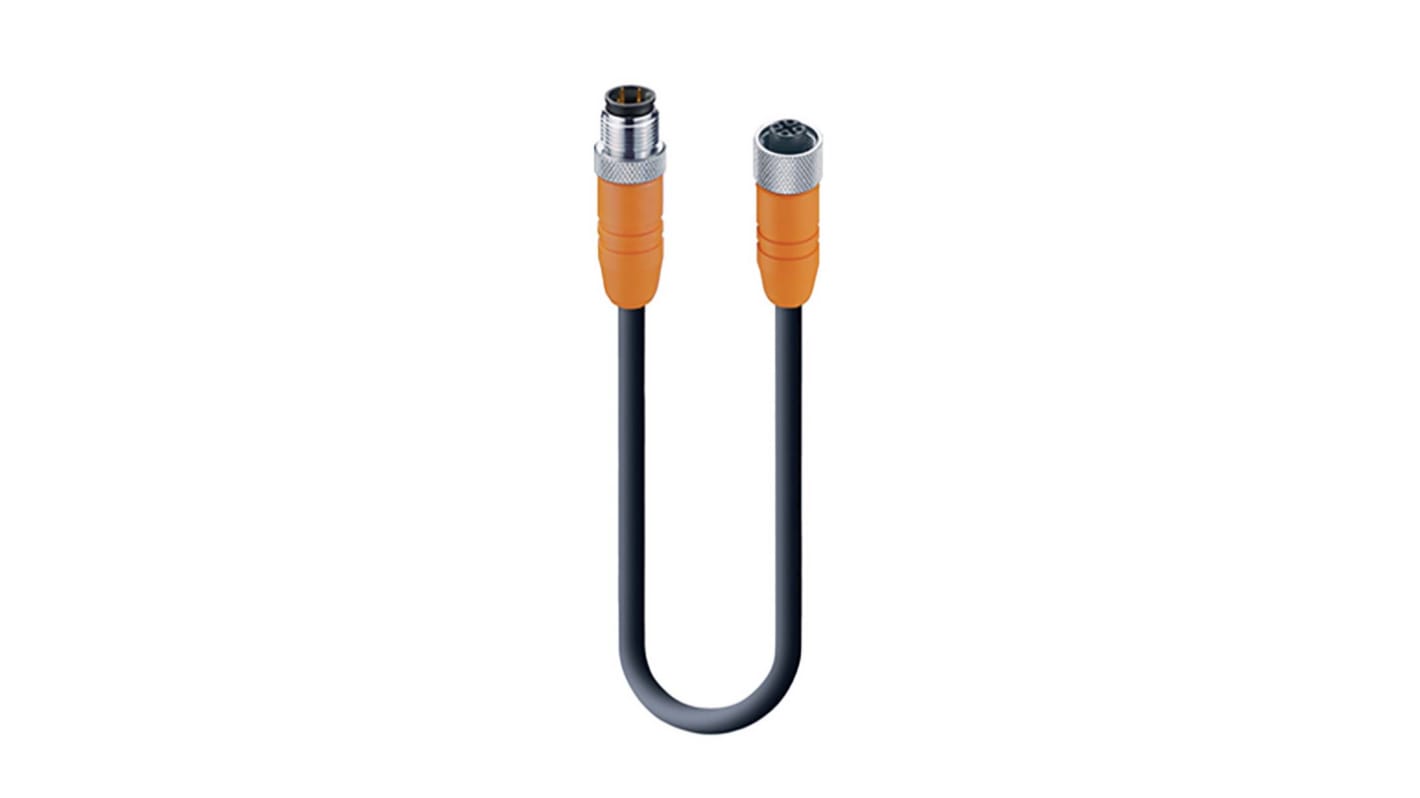

The Belden sensor/actuator double-ended cordset has 4-pin M12 straight male connector to 4-pin M12 straight female. The cable length is 1m. The electrical voltage rating is 50V AC / 60V DC and a current rating is 4A.

A-Coded
Body colour is orange
Contact base is CuSn
Operating temperature is -40°C to +90°C
