Lumberg Automation Straight Male 4 way M12 to Straight Female 4 way M12 Sensor Actuator Cable, 3m

View all Sensor & Actuator Cables

Subtotal (1 unit)*

£31.44

(exc. VAT)

£37.73

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 10 unit(s) ready to ship
  • Plus 1 unit(s) ready to ship from another location
  • Plus 10 unit(s) shipping from 28 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£31.44

*price indicative

RS Stock No.:
197-2563
Mfr. Part No.:
49311 RSTS 4-RKTS 4-288/3 M
Brand:
Lumberg Automation
Find similar products by selecting one or more attributes.
Select all

Brand

Lumberg Automation

Series

RSTS

Cross Sectional Area

0.34 mm²

Number of Cores

4

Sheath Material

PUR

Sheath Colour

Black

Length

3m

Connector 1 Gender

Male

Connector 1

M12

Connector 1 Number of Contacts

4

Connector 1 Orientation

Straight

Connector 2 Gender

Female

Connector 2 Orientation

Straight

Connector 2 Number of Contacts

4

Connector 2

M12

Voltage Rating

60 V

Current Rating

4 A

IP Rating

IP65, IP67, IP69K

Fire Behaviour

Halogen Free

Outer Diameter

5.50mm

Oil Resistant

Yes

Minimum Bend Radius

5 x D

Insulation Material

PP

Conductor Material

Copper

COO (Country of Origin):
CZ

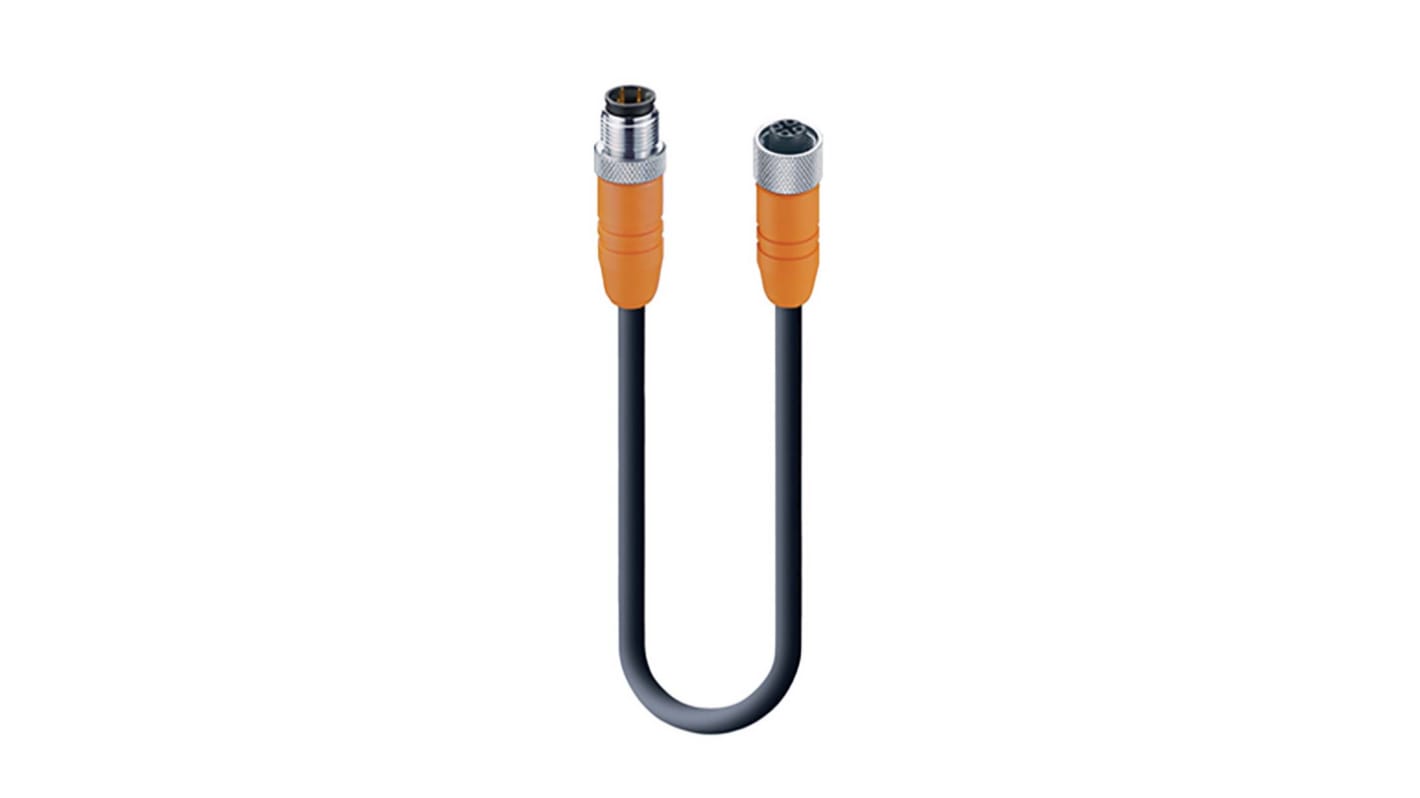

The Belden sensor/actuator double-ended cordset has 4-pin M12 straight male connector to 4-pin M12 straight female. The cable length is 3m. The electrical voltage rating is 50V AC / 60V DC and a current rating is 4A.

A-Coded
Body colour is orange
Contact base is CuSn
Operating temperature is -40°C to +90°C
