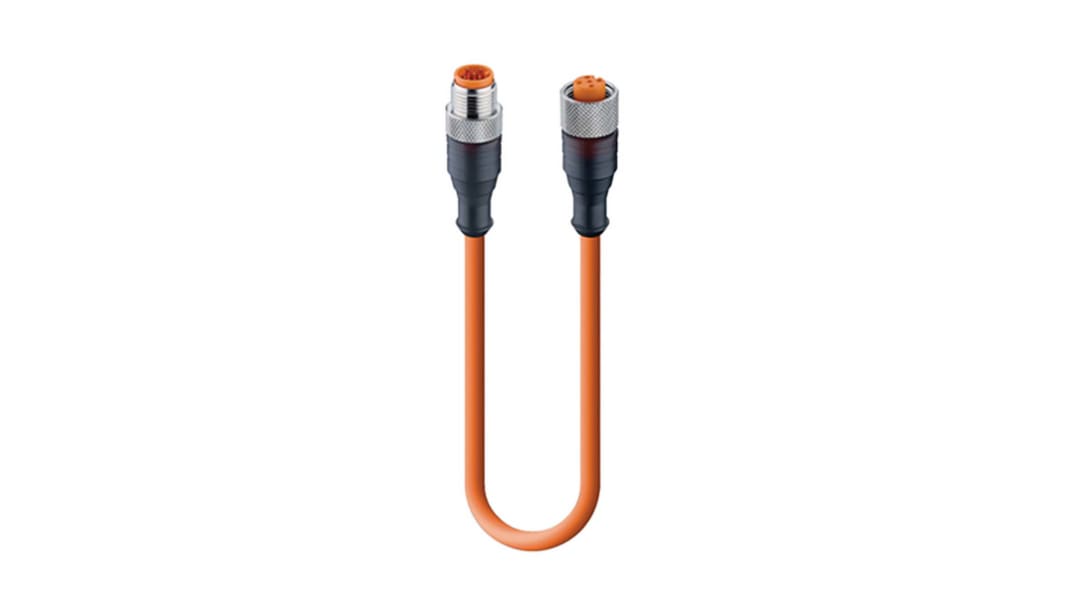

Lumberg Automation Straight Male 5 way M12 to Straight Female 5 way M12 Sensor Actuator Cable, 300mm

RS Stock No.:: 197-2575
Mfr. Part No.:: 12029 RST 5-RKT 5-259/0,3 M
Brand:: Lumberg Automation

Lumberg Automation Straight Male 5 way M12 to Straight Female 5 way M12 Sensor Actuator Cable, 300mm

4 In stock - FREE next working day delivery available

Price Each

£21.82

(exc. VAT)

£26.18

(inc. VAT)

Units	Per unit
1 +	£21.82

RS Stock No.:: 197-2575
Mfr. Part No.:: 12029 RST 5-RKT 5-259/0,3 M
Brand:: Lumberg Automation

Technical Reference

Datasheet - 12029

Legislation and Compliance

COO (Country of Origin):: CZ

Product Details

The Belden sensor/actuator double-ended cordset has 5-pin M12 straight Female connector to 5-pin M12 straight female. The cable length is 0.3m. The electrical voltage rating is 50V AC/60V DC and a current rating is 4A.

A-coded
Body colour is translucent
Contact base material is CuSn
Operating temperature is -40°C to +90°C

Specifications

Attribute	Value
Series	RST
Number of Cores	5
Cross Sectional Area	0.50 mm²
Length	300mm
Sheath Material	PUR
Sheath Colour	Orange
Connector 1	M12
Connector 1 Number of Contacts	5
Connector 1 Orientation	Straight
Connector 1 Gender	Male
Connector 2 Orientation	Straight
Connector 2	M12
Connector 2 Number of Contacts	5
Connector 2 Gender	Female
Current Rating	4 A
Voltage Rating	60 V
IP Rating	IP65, IP67, IP68, IP69K
Outer Diameter	5.50mm
American Wire Gauge	20 AWG
Insulation Material	PP
Fire Behaviour	Flame Retardant
Conductor Material	Copper
Minimum Bend Radius	5 x cable diameter
