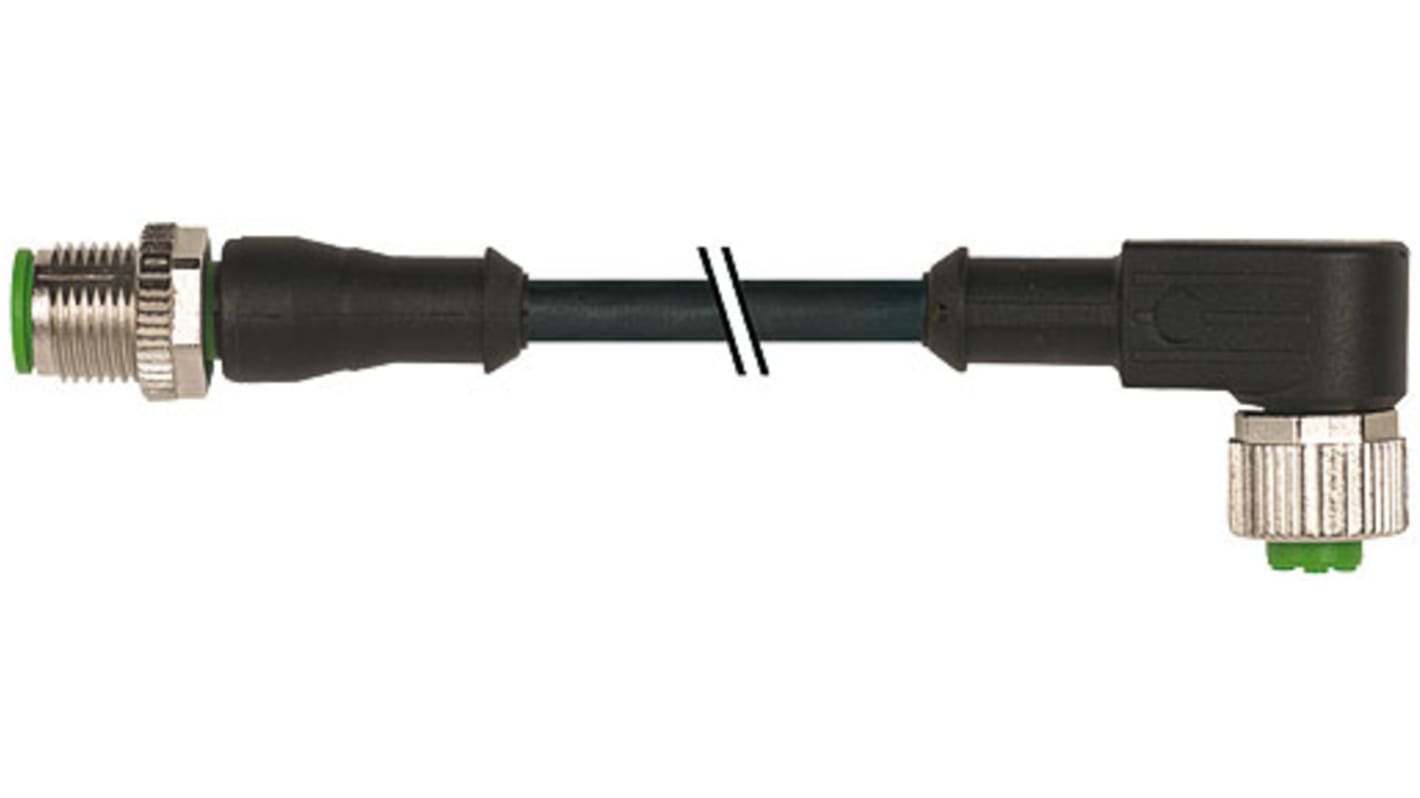

Murrelektronik Limited Straight Male 4 way M12 to Right Angle Female 4 way M12 Sensor Actuator Cable, 1.5m

RS Stock No.:: 196-0697
Mfr. Part No.:: 7000-40121-6340150
Brand:: Murrelektronik Limited

Murrelektronik Limited Straight Male 4 way M12 to Right Angle Female 4 way M12 Sensor Actuator Cable, 1.5m

Bulk discount available

Subtotal (1 unit)**

£23.88

(exc. VAT)

£28.66

(inc. VAT)

8 In stock - FREE next working day delivery available*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Units	Per unit
1 - 4	£23.88
5 - 9	£23.16
10 - 24	£21.73
25 +	£19.10

**price indicative

RS Stock No.:: 196-0697
Mfr. Part No.:: 7000-40121-6340150
Brand:: Murrelektronik Limited

7000-40121-6340150 Datasheet

Attribute	Value
Series	A-Coded
Cross Sectional Area	0.34 mm²
Number of Cores	4
Sheath Colour	Black
Length	1.5m
Sheath Material	PUR
Connector 1 Number of Contacts	4
Connector 1	M12
Connector 1 Orientation	Straight
Connector 1 Gender	Male
Connector 2 Orientation	Right Angle
Connector 2 Gender	Female
Connector 2	M12
Connector 2 Housing Gender	Female
Connector 2 Number of Contacts	4
Current Rating	4 A
Voltage Rating	30 V ac/dc, 250 V ac/dc
IP Rating	IP65, IP66K, IP67
Minimum Operating Temperature	-25 (Mobile) °C, -40 (Fixed) °C
Size of Strands	0.1 mm
Fire Behaviour	Flame Retardant
Minimum Bend Radius	22.5 (Fixed) mm, 45 (Moving) mm
Maximum Operating Temperature	+80 (Fixed, +85 °C, Mobile) °C
Conductor Resistance	57 O/km
American Wire Gauge	22 AWG
Outer Diameter	4.5mm
Operating Temperature Range	-25 → +80 (Mobile) °C, -25 → +85 °C, -40 → +80 (Fixed) °C
Core Strands	42 x 0.1 mm
Connector 1 Housing Gender	Male
Oil Resistant	Yes
Cable Shape	Single Core
Number of Strands	42

Murrelektronik Limited Straight Male 4 way M12 to Right Angle Female 4 way M12 Sensor Actuator Cable, 1.5m
