- RS Stock No.:
- 196-0691
- Mfr. Part No.:
- 7000-12221-6340150
- Brand:
- Murrelektronik Limited
23 In stock - FREE next working day delivery available
Added
Price Each
£14.22
(exc. VAT)
£17.06
(inc. VAT)
Units | Per unit |
1 - 4 | £14.22 |
5 - 9 | £13.81 |
10 - 24 | £12.97 |
25 + | £11.39 |
- RS Stock No.:
- 196-0691
- Mfr. Part No.:
- 7000-12221-6340150
- Brand:
- Murrelektronik Limited
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CZ
Product Details

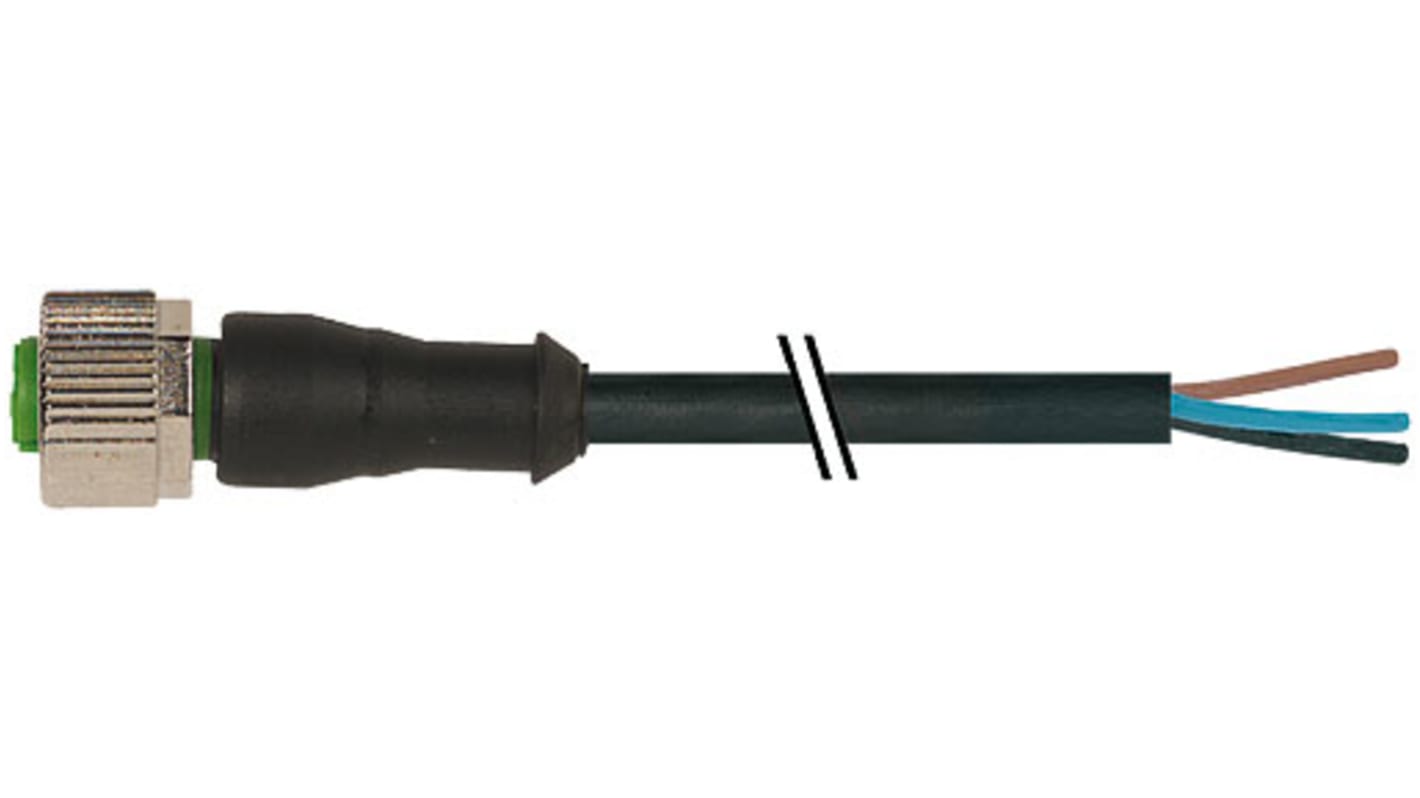

M12, female, straight, 4 pole to open en
Specifications
Attribute | Value |
---|---|
Series | A-Coded |
Number of Cores | 4 |
Cross Sectional Area | 0.34 mm² |
Sheath Colour | Black |
Sheath Material | PUR |
Length | 1.5m |
Connector 1 Orientation | Straight |
Connector 1 Gender | Female |
Connector 1 | M12 |
Connector 1 Number of Contacts | 4 |
Connector 2 | Unterminated |
Current Rating | 4 A |
Voltage Rating | 30 V ac/dc, 250 V ac/dc |
IP Rating | IP65, IP66K, IP67 |
American Wire Gauge | 22 AWG |
Maximum Operating Temperature | +80 (Fixed, +85 °C, Mobile) °C |
Oil Resistant | Yes |
Outer Diameter | 4.5mm |
Cable Shape | Single Core |
Operating Temperature Range | -25 → +80 (Mobile) °C, -25 → +85 °C, -40 → +80 (Fixed) °C |
Core Strands | 42 x 0.1 mm |
Number of Strands | 42 |
Size of Strands | 0.1 mm |
Conductor Resistance | 57 O/km |
Connector 1 Housing Gender | Female |
Minimum Bend Radius | 22.5 (Fixed) mm, 45 (Moving) mm |
Fire Behaviour | Flame Retardant |
Minimum Operating Temperature | -25 (Mobile) °C, -40 (Fixed) °C |
