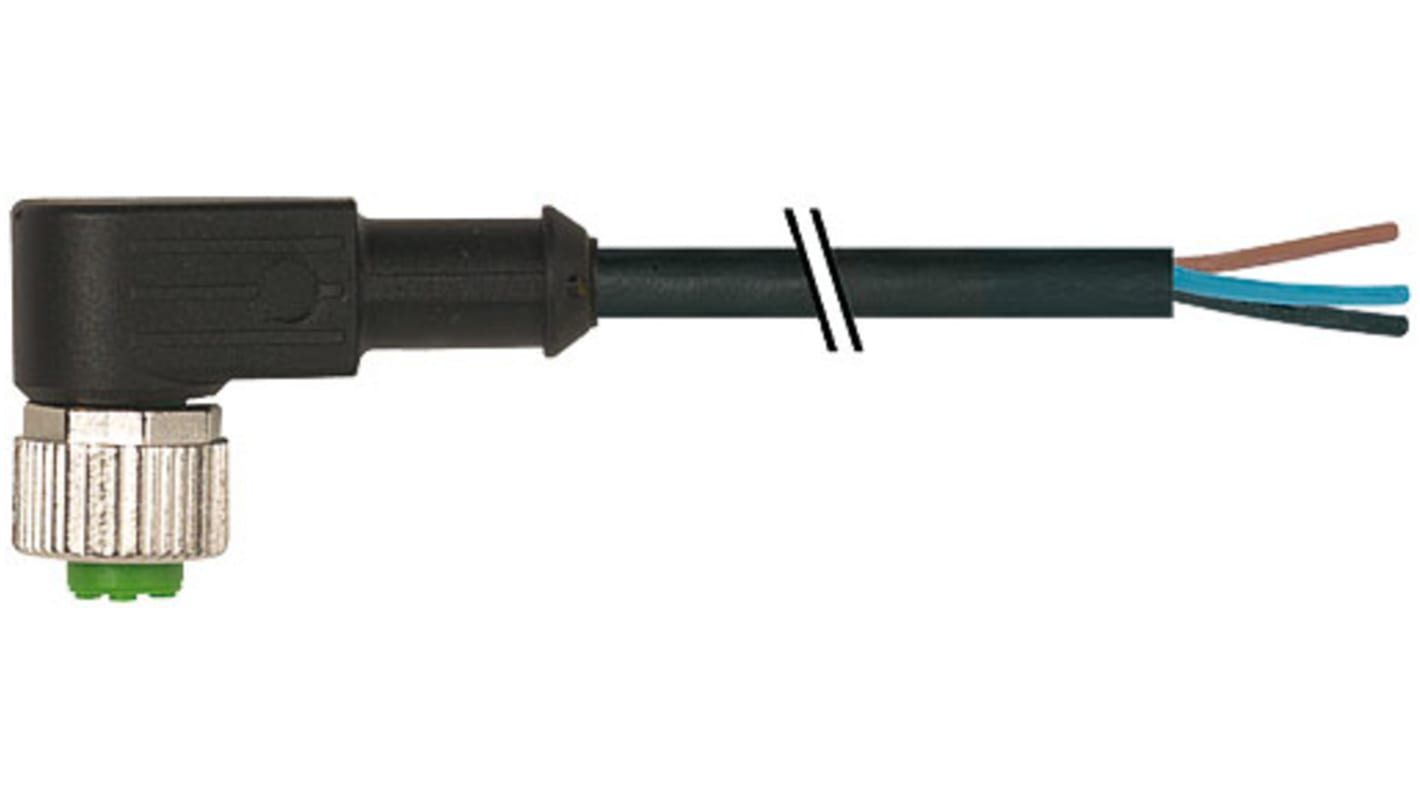

Murrelektronik Limited Right Angle Female 3 way M12 to Unterminated Sensor Actuator Cable, 5m

RS Stock No.:: 196-0672
Mfr. Part No.:: 7000-12321-6330500
Brand:: Murrelektronik Limited

Murrelektronik Limited Right Angle Female 3 way M12 to Unterminated Sensor Actuator Cable, 5m

Bulk discount available

Price Each**

£20.53

(exc. VAT)

£24.64

(inc. VAT)

10 In stock - FREE next working day delivery available*

3 available from Europe for delivery within 2 working day(s).

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Units	Per unit
1 - 4	£20.53
5 - 9	£19.92
10 - 24	£18.69
25 +	£16.44

**price indicative

RS Stock No.:: 196-0672
Mfr. Part No.:: 7000-12321-6330500
Brand:: Murrelektronik Limited

7000-12321-6330500 Datasheet

Attribute	Value
Series	A-Coded
Number of Cores	3
Cross Sectional Area	0.34 mm²
Sheath Material	PUR
Sheath Colour	Black
Length	5m
Connector 1 Number of Contacts	3
Connector 1 Gender	Female
Connector 1	M12
Connector 1 Orientation	Right Angle
Connector 2	Unterminated
Current Rating	4 A
Voltage Rating	30, 250 V
IP Rating	IP65, IP66K, IP67
Outer Diameter	4.1mm
Minimum Operating Temperature	-25 (Mobile) °C, -40 (Fixed) °C
Maximum Operating Temperature	+80 (Fixed, +85 °C, Mobile) °C
Oil Resistant	Yes
Operating Temperature Range	-25 → +80 (Mobile) °C, -25 → +85 °C, -40 → +80 (Fixed) °C
Connector 1 Housing Gender	Male
Core Strands	42 x 0.1 mm
Conductor Resistance	57 O/km
Cable Shape	Single Core
Number of Strands	42
American Wire Gauge	22 AWG
Size of Strands	0.1 mm
Fire Behaviour	Flame Retardant
Insulation Material	PP
Minimum Bend Radius	20.5 (Fixed) mm, 41 (Moving) mm

Murrelektronik Limited Right Angle Female 3 way M12 to Unterminated Sensor Actuator Cable, 5m
