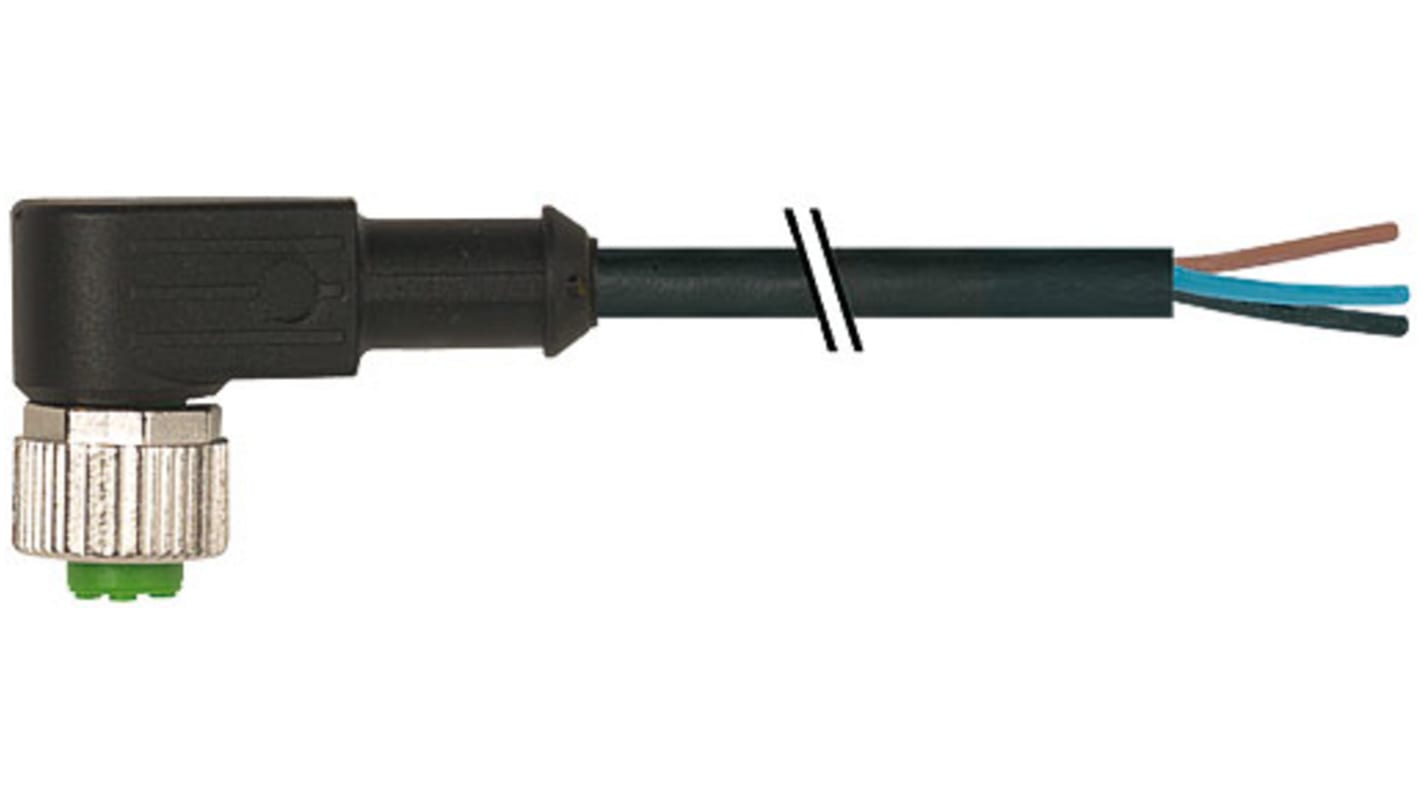

Murrelektronik Limited Right Angle Female 3 way M12 to Unterminated Sensor Actuator Cable, 3m

RS Stock No.:: 196-0671
Mfr. Part No.:: 7000-12321-6330300
Brand:: Murrelektronik Limited

Murrelektronik Limited Right Angle Female 3 way M12 to Unterminated Sensor Actuator Cable, 3m

Bulk discount available

Subtotal (1 unit)**

£16.49

(exc. VAT)

£19.79

(inc. VAT)

13 In stock for delivery within 2 working days*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Not available for guaranteed pre 9am/10am delivery

Units	Per unit
1 - 4	£16.49
5 - 9	£16.02
10 - 24	£15.04
25 +	£13.19

**price indicative

RS Stock No.:: 196-0671
Mfr. Part No.:: 7000-12321-6330300
Brand:: Murrelektronik Limited

7000-12321-6330300 Datasheet

Attribute	Value
Series	A-Coded
Cross Sectional Area	0.34 mm²
Number of Cores	3
Sheath Colour	Black
Sheath Material	PUR
Length	3m
Connector 1 Number of Contacts	3
Connector 1	M12
Connector 1 Orientation	Right Angle
Connector 1 Gender	Female
Connector 2	Unterminated
Voltage Rating	30, 250 V
Current Rating	4 A
IP Rating	IP65, IP66K, IP67
Oil Resistant	Yes
Cable Shape	Single Core
Operating Temperature Range	-25 → +80 (Mobile) °C, -25 → +85 °C, -40 → +80 (Fixed) °C
American Wire Gauge	22 AWG
Conductor Resistance	57 O/km
Minimum Bend Radius	20.5 (Fixed) mm, 41 (Moving) mm
Insulation Material	PP
Number of Strands	42
Connector 1 Housing Gender	Male
Core Strands	42 x 0.1 mm
Outer Diameter	4.1mm
Fire Behaviour	Flame Retardant
Size of Strands	0.1 mm
Minimum Operating Temperature	-25 (Mobile) °C, -40 (Fixed) °C
Maximum Operating Temperature	+80 (Fixed, +85 °C, Mobile) °C

Murrelektronik Limited Right Angle Female 3 way M12 to Unterminated Sensor Actuator Cable, 3m
