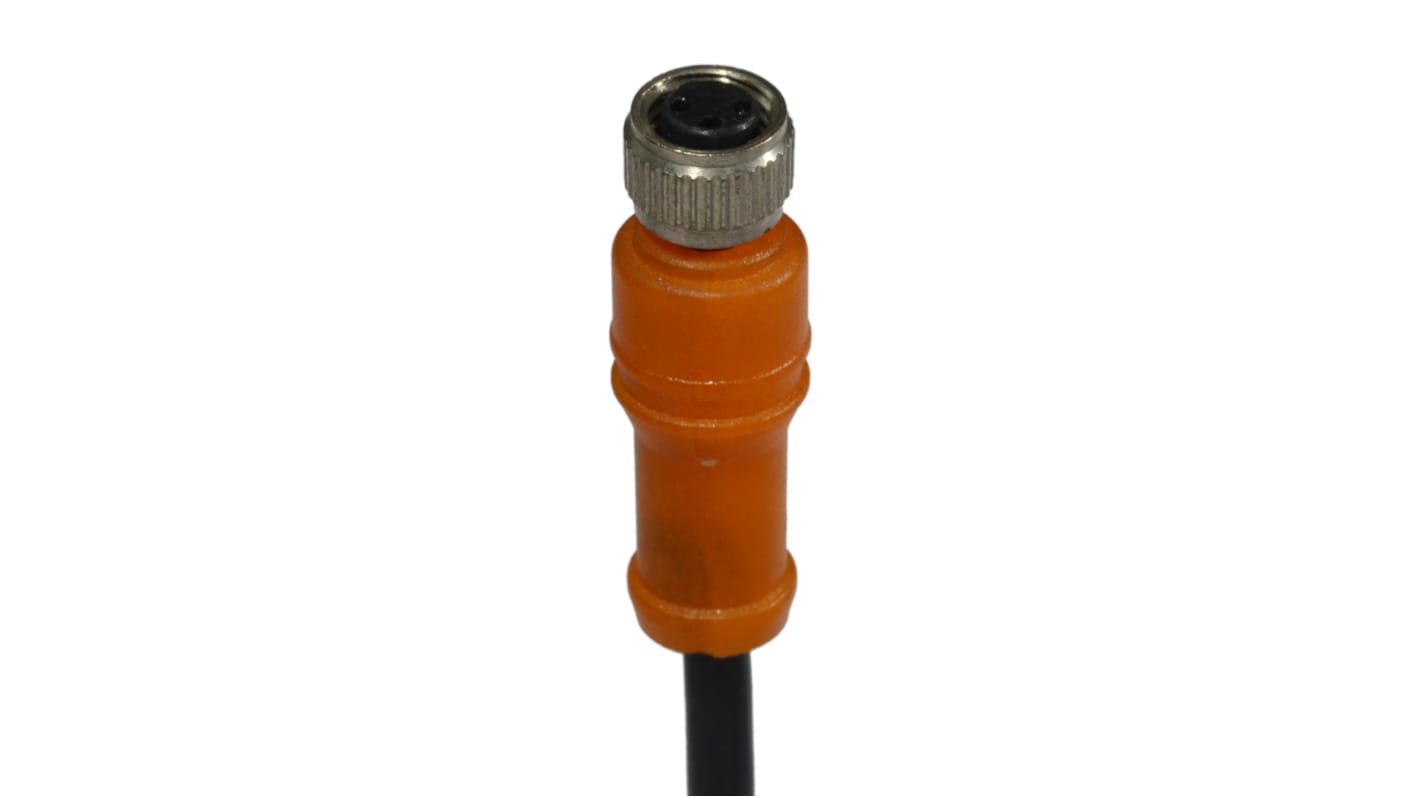

RS PRO Straight Female 3 way M8 to Unterminated Sensor Actuator Cable, 5m

View all Sensor & Actuator Cables
Bulk discount available

Subtotal (1 unit)*

£30.40

(exc. VAT)

£36.48

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 25 unit(s) shipping from 04 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9£30.40
10 - 24£28.57
25 - 49£26.83
50 +£24.69

*price indicative

RS Stock No.:
186-3113
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Cross Sectional Area

0.34 mm²

Number of Cores

3

Length

5m

Sheath Material

PUR

Sheath Colour

Black

Connector 1 Gender

Female

Connector 1 Orientation

Straight

Connector 1 Number of Contacts

3

Connector 1

M8

Connector 2

Unterminated

Voltage Rating

30 V

Current Rating

4 A

IP Rating

IP67

Cable Shape

Multicore

Outer Diameter

4.5mm

Connector 1 Housing Gender

Female

American Wire Gauge

22 AWG

Operating Temperature Range

-25 → +75 °C

COO (Country of Origin):
IN

RS PRO Cable Connector


The RS PRO M8 female straight cable connector has a voltage rating of 30V and a current rating of 4A. It has zinc copper alloy gold plated contacts and a high degree of environmental protection. This connector is left unterminated and is partially stripped at one end. It is fitted with a secure coupling nut and hence is an ideal solution for secure and reliable data transfer.

Features and Benefits


• Cable length: 5m
• Insulation resistance: Greater than or equal to 100MΩ
• Neoprene O-ring
• Brass nickel-plated coupling nut
• LED status indicator
• Operating temperature ranges between -25℃ and 75℃
• Jacket material: 3 core PUR multi strand
• Cable diameter: 4.5 ± 0.1mm
• Cable diameter: 4.8± 0.1mm

Applications


• Sensor
• Automation equipment
• Industrial use

Certifications


• IP67 rated
• CE certified
• TUV certified
