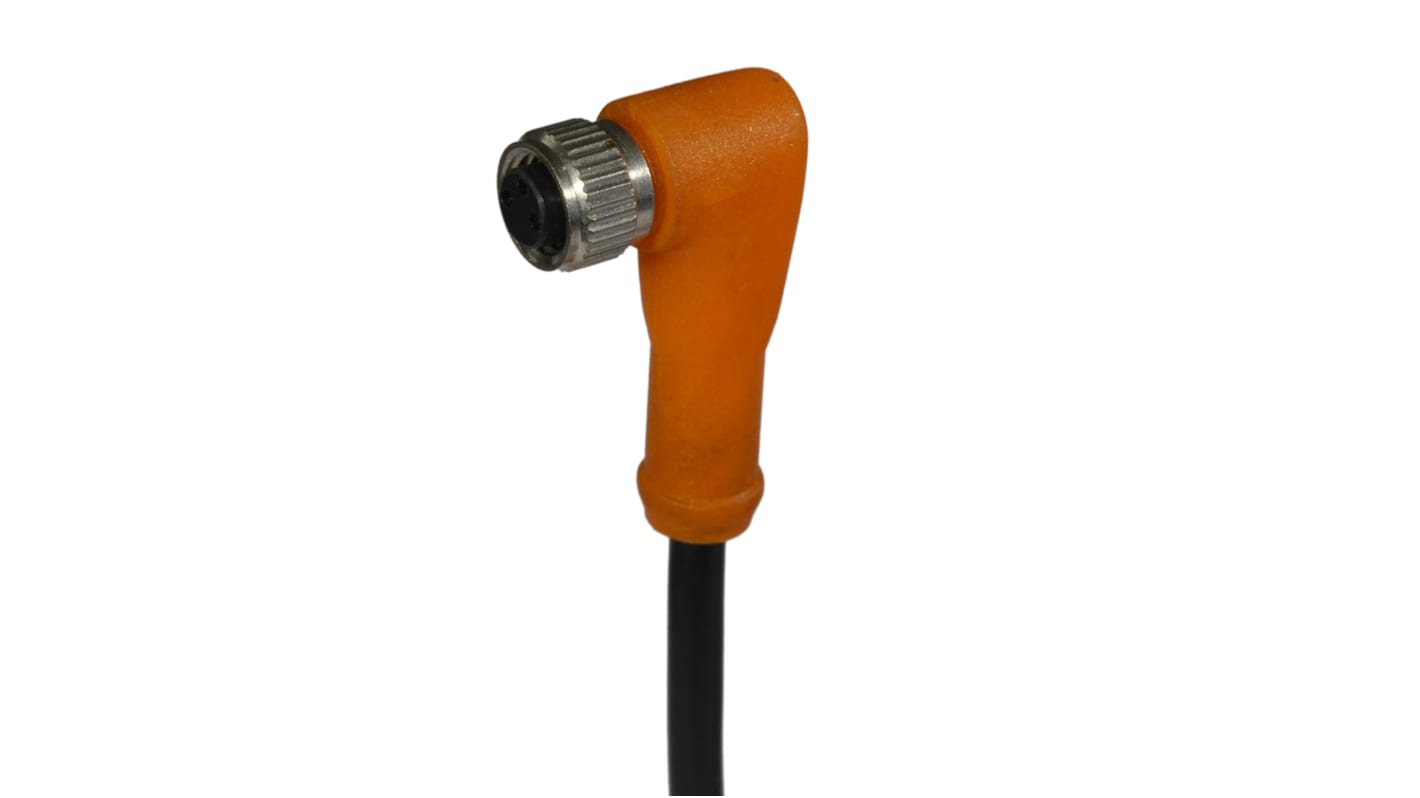

RS PRO Right Angle Female 4 way M8 to Unterminated Sensor Actuator Cable, 5m
- RS Stock No.:
- 186-3110
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£17.61
(exc. VAT)
£21.13
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 41 unit(s) shipping from 06 October 2025
- Plus 3 unit(s) shipping from 06 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £17.61 |
10 - 24 | £16.55 |
25 - 49 | £15.56 |
50 + | £14.30 |
*price indicative
- RS Stock No.:
- 186-3110
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Number of Cores | 4 | |
Cross Sectional Area | 0.25 mm² | |
Sheath Colour | Black | |
Sheath Material | PVC | |
Length | 5m | |
Connector 1 | M8 | |
Connector 1 Orientation | Right Angle | |
Connector 1 Number of Contacts | 4 | |
Connector 1 Gender | Female | |
Connector 2 | Unterminated | |
Voltage Rating | 30 V | |
Current Rating | 4 A | |
IP Rating | IP67 | |
Connector 1 Housing Gender | Female | |
Outer Diameter | 4.8mm | |
American Wire Gauge | 23 AWG | |
Operating Temperature Range | -25 → +75 °C | |
Cable Shape | Multicore | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Number of Cores 4 | ||
Cross Sectional Area 0.25 mm² | ||
Sheath Colour Black | ||
Sheath Material PVC | ||
Length 5m | ||
Connector 1 M8 | ||
Connector 1 Orientation Right Angle | ||
Connector 1 Number of Contacts 4 | ||
Connector 1 Gender Female | ||
Connector 2 Unterminated | ||
Voltage Rating 30 V | ||
Current Rating 4 A | ||
IP Rating IP67 | ||
Connector 1 Housing Gender Female | ||
Outer Diameter 4.8mm | ||
American Wire Gauge 23 AWG | ||
Operating Temperature Range -25 → +75 °C | ||
Cable Shape Multicore | ||
- COO (Country of Origin):
- IN
RS PRO Cable Connector
The RS PRO M8 female right-angled cable connector has a voltage rating of 30V and a current rating of 4A. It has zinc copper alloy gold plated contacts and a high degree of environmental protection. This connector is left unterminated and is partially stripped at one end. It is fitted with a secure coupling nut and hence is an ideal solution for secure and reliable data transfer.
Features and Benefits
• Cable length: 5m
• Insulation resistance: Greater than or equal to 100MΩ
• Neoprene O-ring
• Brass nickel-plated coupling nut
• LED status indicator
• Operating temperature ranges between -25℃ and 75℃
• Jacket material: 4 core PVC multi strand
• Cable diameter: 4.8± 0.1mm
• Insulation resistance: Greater than or equal to 100MΩ
• Neoprene O-ring
• Brass nickel-plated coupling nut
• LED status indicator
• Operating temperature ranges between -25℃ and 75℃
• Jacket material: 4 core PVC multi strand
• Cable diameter: 4.8± 0.1mm
Applications
• Sensor
• Automation equipment
• Industrial use
• Automation equipment
• Industrial use
Certifications
• IP67 rated
• CE certified
• TUV certified
• CE certified
• TUV certified
