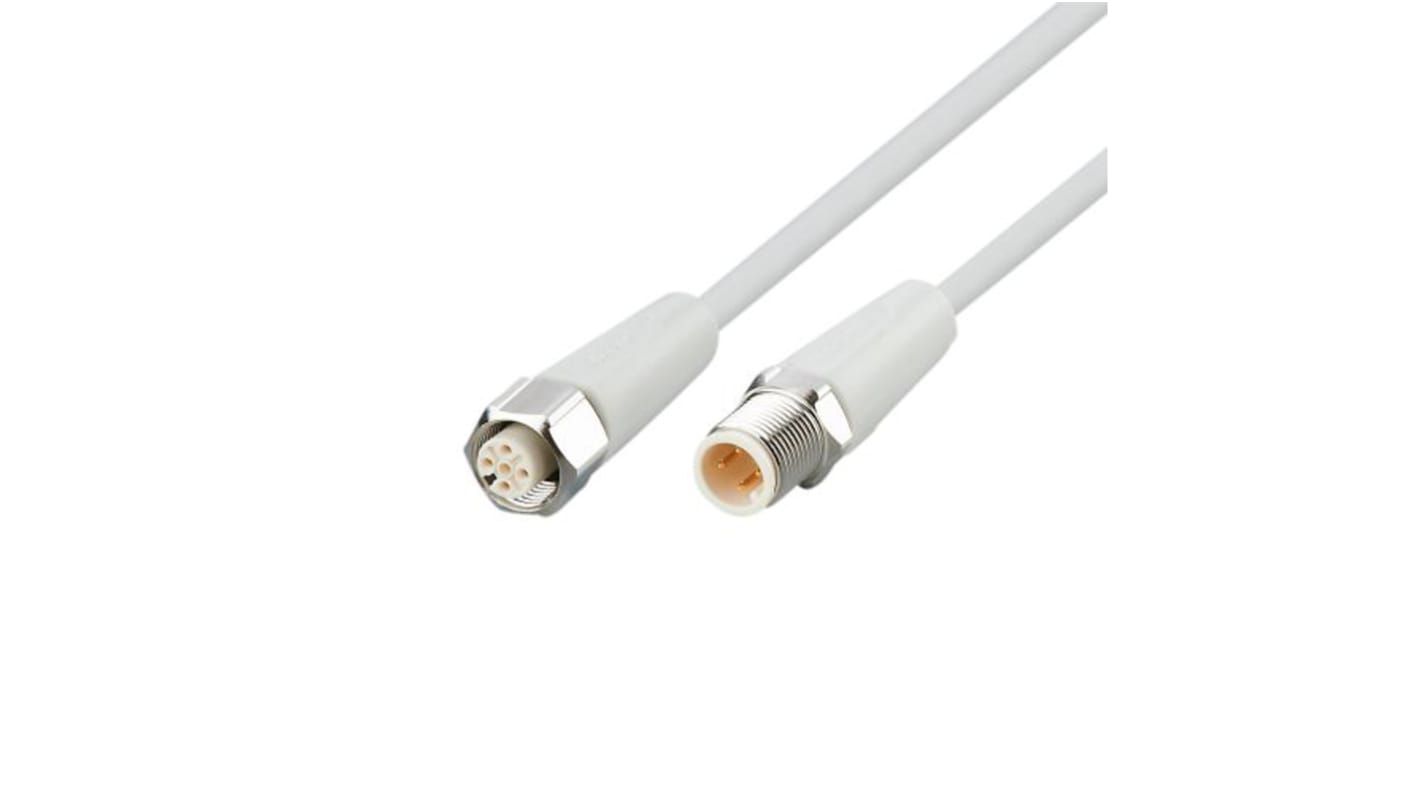

ifm electronic Female 4 way M12 to Male 5 way M12 Sensor Actuator Cable, 10m
- RS Stock No.:
- 183-2799
- Mfr. Part No.:
- EVF045
- Brand:
- ifm electronic
Subtotal (1 unit)*
£48.89
(exc. VAT)
£58.67
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £48.89 |
*price indicative
- RS Stock No.:
- 183-2799
- Mfr. Part No.:
- EVF045
- Brand:
- ifm electronic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ifm electronic | |
| Series | EVF | |
| Number of Cores | 4 | |
| Cross Sectional Area | 0.34 mm² | |
| Length | 10m | |
| Sheath Colour | Grey | |
| Sheath Material | mPPE | |
| Connector 1 | M12 | |
| Connector 1 Number of Contacts | 4 | |
| Connector 1 Gender | Female | |
| Connector 2 Number of Contacts | 5 | |
| Connector 2 Gender | Male | |
| Connector 2 Housing Gender | Female | |
| Connector 2 | M12 | |
| Current Rating | 4 A | |
| Voltage Rating | 250, 300 V | |
| IP Rating | IP65, IP67, IP68, IP69K | |
| Minimum Bend Radius | 10 x cable diameter | |
| American Wire Gauge | 22 AWG | |
| Outer Diameter | 4.9mm | |
| Connector 1 Housing Gender | Male | |
| Operating Temperature Range | -25 → +100 °C | |
| Fire Behaviour | Halogen Free | |
Select all | ||
|---|---|---|
Brand ifm electronic | ||
Series EVF | ||
Number of Cores 4 | ||
Cross Sectional Area 0.34 mm² | ||
Length 10m | ||
Sheath Colour Grey | ||
Sheath Material mPPE | ||
Connector 1 M12 | ||
Connector 1 Number of Contacts 4 | ||
Connector 1 Gender Female | ||
Connector 2 Number of Contacts 5 | ||
Connector 2 Gender Male | ||
Connector 2 Housing Gender Female | ||
Connector 2 M12 | ||
Current Rating 4 A | ||
Voltage Rating 250, 300 V | ||
IP Rating IP65, IP67, IP68, IP69K | ||
Minimum Bend Radius 10 x cable diameter | ||
American Wire Gauge 22 AWG | ||
Outer Diameter 4.9mm | ||
Connector 1 Housing Gender Male | ||
Operating Temperature Range -25 → +100 °C | ||
Fire Behaviour Halogen Free | ||
- COO (Country of Origin):
- PL
Connection technology meets the M12 and M8 standard
Reliable sealing even when mounted without tools
High protection rating due to the use of a profiled sealing ring
Sawtooth design protects against shock and vibration
LEDs clearly visible even in cases of high light exposure
Reliable sealing even when mounted without tools
High protection rating due to the use of a profiled sealing ring
Sawtooth design protects against shock and vibration
LEDs clearly visible even in cases of high light exposure
For use in sanitary and wet areas in the food industry
Permanent, reliable sealing even when mounted without tools
Cable jacket made of halogen-free and flame-retardant material
Vibration and shock resistant thanks to coupling ring with locking mechanism
Wide operating temperature range and high protection rating
Permanent, reliable sealing even when mounted without tools
Cable jacket made of halogen-free and flame-retardant material
Vibration and shock resistant thanks to coupling ring with locking mechanism
Wide operating temperature range and high protection rating
