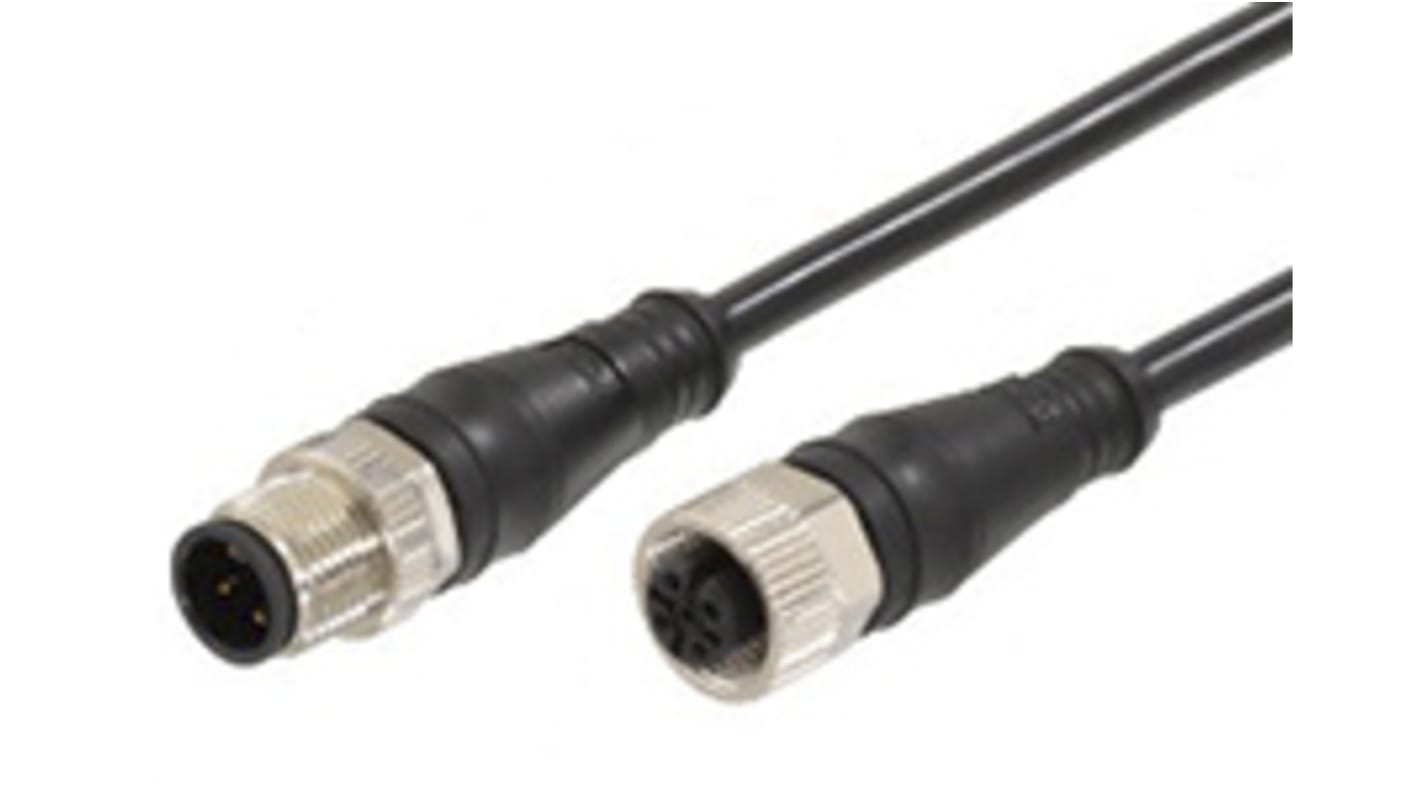

Molex Straight Female 5 way M12 to Straight Male 5 way M12 Sensor Actuator Cable, 5m
- RS Stock No.:
- 174-6642
- Distrelec Article No.:
- 301-36-001
- Mfr. Part No.:
- 120066-8995
- Brand:
- Molex
Subtotal (1 unit)*
£25.30
(exc. VAT)
£30.36
(inc. VAT)
FREE delivery for orders over £50.00
- 39 unit(s) ready to ship
- Plus 4 unit(s) ready to ship from another location
- Plus 73 unit(s) shipping from 07 October 2025
Units | Per unit |
|---|---|
| 1 - 9 | £25.30 |
| 10 + | £23.71 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£13.62
(exc. VAT)
£16.34
(inc. VAT)
- RS Stock No.:
- 174-6642
- Distrelec Article No.:
- 301-36-001
- Mfr. Part No.:
- 120066-8995
- Brand:
- Molex
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Series | 120066 | |
| Number of Cores | 5 | |
| Cross Sectional Area | 0.34 mm² | |
| Sheath Material | TPU | |
| Length | 5m | |
| Sheath Colour | Black | |
| Connector 1 Number of Contacts | 5 | |
| Connector 1 Orientation | Straight | |
| Connector 1 Gender | Female | |
| Connector 1 | M12 | |
| Connector 2 Housing Gender | Male | |
| Connector 2 Gender | Male | |
| Connector 2 | M12 | |
| Connector 2 Number of Contacts | 5 | |
| Connector 2 Orientation | Straight | |
| Coding | A | |
| Shielded/Unshielded | Unshielded | |
| Voltage Rating | 60 V | |
| Current Rating | 4 A | |
| IP Rating | IP67 | |
| Maximum Operating Temperature | +80°C | |
| Cable Shape | Multicore | |
| Connector 1 Housing Gender | Female | |
| Operating Temperature Range | -25 → +80 °C | |
| American Wire Gauge | 22 AWG | |
| Minimum Operating Temperature | -25°C | |
| Outer Diameter | 5.5mm | |
Select all | ||
|---|---|---|
Brand Molex | ||
Series 120066 | ||
Number of Cores 5 | ||
Cross Sectional Area 0.34 mm² | ||
Sheath Material TPU | ||
Length 5m | ||
Sheath Colour Black | ||
Connector 1 Number of Contacts 5 | ||
Connector 1 Orientation Straight | ||
Connector 1 Gender Female | ||
Connector 1 M12 | ||
Connector 2 Housing Gender Male | ||
Connector 2 Gender Male | ||
Connector 2 M12 | ||
Connector 2 Number of Contacts 5 | ||
Connector 2 Orientation Straight | ||
Coding A | ||
Shielded/Unshielded Unshielded | ||
Voltage Rating 60 V | ||
Current Rating 4 A | ||
IP Rating IP67 | ||
Maximum Operating Temperature +80°C | ||
Cable Shape Multicore | ||
Connector 1 Housing Gender Female | ||
Operating Temperature Range -25 → +80 °C | ||
American Wire Gauge 22 AWG | ||
Minimum Operating Temperature -25°C | ||
Outer Diameter 5.5mm | ||
