- RS Stock No.:
- 173-8802
- Mfr. Part No.:
- 120066-8993
- Brand:
- Molex
Available to back order for despatch 18/06/2024
Added
Price Each (In a Bag of 24)
£15.917
(exc. VAT)
£19.10
(inc. VAT)
Units | Per unit | Per Bag* |
24 + | £15.917 | £382.008 |
*price indicative |
- RS Stock No.:
- 173-8802
- Mfr. Part No.:
- 120066-8993
- Brand:
- Molex
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- PL
Product Details

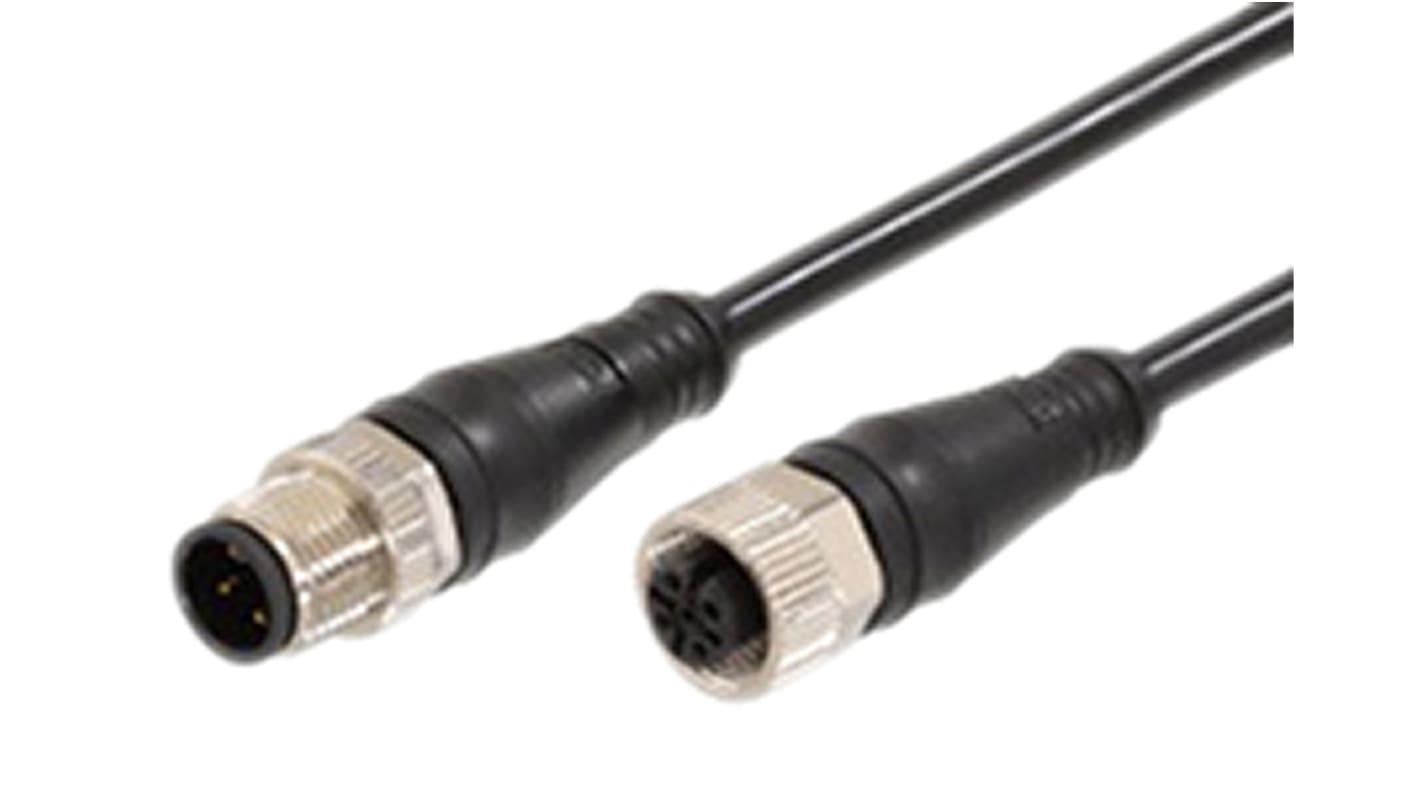

Molex M12 WSOR Sensor Cable
From Molex, this Micro-Change cable assembly is designed to be resistant to Weld-Slag and Oil, and as such is well suited to industrial use. With a secure M12 connector, this WSOR cable assembly is a versatile and reliable solution to sensor and automation connection applications, and boasts an impressive degree of environmental protection when mated.
Features and Benefits:
• Knurled hex nut connection
• Weld-slag and Oil resistant
• Unshielded cable
• Gold plated brass contacts
• Knurled hex nut connection
• Weld-slag and Oil resistant
• Unshielded cable
• Gold plated brass contacts
BRAD - M12
Specifications
Attribute | Value |
---|---|
Series | 120066 |
Cross Sectional Area | 0.34 mm² |
Sheath Colour | Black |
Length | 2m |
Sheath Material | TPU |
Connector 1 | M12 |
Connector 1 Orientation | Straight |
Connector 1 Number of Contacts | 5 |
Connector 1 Gender | Female |
Connector 2 Housing Gender | Male |
Connector 2 | M12 |
Connector 2 Number of Contacts | 5 |
Connector 2 Gender | Male |
Connector 2 Orientation | Straight |
Coding | A |
Shielded/Unshielded | Unshielded |
Voltage Rating | 60 V |
Current Rating | 4 A |
IP Rating | IP67 |
American Wire Gauge | 22 AWG |
Operating Temperature Range | -25 → +85 °C |
Outer Diameter | 5.5mm |
Connector 1 Housing Gender | Female |
Cable Shape | Multicore |
Maximum Operating Temperature | +85°C |
Standards Met | CSA, UL 2125 |
Minimum Operating Temperature | -25°C |
Conductor Material | Brass |
