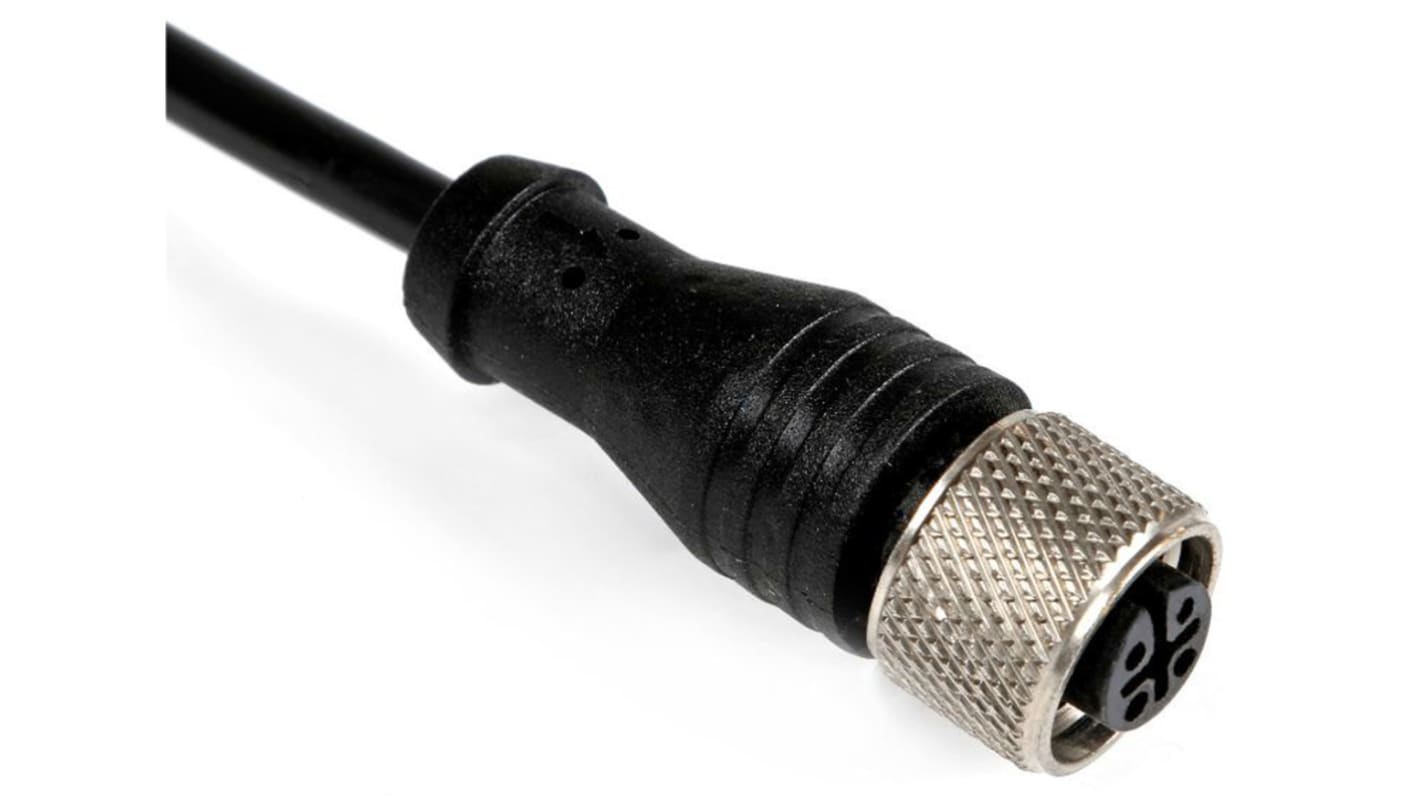

RS PRO Female Straight to 5 way Unterminated Sensor Actuator Cable, 2 m

View all Sensor & Actuator Cables
Bulk discount available

Subtotal (1 unit)*

£26.89

(exc. VAT)

£32.27

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 56 unit(s) ready to ship
  • Plus 9 unit(s) ready to ship from another location
  • Plus 45 unit(s) shipping from 03 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
1 - 4£26.89
5 - 9£25.55
10 - 49£24.22
50 +£22.86

*price indicative

RS Stock No.:
144-7657
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Product Type

Sensor Actuator Cable

Series

CBF

Cable Length

2m

Jacket Material

Polyvinyl Chloride

Jacket Colour

Black

Connector Gender A

Female

Connector Type A

Straight

Number of Contacts B

5

Connector Type B

Unterminated

Voltage

60V ac/dc

IP Rating

IP67

Standards/Approvals

CE, IEC/EN 61076-2-101, TUV

COO (Country of Origin):
IN

RS PRO Sensor Actuator Cable, 5 Cores, 2 m


Need to create a custom connection for an electrical appliance or piece of equipment? The RS PRO straight connector and cable assembly is the perfect solution. With an unterminated end, you can customise it to fit your specific equipment requirements.

The cable's standard M12 end is a straight female socket with brass contacts for an efficient connection. The sheath is made of durable polyurethane (PUR) that protects the unit from mechanical wear and damage from oil and grease, ensuring a long product life.

This is a shielded cable, so the current is insulated from radiation and signal interference, providing a reliable connection. The Ingress Protection (IP) rating of IP67 means the product is dust-tight and sealed against water jets.

Features and Benefits


  • M12 End: Standard straight female socket with brass contacts for efficient connectivity.

  • Durable Sheath: Made of polyurethane (PUR) to protect against mechanical wear, oil, and grease, ensuring long product life.

  • Shielded Cable: Insulates current from radiation and signal interference, providing a reliable connection.

  • IP67 Rating: Dust-tight and sealed against water jets, ensuring robust protection in challenging environments.

    • Specification


  • Grip Material: PU

  • Contacts: Cu-Zn

  • Contact Plating: Gold Plated

  • Contact Carrier: Nylon 66

  • O-Ring: Neoprene

  • Coupling Nut: Brass Nickel-Plated

    • Variants Available Separately


  • 5 Core M12 Sensor Actuator Cable, Unterminated, Female, 2m – RS stock no: 144-7657

  • 5 Core M12 Sensor Actuator Cable, Unterminated, Female, 5m – RS stock no: 144-7658

    • Application


  • Instrumentation

  • Process control

  • Robotics

  • Assembly lines and manufacturing

  • Factory automation

  • Industrial production and automation

    • RS Pro M12 Connector Female


    Brought to you by RS Pro, these M12 connectors are gleaming with quality and durability. Available as both right angle and straight, each 5-pin socket is a welcome addition to your application. With an IP rating of IP67, these connectors are perfect within harsh environments. All models are highly reliable and excellent quality.

    Features & Benefits


    Current rating: 4A;Right angle and Straight available;Gold plated contacts;Supplied with Neoprene O-Ring
