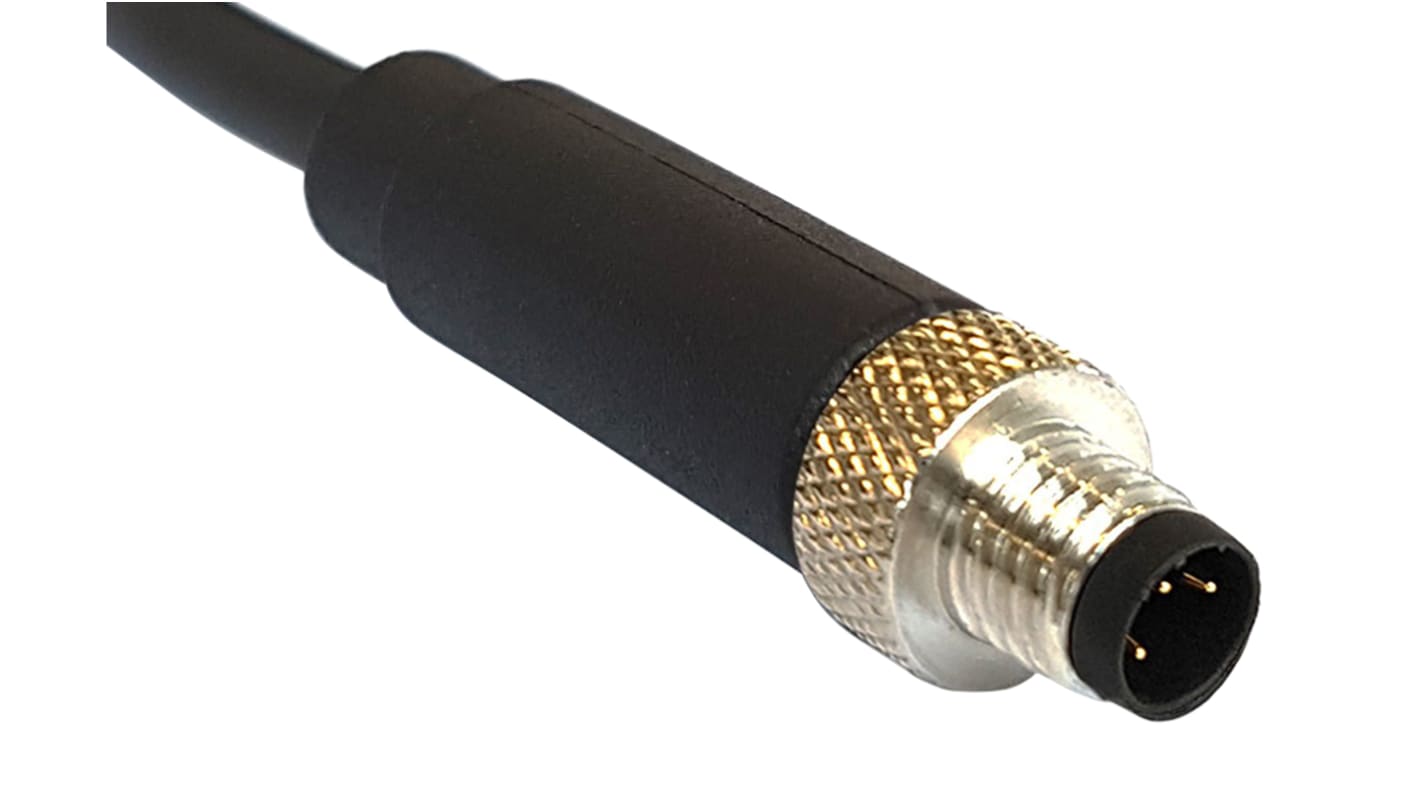

Bulgin Straight Male 3 way M8 to Unterminated Sensor Actuator Cable, 1m
- RS Stock No.:
- 144-6746
- Mfr. Part No.:
- PXPTPU08FIM03ACL010PUR
- Brand:
- Bulgin
Subtotal (1 unit)*
£19.98
(exc. VAT)
£23.98
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 18 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £19.98 |
*price indicative
- RS Stock No.:
- 144-6746
- Mfr. Part No.:
- PXPTPU08FIM03ACL010PUR
- Brand:
- Bulgin
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bulgin | |
| Series | M8 | |
| Number of Cores | 3 | |
| Sheath Material | PUR | |
| Length | 1m | |
| Sheath Colour | Black | |
| Connector 1 | M8 | |
| Connector 1 Gender | Male | |
| Connector 1 Orientation | Straight | |
| Connector 1 Number of Contacts | 3 | |
| Connector 2 | Unterminated | |
| Coding | A | |
| Shielded/Unshielded | Unshielded | |
| Voltage Rating | 60 V | |
| Current Rating | 3 A | |
| IP Rating | IP67 | |
| Outer Diameter | 3 → 3.5mm | |
| Maximum Operating Temperature | +80°C | |
| Conductor Material | Brass | |
| Minimum Operating Temperature | -25°C | |
| Operating Temperature Range | -25 → +80 °C | |
| Connector 1 Housing Gender | Male | |
| Conductor Resistance | <10 mΩ | |
| Cable Shape | Single Core | |
Select all | ||
|---|---|---|
Brand Bulgin | ||
Series M8 | ||
Number of Cores 3 | ||
Sheath Material PUR | ||
Length 1m | ||
Sheath Colour Black | ||
Connector 1 M8 | ||
Connector 1 Gender Male | ||
Connector 1 Orientation Straight | ||
Connector 1 Number of Contacts 3 | ||
Connector 2 Unterminated | ||
Coding A | ||
Shielded/Unshielded Unshielded | ||
Voltage Rating 60 V | ||
Current Rating 3 A | ||
IP Rating IP67 | ||
Outer Diameter 3 → 3.5mm | ||
Maximum Operating Temperature +80°C | ||
Conductor Material Brass | ||
Minimum Operating Temperature -25°C | ||
Operating Temperature Range -25 → +80 °C | ||
Connector 1 Housing Gender Male | ||
Conductor Resistance <10 mΩ | ||
Cable Shape Single Core | ||
- COO (Country of Origin):
- CN
Bulgin’s M8 circular connectors and over molded cables are designed to fulfil the ever growing demand for sensor, actuator and data connections in process control, industrial machinery and factory automation applications. These compact connectors with screw lock coupling are mechanically and chemically robust, easy to install, minimise downtime and help to increase production efficiency.
Straight & right angled configurations
3, 4 or 5 contacts
Metal & plastic shell options
A & B coded
Environmental protection class IP67
Field installable connectors, panel mounts & overmolded cable options
PVC or PUR jacketed cable variants with many lengths from 1m – 15m
3, 4 or 5 contacts
Metal & plastic shell options
A & B coded
Environmental protection class IP67
Field installable connectors, panel mounts & overmolded cable options
PVC or PUR jacketed cable variants with many lengths from 1m – 15m
M8 Flex Inline Body Male
