Siemens 6XV1801 Sensor Actuator Cable, 4 Cores, 1.5 mm² CSA, 2 m, Grey FEP Sheath

View all Sensor & Actuator Cables

Subtotal (1 unit)*

£82.82

(exc. VAT)

£99.38

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible - Please check back later
Units
Per unit
1 +£82.82

*price indicative

RS Stock No.:
664-860
Mfr. Part No.:
6XV1801-6EH20
Brand:
Siemens
Find similar products by selecting one or more attributes.
Select all

Brand

Siemens

Product Type

Sensor Actuator Cable

Series

6XV1801

Sub Type

Connecting Cable

Number of Cores

4

Cross Sectional Area

1.5 mm²

Conductor Material

Copper

Jacket Material

FEP

Jacket Colour

Grey

Outside Diameter

7.6mm

Cable Length

2m

Voltage

300V

Minimum Operating Temperature

-40°C

Standards/Approvals

RoHS, CE

Maximum Operating Temperature

90°C

Fire Behaviour

Flame Resistant

Core Strands

4

COO (Country of Origin):
DE

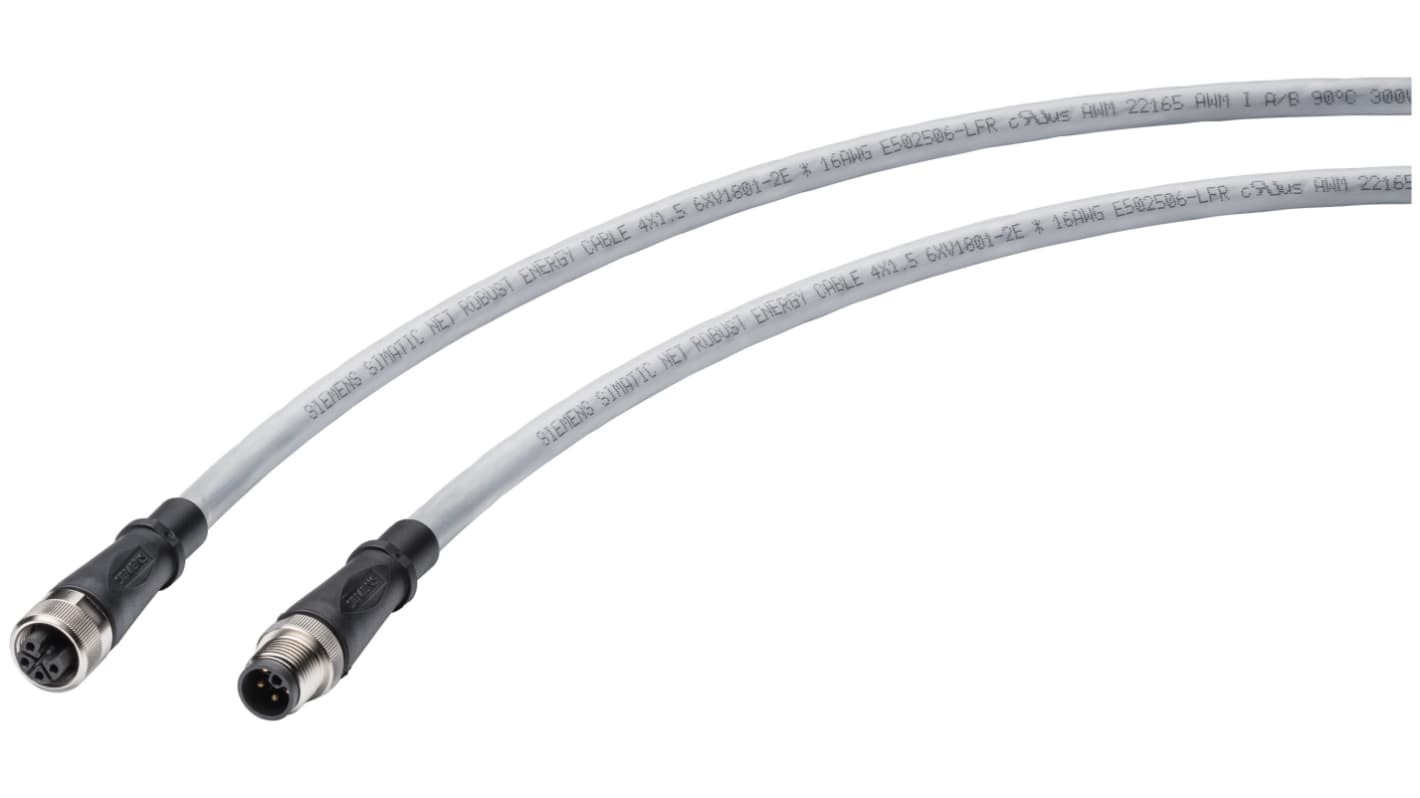

Siemens 6XV1801 Series Connector Cable, 2m Cable Length, 1.5mm² Cross Sectional Area - 6XV1801-6EH20


This connector cable provides a four-core link for industrial control and automation installations, supplying signal and power connections in demanding environments. It is designed to operate across a wide temperature range and to meet common European conformity standards for use in electrical and mechanical systems.

Features & Benefits


• Four-core tin-coated copper conductors provide corrosion resistance and conductivity
• 1.5mm² conductors deliver suitable current capacity for control circuits
• 300V rating supports low-voltage industrial systems
• Flame-resistant construction reduces fire propagation risk
• FEP outer jacket resists chemical and thermal stress
• Cable performs between -40°C to 90°C for harsh environments

**Applications**


• Suitable for factory automation control wiring
• Ideal for machine tool signal and power interconnects
• Used with panel-mounted connectors in control cabinets
• Can be used for robotics harnessing and sensor arrays
• Suitable for wiring in electrical distribution modules

How many individual strands are present in each conductor?


Each conductor comprises multiple strands totalling four cores with individual strand construction to improve flexibility.

What colours and layering are used for external protection?


The cable has a grey outer jacket over insulated cores and an overall sheath designed for mechanical and environmental protection.

What are the typical outside diameters relevant to installation routing?


The inner conductor, insulation and complete sheath diameters vary to assist conduit and gland selection for routing and clamp design.
