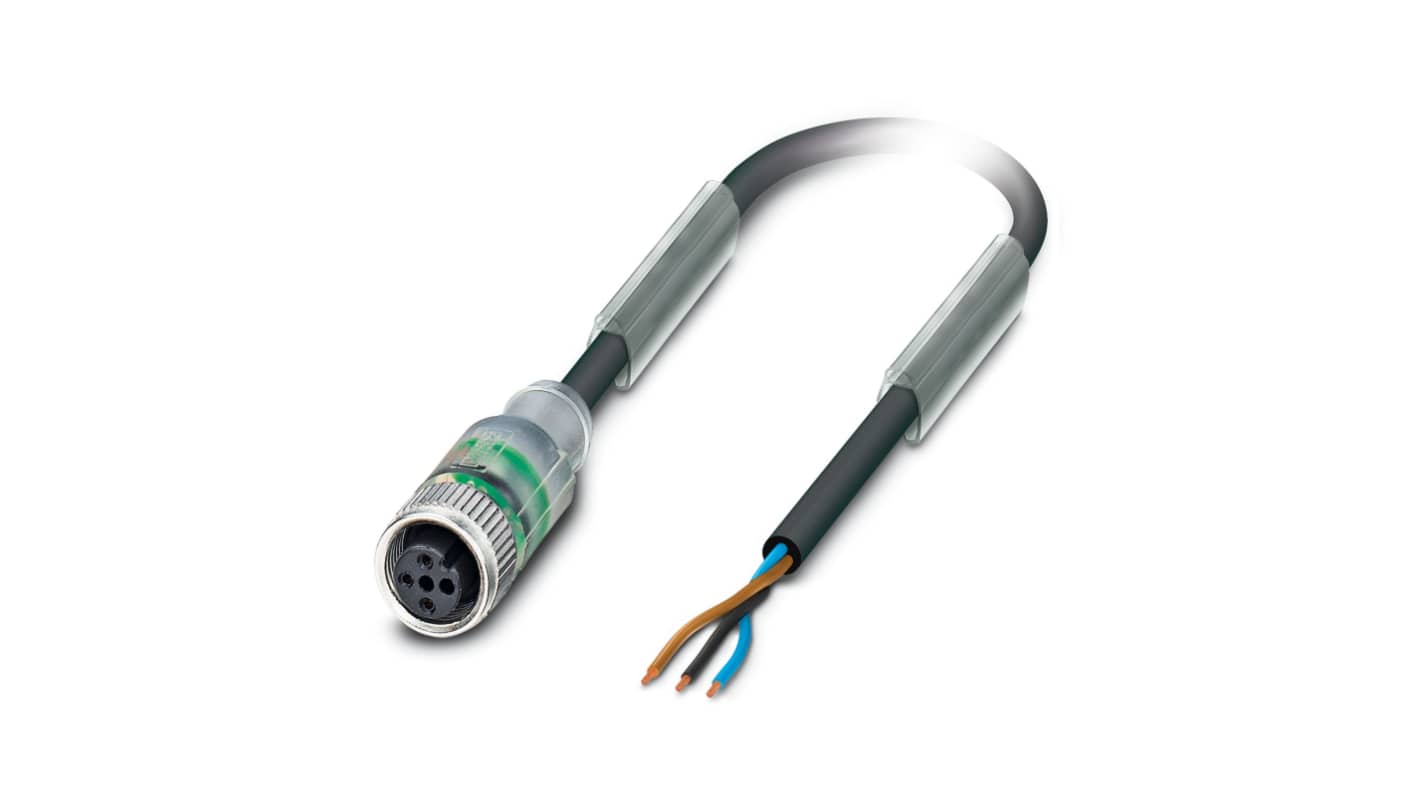

Phoenix Contact Free Ends to Straight Female 3 way M12 Sensor Actuator Cable, 1.5m
- RS Stock No.:
- 519-261
- Mfr. Part No.:
- 1414556
- Brand:
- Phoenix Contact
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 519-261
- Mfr. Part No.:
- 1414556
- Brand:
- Phoenix Contact
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Series | SAC-3P- 1 | |
Number of Cores | 3 | |
Cross Sectional Area | 0.34 mm² | |
Sheath Colour | Black | |
Length | 1.5m | |
Sheath Material | Polyvinyl Chloride PVC | |
Connector 1 | Free Ends | |
Connector 2 Number of Contacts | 3 | |
Connector 2 Orientation | Straight | |
Connector 2 | M12 | |
Connector 2 Gender | Female | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Series SAC-3P- 1 | ||
Number of Cores 3 | ||
Cross Sectional Area 0.34 mm² | ||
Sheath Colour Black | ||
Length 1.5m | ||
Sheath Material Polyvinyl Chloride PVC | ||
Connector 1 Free Ends | ||
Connector 2 Number of Contacts 3 | ||
Connector 2 Orientation Straight | ||
Connector 2 M12 | ||
Connector 2 Gender Female | ||
- COO (Country of Origin):
- PL
The Phoenix Contact sensor or actuator cable is expertly designed for reliability and performance in demanding environments. With a robust construction, it features a 3-position configuration and a generous length of 1.5 meters, ensuring flexibility in various applications. The cable exhibits excellent insulation resistance and operates effectively under a nominal voltage of 24 V DC with a current rating of 4 A. Its durable PVC exterior not only provides protection against wear but also offers an appealing aesthetic with its black RAL 9005 finish. Equipped with two status display LEDs, this cable enhances operational visibility, making it easier to monitor the connections status. Ideal for a range of industrial applications, it adheres to stringent standards, guaranteeing long-term functionality and safety in challenging conditions.
The cable is rated for protection degrees IP65, IP67, and IP68, ensuring durability against environmental factors
It is crafted from flame-resistant materials, enhancing safety in high-risk environments
The connector is designed with an easy-to-use coding type A for straightforward installation
With a minimum bending radius specified for fixed and movable installations, it allows for versatile setup options
The cable structure includes a twisted formation, optimizing performance and reducing signal interference
It does not require shielding, simplifying installations while ensuring effective performance
The lightweight design, weighing only 53.9 grams, facilitates effortless handling during installation
It is crafted from flame-resistant materials, enhancing safety in high-risk environments
The connector is designed with an easy-to-use coding type A for straightforward installation
With a minimum bending radius specified for fixed and movable installations, it allows for versatile setup options
The cable structure includes a twisted formation, optimizing performance and reducing signal interference
It does not require shielding, simplifying installations while ensuring effective performance
The lightweight design, weighing only 53.9 grams, facilitates effortless handling during installation
