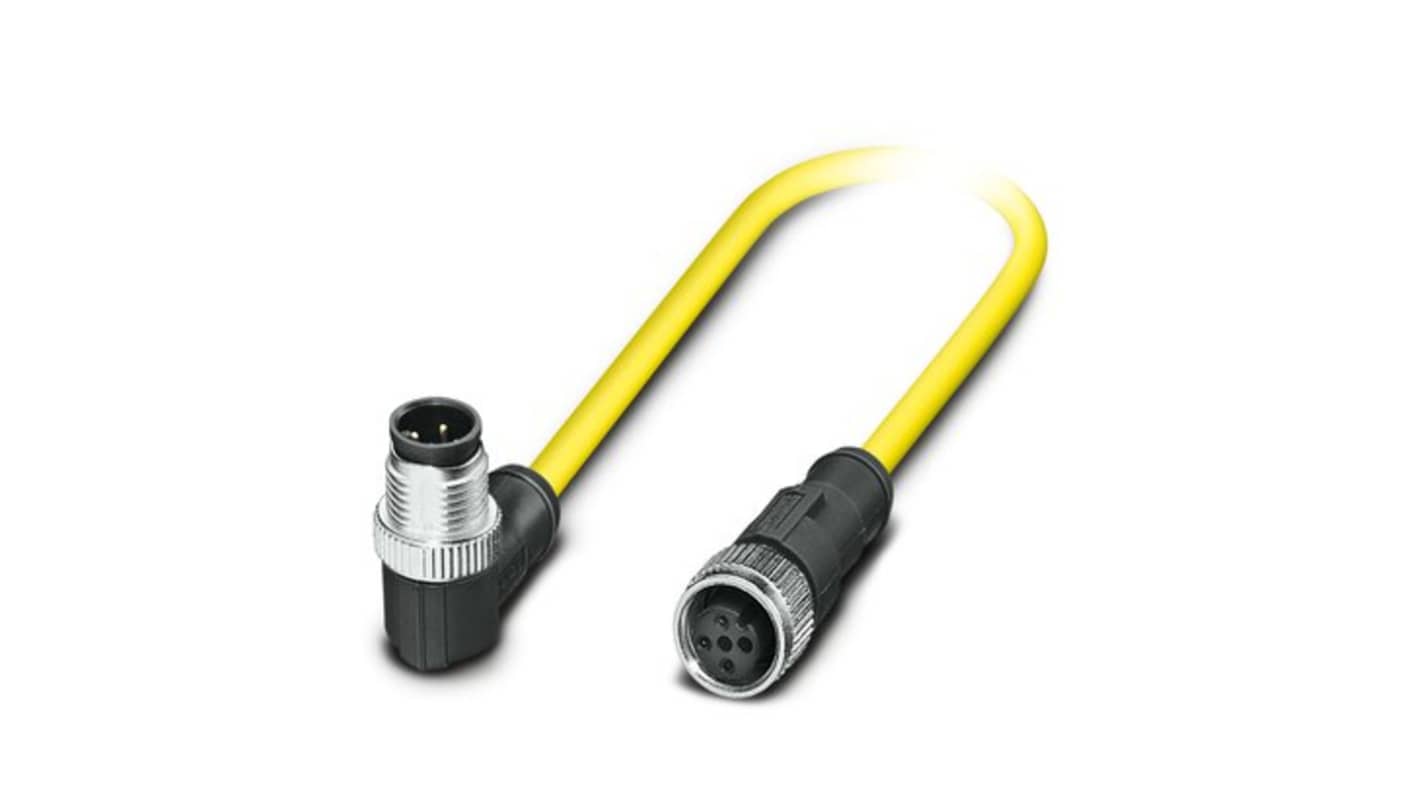

Phoenix Contact Right Angle Male 3 way M12 to Straight Female 3 way M12 Actuator/Sensor Cable, 3m
- RS Stock No.:
- 268-971
- Mfr. Part No.:
- 1424966
- Brand:
- Phoenix Contact
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 268-971
- Mfr. Part No.:
- 1424966
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | SAC | |
| Cross Sectional Area | 3 x 0.82 mm² | |
| Number of Cores | 3 | |
| Sheath Colour | Yellow | |
| Length | 3m | |
| Sheath Material | Polyvinyl Chloride PVC | |
| Connector 1 Gender | Male | |
| Connector 1 | M12 | |
| Connector 1 Number of Contacts | 3 | |
| Connector 1 Orientation | Right Angle | |
| Connector 2 Number of Contacts | 3 | |
| Connector 2 Orientation | Straight | |
| Connector 2 | M12 | |
| Connector 2 Gender | Female | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series SAC | ||
Cross Sectional Area 3 x 0.82 mm² | ||
Number of Cores 3 | ||
Sheath Colour Yellow | ||
Length 3m | ||
Sheath Material Polyvinyl Chloride PVC | ||
Connector 1 Gender Male | ||
Connector 1 M12 | ||
Connector 1 Number of Contacts 3 | ||
Connector 1 Orientation Right Angle | ||
Connector 2 Number of Contacts 3 | ||
Connector 2 Orientation Straight | ||
Connector 2 M12 | ||
Connector 2 Gender Female | ||
- COO (Country of Origin):
- US
The Phoenix Contact Sensor/actuator cable is an essential component designed for standard applications, providing reliable connectivity for sensors and actuators. This cable boasts a robust construction, featuring a yellow PVC outer sheath that enhances visibility and durability. It is equipped with a 3-position plug angled M12 connector on one end and a straight M12 socket on the other.
IP65 IP67 and IP68 rated for exceptional ingress protection
Optimised for a nominal voltage of 250 V AC and DC
Utilises high quality materials for longevity and reliability
Environmentally compliant with EU RoHS and REACH regulations
Optimised for a nominal voltage of 250 V AC and DC
Utilises high quality materials for longevity and reliability
Environmentally compliant with EU RoHS and REACH regulations
